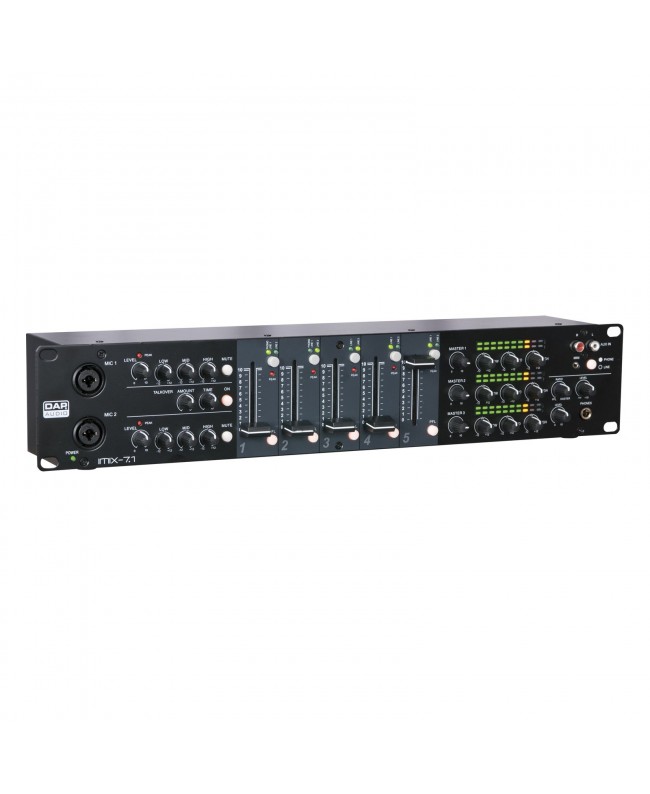

DAP IMIX-7.1

The DAP IMIX-7.1 is a 7-channel installation mixer with 3 master outputs. This allows you to make a good mix between the different inputs and the master volume. You also have the option to adjust the EQ settings for each output. In total you can connect two dynamic microphones and five audio devices, with the microphone inputs equipped with a 3-band EQ control and a talkover function that works on both channels.

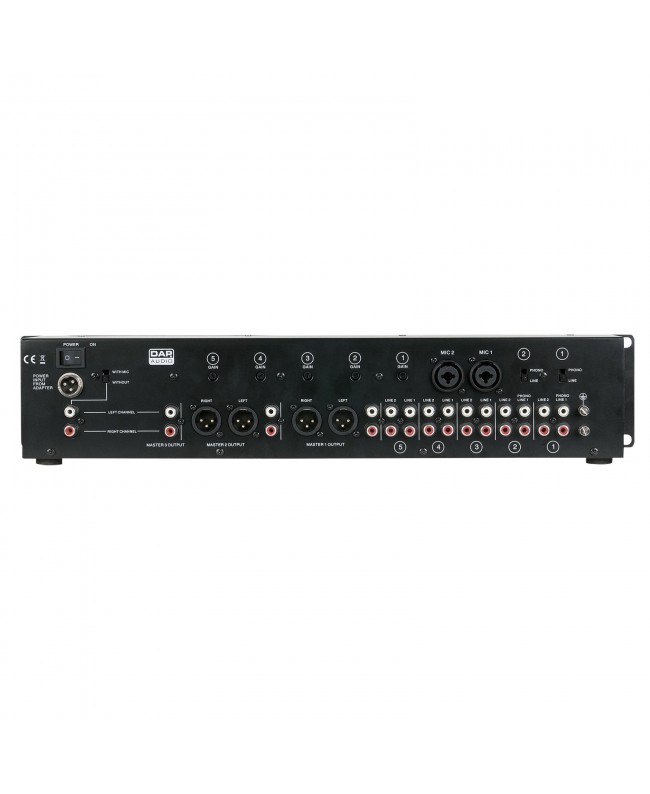

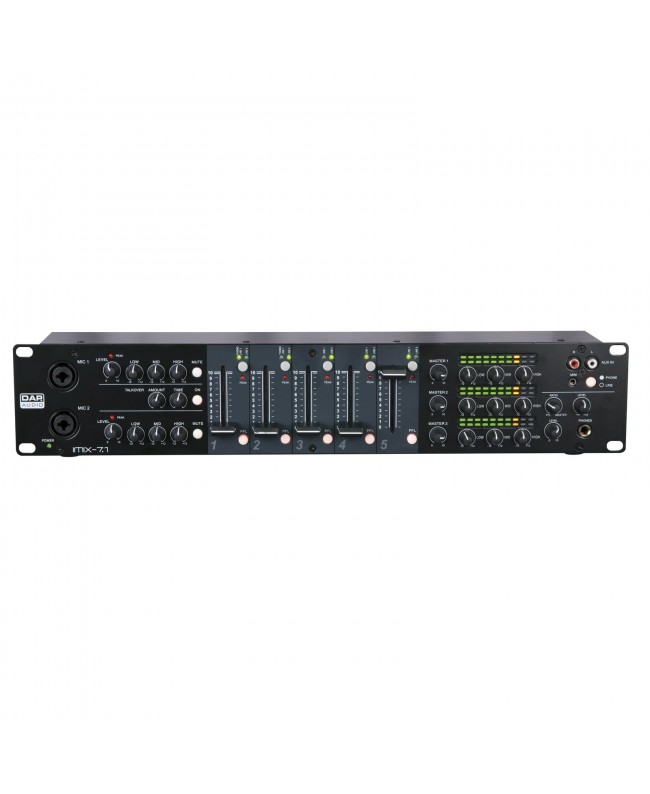

The gain settings for each input are located on the back. This prevents clipping by non-technical users. On the front there is a direct input for 2 microphones, 1 line source or a telephone/MP3 device with a special impedance switch.

• 19/2U installation mixer
• Suitable for restaurants, retail, public places and nightlife
• 2X mic input with volume and EQ control
• 5X line input with individual volume (faders) and gain control
• 3 Master outputs with volume control and EQ settings
