DAP EDGE EOA-1

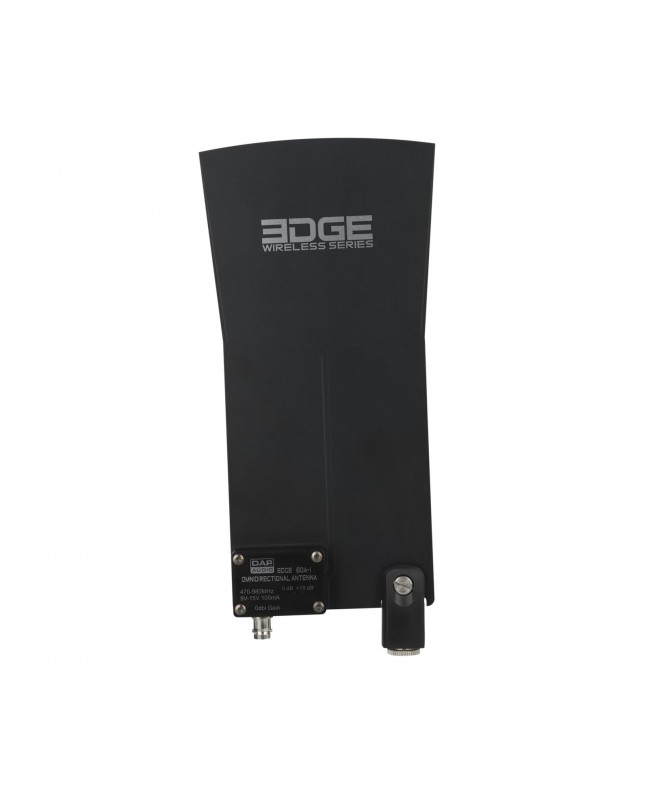

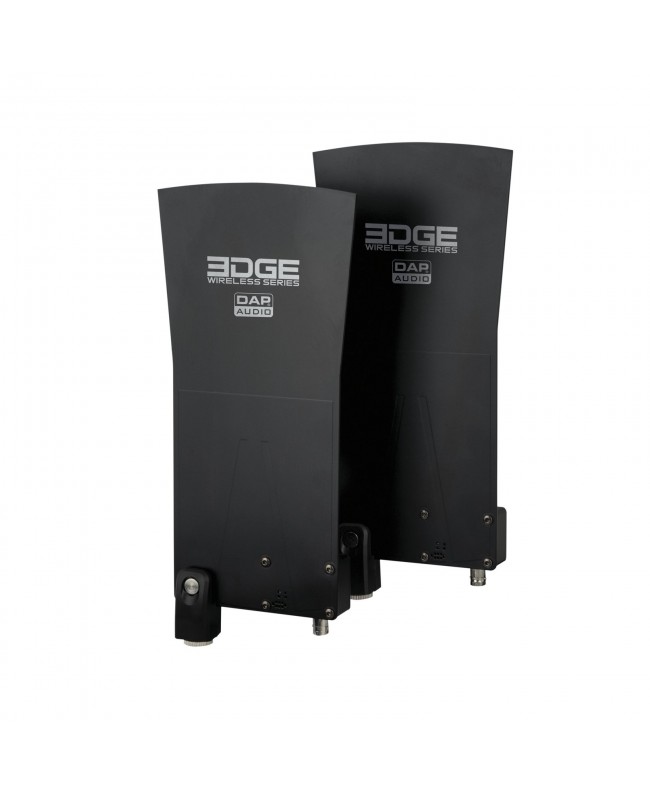

The DAP EDGE EOA-1 is a set of two omnidirectional antennas for placement in the centre of the area where wireless products are used. It is intended for use with the DAP EDGE series of wireless receivers, but can also be used for other wireless receivers that use the 470 - 980 MHz frequency band. The advantage of an external antenna is that it can be positioned elevated above the audience and/or performers for better reception and less interference. The DAP EDGE EOA-1 improves the signal strength by about 6 dB and improves reception for an interference-free experience.

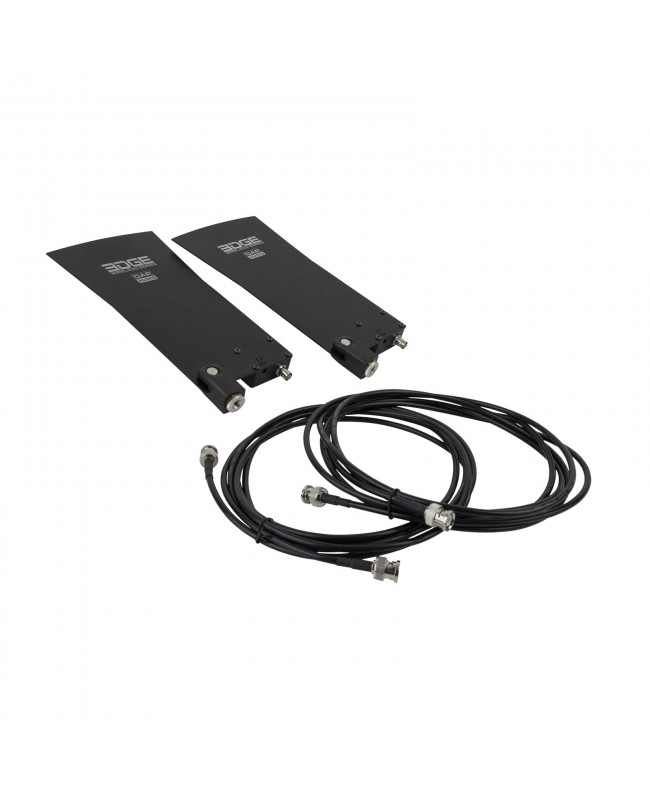

The EDGE EOA-1 comes with stand mount adapters, thread adapters, and 3-metre-long BNC cables.

  • 2 Antennas for DAP EDGE series
  • Powered by antenna distributor or DAP EDGE receiver
  • Microphone stand mount adapter
  • Omnidirectional pick-up pattern
  • BNC cables and thread adapters included
  • RF Antenna Outputs: 1
  • RF Antenna Output Connection: BNC
  • RF Receiver Antenna Output Voltage: 15 V
  • Wireless Audio Frequency Start: 470 MHz
  • Wireless Audio Frequency End: 980 MHz
  • Antenna Gain: 6 dBi
  • RF Gain (Minimum): 0 dB
  • RF Gain (Max.): 10 dB
  • Polar Pattern: Omni Directional
  • Height (mm): 257 mm
  • Width (mm): 26 mm
  • Length (mm): 129 mm
  • Material: Aluminium
  • Colour: Black
  • Weight: 0.3 kg
  • Thread: 3/8 / 5/8
  • Maximum Ambient Temperature: 50 °C
  • Minimum Ambient Temperature: -10 °C
  • Included Cables: BNC cable
  • Included Accessories: Thread adapter
