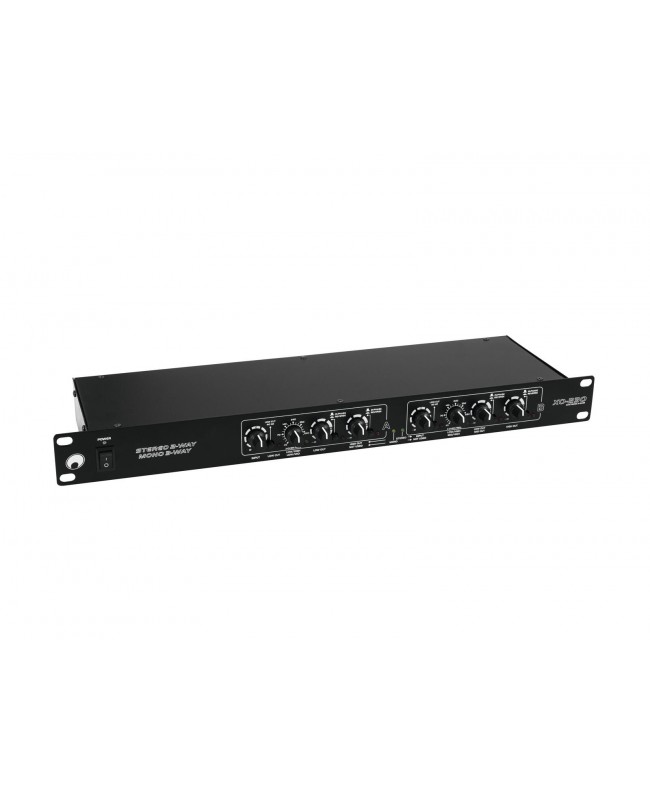

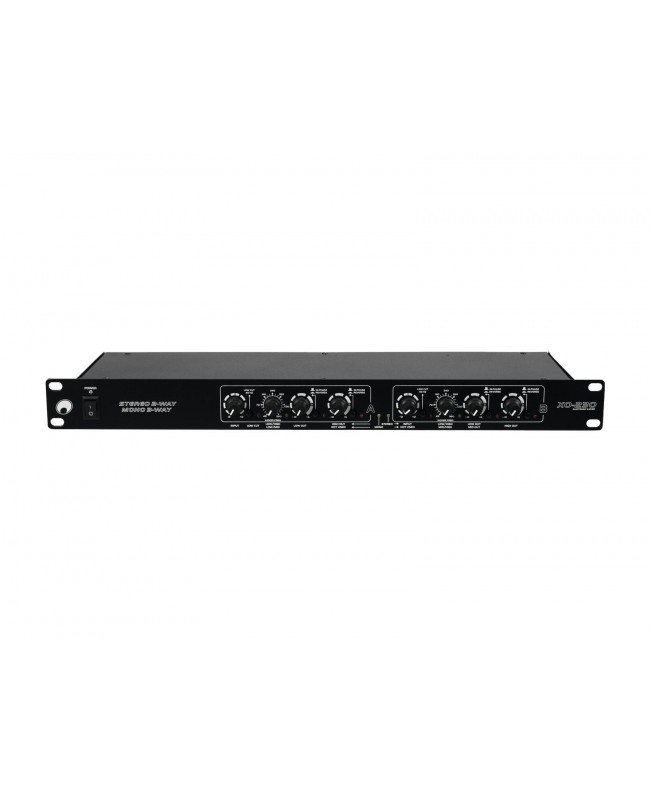

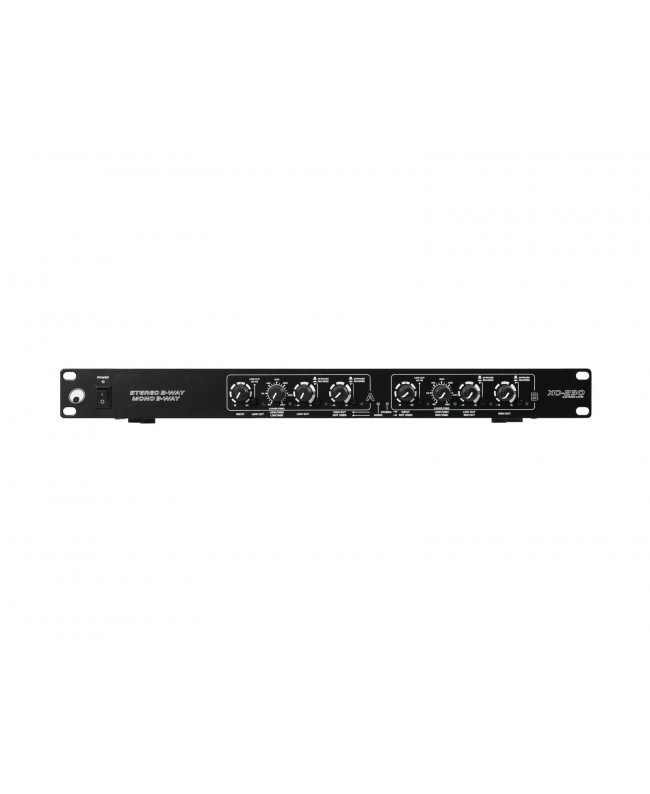

Omnitronic XO-230 Active Crossover

• 2-way or 3-way stereo operation
• Variable 24 dB per octave Linkwitz-Riley filters
• Crossover frequencies continuously adjustable between 45 Hz and 9.6 kHz
• Low frequency summed (subwoofer) output
• Individual output level controls for each frequency range
• Butterworth low-cut filter (12 dB/octave 40 Hz) to protect subwoofers
• X10 range switch on both channels
• Phase reverse switch on all outputs
• LED indicators for all important functions for easy status identification
• Balanced XLR inputs and outputs
• (19) 48.3 cm rack installation 1 U
• For application areas such as: Installation; clubs/dancing school; stage; homerecording and studios; band/rehearsal room

Scope of delivery

• 1 x controller
• 1 x user manual
• 1 x power cord

• Power supply: 230 V AC, 50 Hz
• Power consumption: 8 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• S/N ratio: 100 dB
• THD: 0.05 % at 1 kHz
• Impedance: Input: 25 kOhm , unbal., Input: 50 kOhm , bal., Output: 100 Ohm , unbal., Output: 200 Ohm , bal.
• Gain: Input: +- 12 dB, Output: - to + 6 dB
• Filter: Low cut: 40 Hz 12db/oct Butterworth
• Phase invert: Per output, switchable
• Crosstalk: 80 dB
• Control elements: Mode switch (2-way,stereo/3-way,mono), Phase reversal switch, multiplier switch
• Status LED: Power, low cut, mono, stereo, Phase reversal LED; multiplier LED

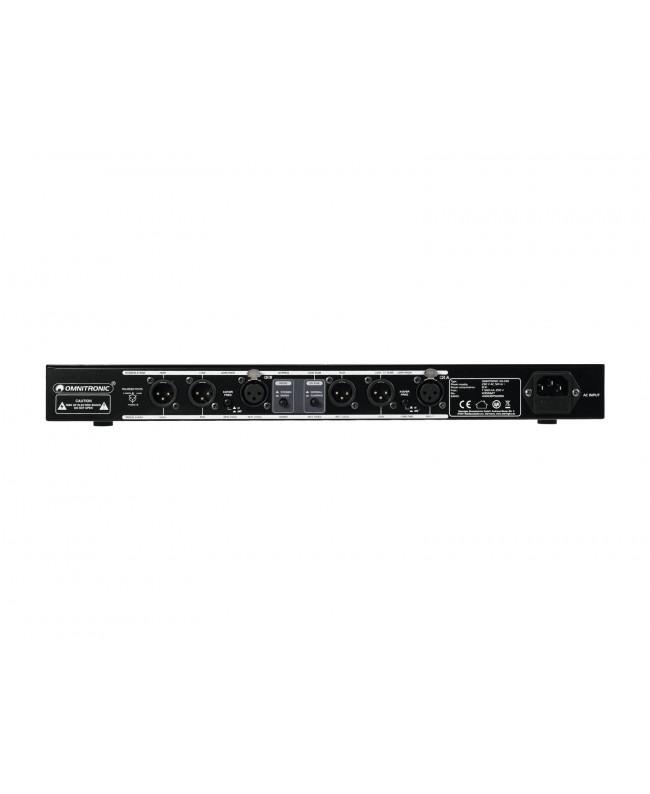

• Connections: Input: line via 2 x 3-pin XLR, Output: line via 4 x 3-pin XLR
• Crossover frequency: 45-9600 Hz, 24db/oct , Linkwitz-Riley
• Max. level: Input: +22 dBu, Output: +21 dBu
• Color: Black
• Housing design: (19) 48.3 cm rack installation 1 U
• Dimensions: Width: 48.3 cm, Depth: 15.2 cm, Height: 4.45 cm
• Weight: 1.87 kg
