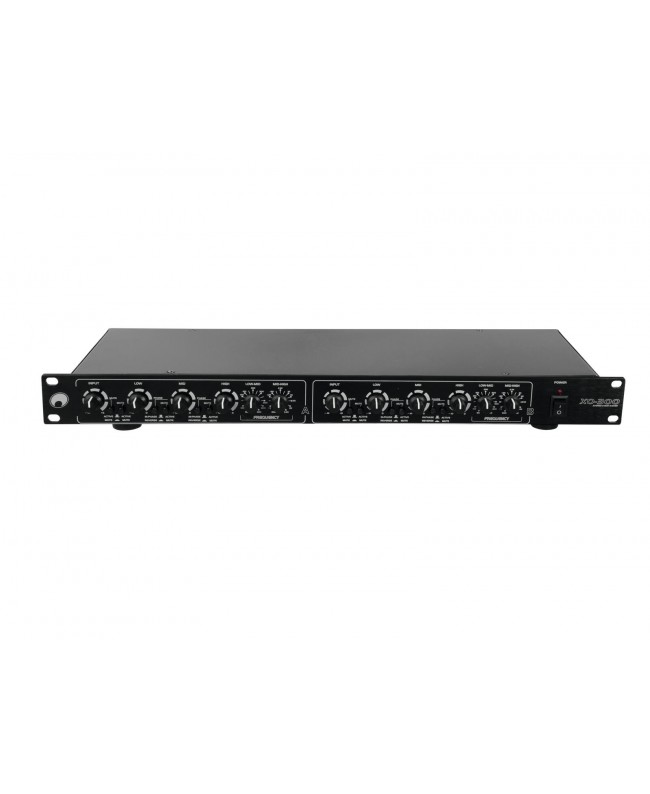

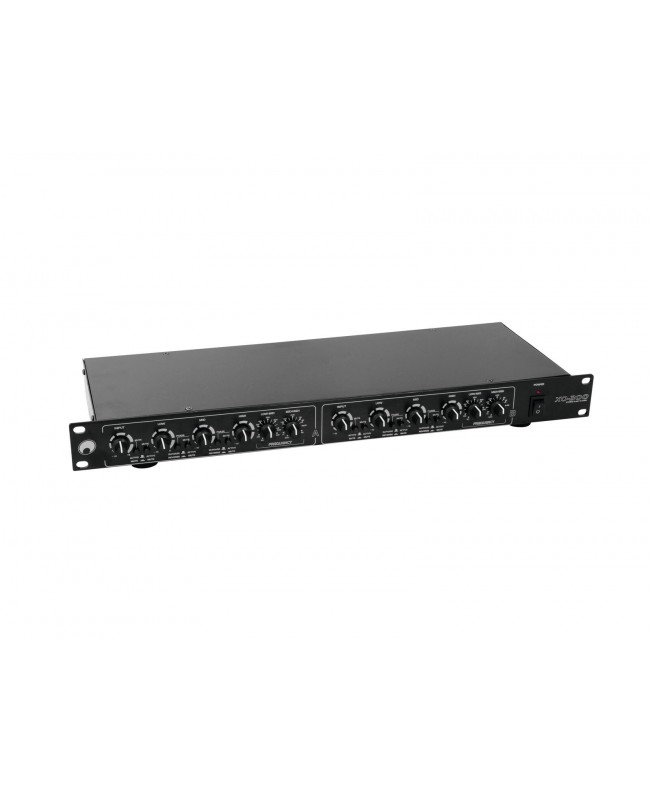

Omnitronic XO-300 Active Crossover

• 3-way stereo operation
• Variable 24 dB per octave Linkwitz-Riley filters
• Individual output level controls for each frequency range
• Continuously adjustable crossover frequencies low/mid and mid/high
• Individual muting for input signal and each frequency range
• CD horn EQ for smoother treble selectable
• Switchable low and mid phase
• Input level adjustable
• Balanced XLR inputs and outputs
• (19) 48.3 cm rack installation 1 U
• For application areas such as: Installation; clubs/dancing school; stage; homerecording and studios; band/rehearsal room

Scope of delivery

• 1 x device
• 1 x power cord
• 1 x user manual

• Power supply: 230 V AC, 50 Hz
• Power consumption: 5 W
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• S/N ratio: 100 dB
• THD: 0.05 % at 1 kHz
• Impedance: Input: 50 kOhm , bal., Input: 25 kOhm , unbal., Output: 200 Ohm , bal., Output: 100 Ohm , unbal.
• Gain: Input: - to + 6 dB, Output: - to + 0 dB
• Phase invert: Per output, switchable
• Crosstalk: 80 dB

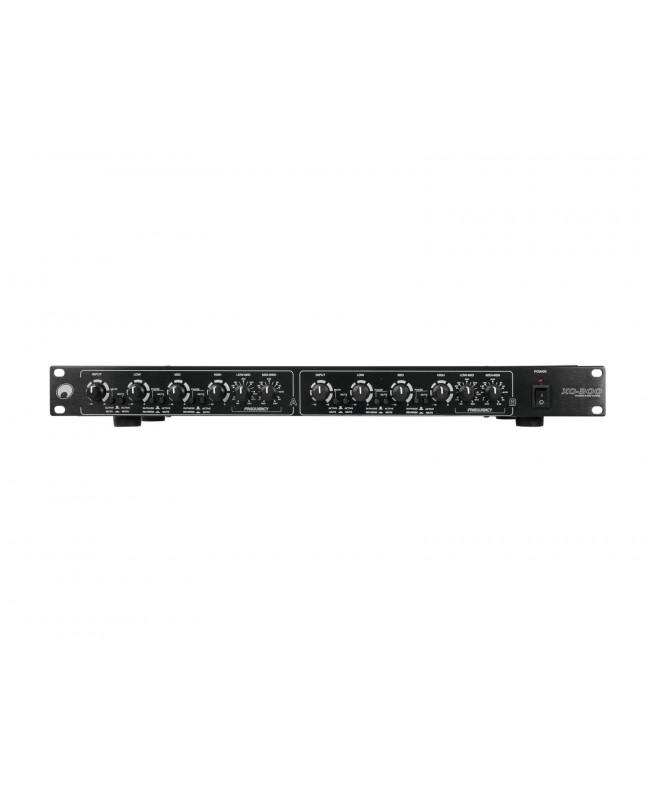

• Control elements: Level control per channel, crossover frequency, power switch, mute control
• Status LED: Power

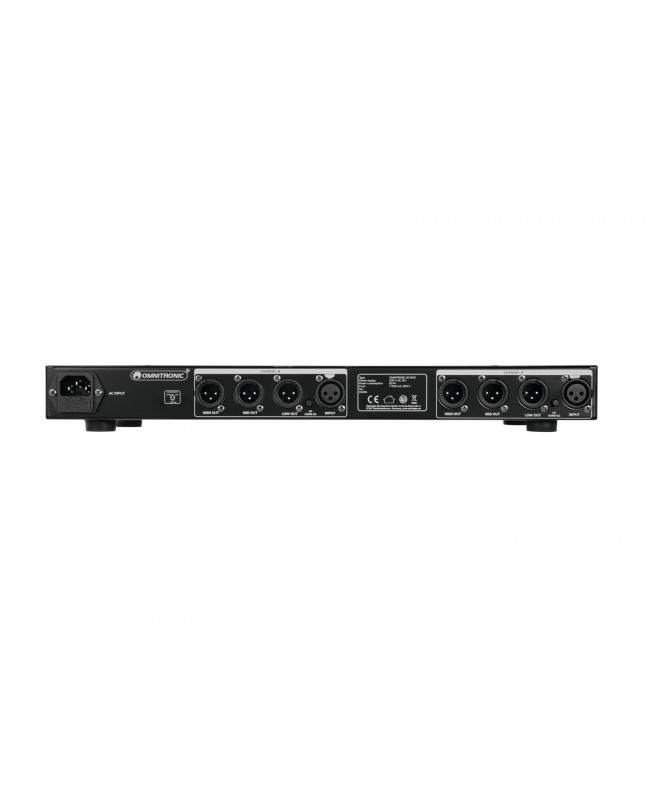

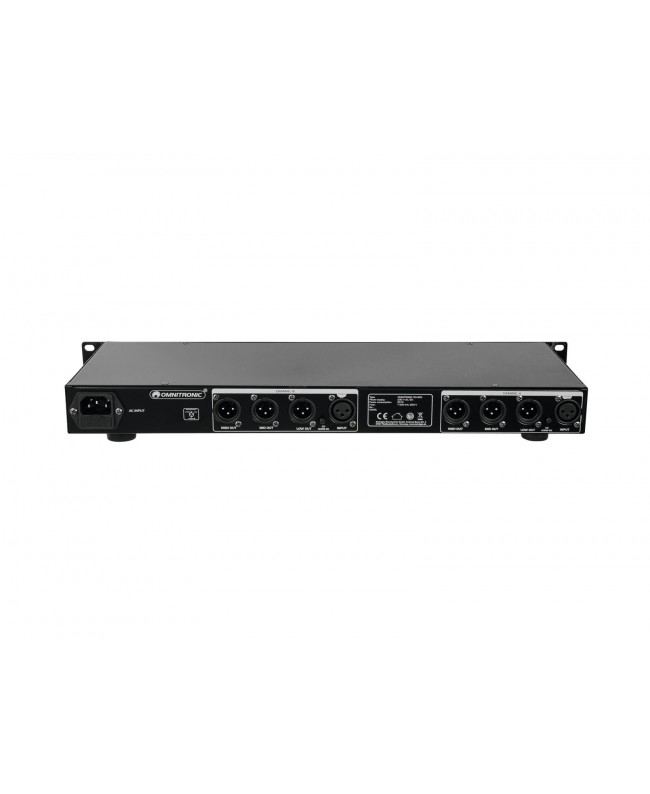

• Connections: Input: line via 2 x 3-pin XLR (F) mounting version, Output: line via 6 x 3-pin XLR (M) mounting version
• Crossover frequency: Mid/high 800-9200 Hz, 24db/oct , Linkwitz-Riley, Low/mid 80-920 Hz, 24db/oct , Linkwitz-Riley
• Max. level: Input: +22 dBu, Output: +22 dBu
• Material: Metal
• Color: Black
• Housing design: (19) 48.3 cm rack installation 1 U
• Dimensions: Width: 48.3 cm, Depth: 18.7 cm, Height: 4.45 cm
• Weight: 2.37 kg
