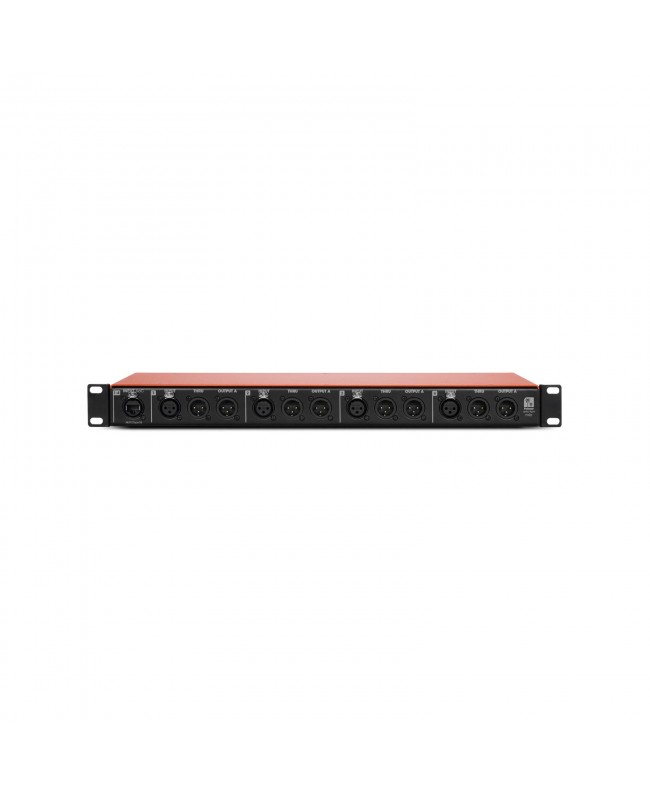

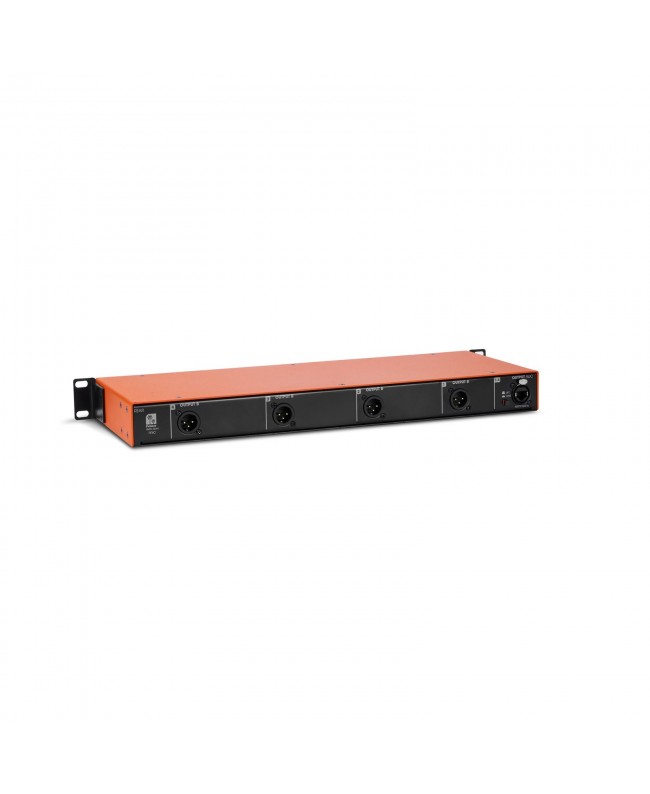

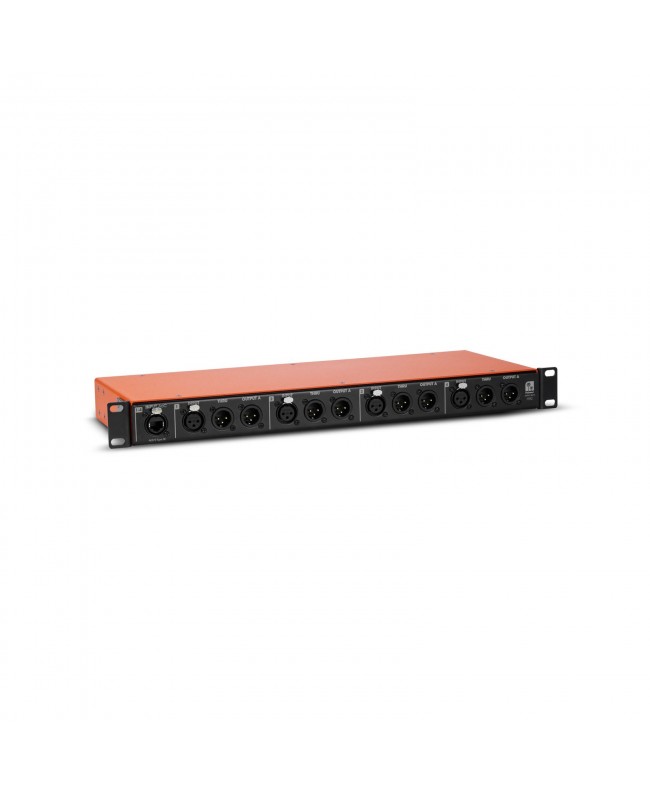

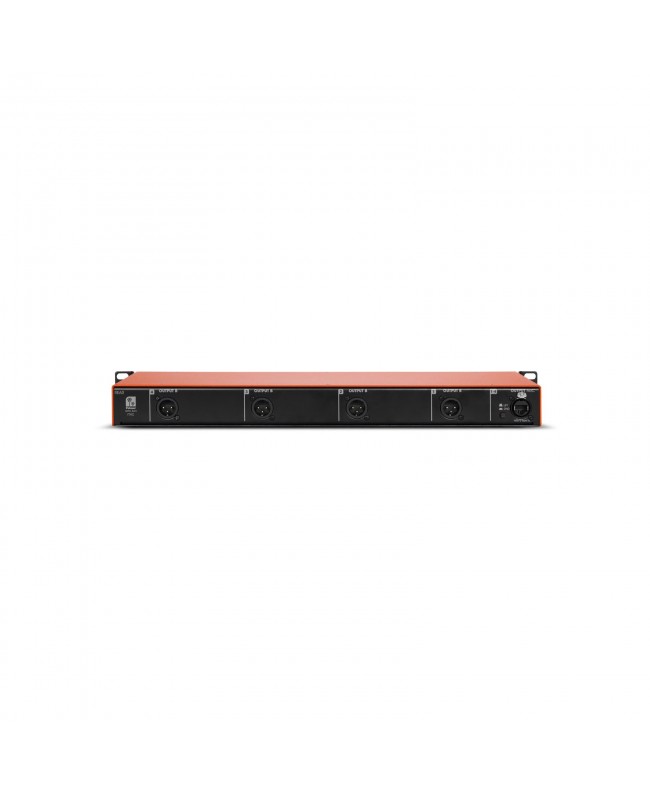

Palmer DELTA 4PM

DELTA 4PM is a passive 4-channel microphone splitter for professional audio applications and part of the Pamer Audio over Cat ecosystem. It allows reliable signal distribution from mic-level sources to multiple outputs without the need for external power.

Compliant with the common AES72 Type 5E standard, DELTA 4PM is fully compatible with such Audio-over-Cat systems and integrates easily into existing infrastructures.

Each of the four channels features one THRU output for phantom power passthrough, along with two galvanically isolated, transformer-balanced XLR outputs. The design includes impedance matching and resistor-decoupled isolation to ensure clean signal routing, eliminate ground loop noise, and preserve phantom power functionality. All 4 channels can also be routed via a single Cat cable, which is especially useful in fixed installations with limited or discreet cabling.

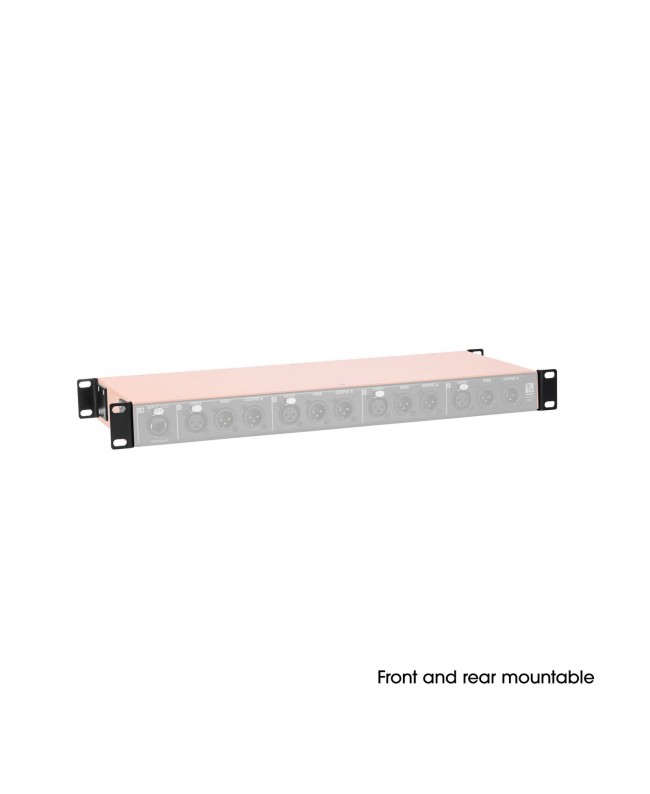

The rugged 1U 19-inch housing is built for standard rack mounting in both fixed installations and mobile environments. The reversible rack mounts allow convenient mounting from the front or rear for easier access to the most frequently used connections.

Ideal for live sound, installations, and recording setups where passive mic signal splitting, Audio-over-Cat integration, and uncompromising reliability are essential. DELTA 4PM delivers low-noise, unaltered audio with maximum operational safety. Engineered in Germany. Made in Europe.

• 4 independent microphone splitters in a solid 19 housing (1U)
• 3 balanced XLR outputs per channel (1x THRU output and 2x galvanically isolated)
• Balancing and impedance matching for microphone signals
• Audio over Cat In- and output (AES72 Type 5E) for forwarding all signals via a single Cat cable
• Passive passthrough (THRU) allows phantom power transmission
• Two transformer-isolated outputs per channel, each decoupled via resistors
• Designed for professional mic-level signals up to +4dBu
• Extremely fail-safe, no power supply required
• Pure and unaltered low-noise audio
• Engineered in Germany, Made in Europe
