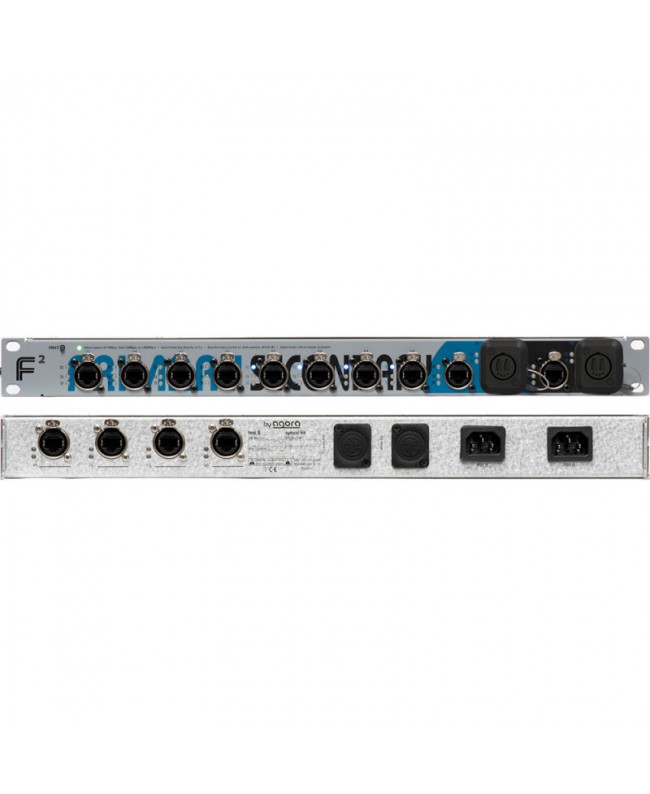

Agora F2.GM.R AV Switch
  • -26%

Agora F2.GM.R

€4,886.00
€3,633.00 -26%
Tax included
Lowest price within the last 30 days: €3,633.00

FAST 2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik with multi-mode (front panel) and internal redundant power supply

Out of Stock

Free shipping

Compare

wishlist

Agora F2.GM.R



FAST 2 with 2 x 1 Gbit transmit ports - F.O. dual optical. CON Neutrik - multi-mode (on the front panel) and internal redundant power supply.

  • Front panel: 8 x 10 Base-T /100 Base-TX / 1000 Base-T etherCON ports (4 primary / 4 secondary)2 x 10 Base-T /100 Base-TX / 1000 Base-T etherCON ports (1 primary / 1 secondary)2 x 10 Base-T /100 Base-TX / 1000 Base-T opticalCON DUAL ports (1 primary / 1 secondary)3 LEDs (STATUS, TRAFFIC, ID) on each etherCON port2 LEDs (STATUS and TRAFFIC) on each opticalCON port1 x multipurpose LED1 x configuration and navigation function switch
  • Rear panel: 4 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON ports (2 primary / 2 secondary)2 x power cord (redundant internal power supply option - 10/16 A - connectors IEC13 lock)
  • Software: Telnet protocol for up to 100 devices connectedOffline editor modeService and maintenance window
  • Motherboard: 1 x ARM9E: 800 MHz2 x 64 MB - DDR3 SDRAM 128 MB flash memoryDataflow: up to 2 x 14.9 MbpsSwitching capacity: 2 x 20 Gbps
  • Network: 99 x groups availableCapacity of 2 x 8 K MAC AddressIEEE 802.lp Oos
  • Power consumption: 100 - 127 VAC 3.2 A, 200 - 240 VAC 1.6 A
  • Power supply: 100 - 240 VAC 50/60 Hz
  • Idle power (1): 8 W
  • Maximum power rating (2): 17 W
  • Storage temperature / humidity: -40 to 70 °C / 10 - 90% without condensation
  • Operating temperature / humidity: 0 to 40 °C / 10 - 90% without condensation
  • Acoustic: without fan
  • Altitude: up to 3000 m
  • Dimensions (W x D x H): 40 x 48.26 x 4.36 mm
  • Weight (without options): 3.8 kg

AGO-F2.GM.R
