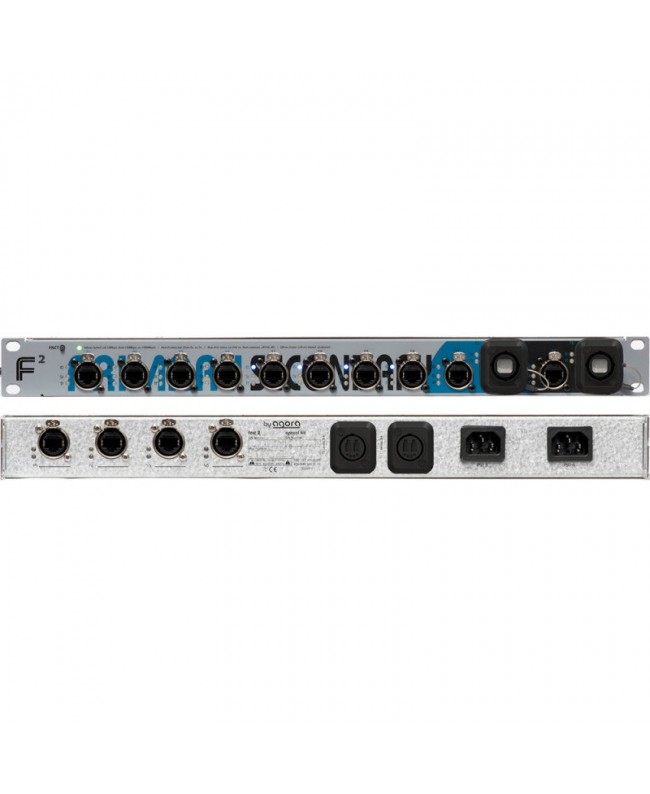

Agora F2.GMQ.R AV Switch
  • -26%
  • New

Agora F2.GMQ.R

€5,398.00
€4,015.00 -26%
Tax included
Lowest price within the last 30 days: €4,015.00

FAST 2 + 2 x transmit 1 Gbit ports - F.O. QUAD OC Neutrik with multi-mode (front panel), recovery of fiber 3/4 on the rear DUAL OC and internal redundant power supply

Out of Stock

Free shipping

Compare

wishlist

Agora F2.GMQ.R



FAST 2 with 2 x 1 Gbit transmit ports - F.O. QUAD optical. CON Neutrik - multi-mode (on the front panel), 3/4 fiber recovery on the rear (dual optical. CON) and internal redundant power supply.

  • Front panel: 8 x 10 Base-T /100 Base-TX / 1000 Base-T etherCON ports (4 primary / 4 secondary)
  • 2 X 10 Base-T /100 Base-TX / 1000 Base-T etherCON ports (1 primary / 1 secondary)
  • 2 X 10 Base-T /100 Base-TX / 1000 Base-T opticalCON QUAD ports (1 primary / 1 secondary)
  • 3 LEDs (STATUS, TRAFFIC, ID) on each etherCON port
  • 2 LEDs (STATUS and TRAFFIC) on each opticalCON port
  • 1 X multipurpose LED
  • 1 X configuration and navigation function switch
  • Rear panel: 4 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON ports (2 primary / 2 secondary)
  • 2 X 10 Base-T /100 Base-TX / 1000 Base-T opticalCON recovery of fiber 3/4 OC DUAL
  • 2 X power cord (redundant internal power supply option - 10/16 A - connectors IEC13 lock
  • Software: Telnet protocol for up to 100 devices connected
  • Offline editor mode
  • Service and maintenance window
  • Motherboard: l x ARM9E: 800 MHz
  • 2 X 64 MB- DDR3 SDRAM
  • 128 MB flash memory
  • Dataflow: up to 2 x 14.9 Mbps
  • Switching capacity: 2 x 20 Gbps
  • Network: 99 x groups available
  • Capacity of 2 x 8 K MAC Address
  • IEEE 802.lp Oos
  • Power consumption: 100 - 127 VAC 3.2 A, 200 - 240 VAC 1.6 A
  • Power supply: 100 - 240 VAC 50/60 Hz
  • Idle power (1): 8 W
  • Maximum power rating (2): 17 W
  • Storage temperature / humidity: -40 to 70 °C / 10 - 90% without condensation
  • Operating temperature / humidity: 0 to 40 °C / 10 - 90% without condensation
  • Acoustic: without fan
  • Altitude: Up to 3000 m
  • Size (W x D x H): 400 x 482.6 x 43.6 mm
  • Weight (without options): 3.8 kg

AGO-F2.GMQ.R
