Agora GMK2.XS.XS.HD AV Switch
  • -26%
  • New

Agora GMK2.XS.XS.HD

€11,840.00
€8,807.00 -26%
Tax included
Lowest price within the last 30 days: €8,807.00

GHOST MK2 + 2 x transmit 10 Gbps ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel) + H-DC card

Out of Stock

Free shipping

Compare

wishlist

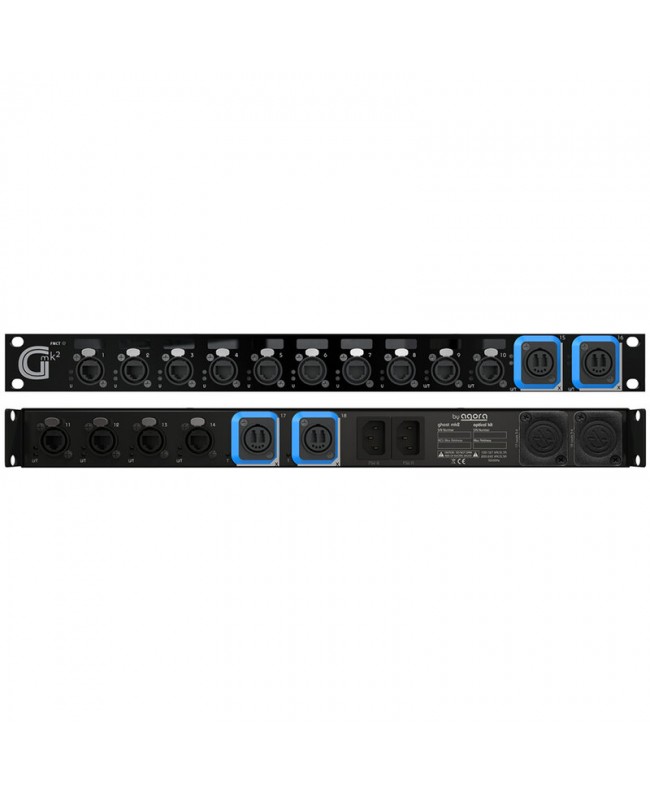

Agora GMK2.XS.XS.HD

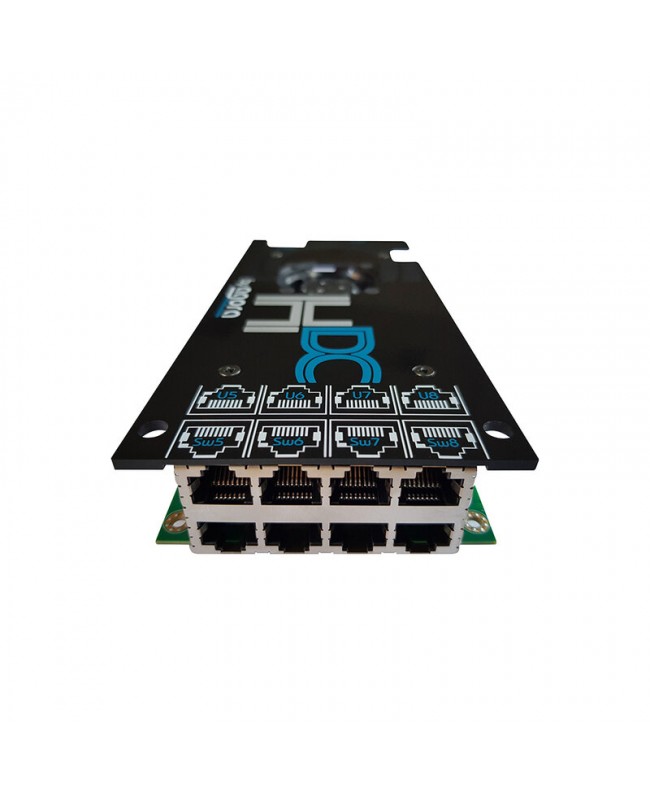

GHOST MK2 and #43; 2 x transmit 10 Gbps ports - F.O. DUAL optical. CON single-mode (front panel) and #43; 2 x transmit 10 Gbit ports - F.O. DUAL optical. CON single-mode (rear panel) and #43; H-DC card. Based on the last FPGA XZ7 technology, H-DC card is able to provide 4 independents physical hardware clocks on four G-mk2 user ports 1 to 4.

  • Front panel: 10 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON10 x 8 caracters LCD sceens2 x 1000 or 10,000 Mbps opticalCON DUAL ports2 LEDs (Status-Traffic, ID) on each port1 x configuration and navigation function switch
  • Rear panel: 4 x 10 Base-T / 100 Base-TX / 1000 Base T-etherCON ports2 x 1000 or 10,000 Mbps opticalCON DUAL ports2 x IEC power sockets (internal redundant power supply)
  • Software: SNMPv3 and SSH remote protocol Emulate Mode
  • Mother board: 1 x Marvell 98DXData flow : up to 95.23 MbpsSwitching capacity: 128 Gb/
  • Network: 250 x Groups available16000 MAC Address capacityIEEE 802.1p traffic priority
  • Size (W x D x H): 482.60 x 368 x 43.60 mm
  • Weight (without options): 1.7 kg
  • Power consumption: 100 - 127 VAC 0.6 A, 200 - 240 VAC 0.4 A
  • Power supply: 100 - 240 VAC 50/60 Hz
  • Idle power*: 19.5 W
  • Maximum Power rating**: 26.6 W
  • Thermal dispersion (without options): 80.36 BTU/h (110 V 60 Hz)
  • Storage temp. / humidity: -40 °C -70 °C / 5-90% without condensation
  • Operating temp. / humidity: 0 °C - 45 °C / 10-90% without condensation
  • Altitude: Up to 3 km (10,000 ft)
  • Operating noise: Without FAN
  • Package includes: 1 x GHOST MK2 engine2 x power cord IEC13 Lock

AGO-GMK2.XS.XS.HD
