Battery operation up to 9h depending on program used
Integrated automatic charging of the battery and status indicator
6 LEDs 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
Dimmer; color blend; color fade
Wash effect; strobe effect
9 integrated show programs
Direct color selection for 19 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; DMX; QuickDMX; IR remote control; wireless Master/slave function
Flicker-free
DMX fail mode (blackout; hold; full on; static; auto)
With a beam angle of 17°
Variable color temperature 2700 K - 8000 K
With mounting bracket; with bracket for floor use

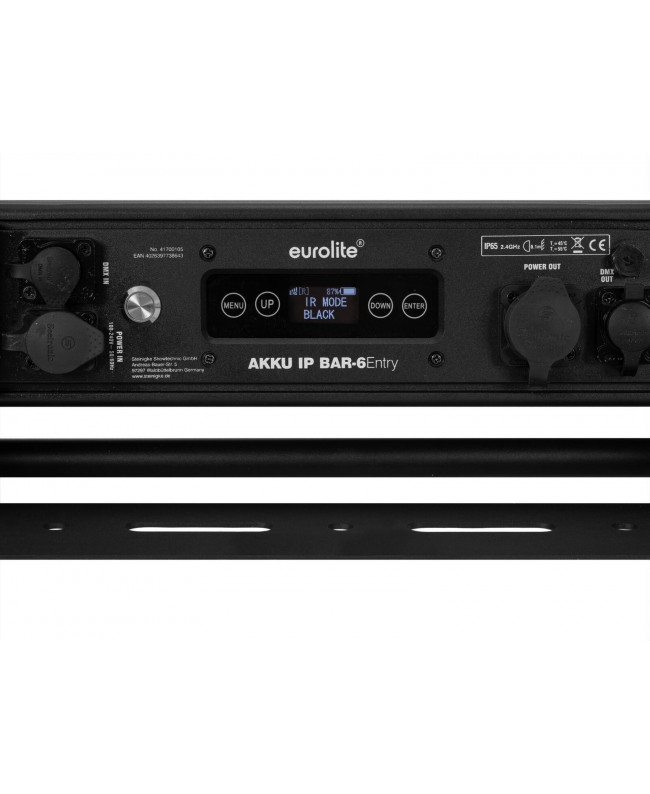

LCD display
Mains input and output for power linking up to 8 units
Suitable for outdoor use IP65
With pressure compensation membrane
For application areas such as: Architecture; clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; party room; restaurants, bars and hotels
Silent operation
Application possibility: Standing; suspended
Scope of delivery
1 x spotlight
1 x power cord
1 x user manual

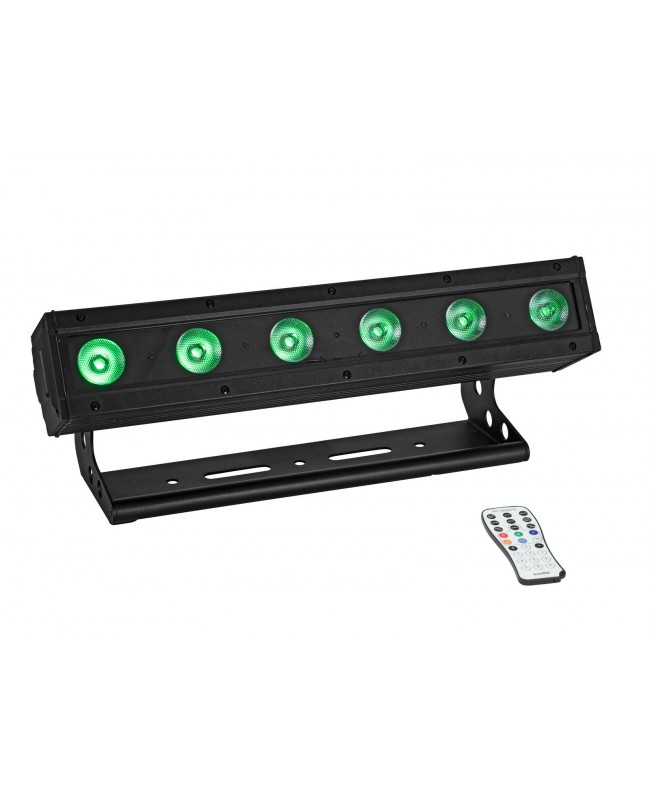

1 x remote control
1 x battery
Power supply: 100-240 V AC, 50/60 Hz
IP classification: IP65
Protection class: Protection class I

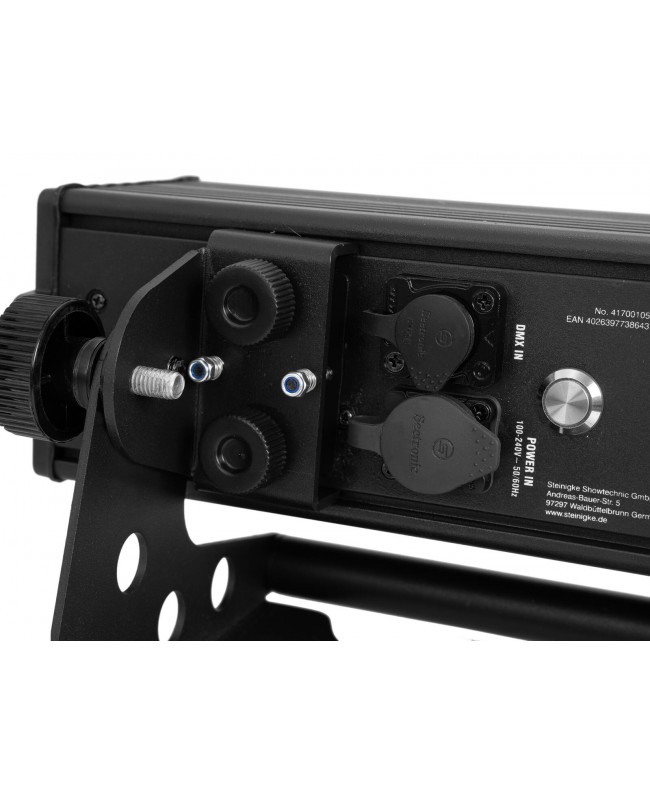

Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug, Battery/battery pack built-in
Cable construction: 3 x 1.0 mm² H05RN-F
Power output: IP T-Con (F) mounting version
Battery pack type: 1 x lithium ion 22.2 V, 2200 mAh, 48.84 Wh
Battery pack: Battery operation up to 9h depending on program used, Recharging time 3h
Lamp type: LED lamp
LED type: 6 x 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
Flash rate: 0.5 - 23 Hz
DMX channels: 3; 4; 5; 6; 10
DMX input: 3-pin XLR (M) mounting version IP
DMX output: 3-pin XLR (F) mounting version IP
Cooling: Passive convection cooling
Control: Stand-alone; DMX; QuickDMX; IR remote control; wireless Master/slave function
Projection: Flicker-free
PWM frequency: 5000 Hz
Carrier frequency: 2.4 GHz
Modulation: GFSK
DMX fail mode: Blackout; hold; full on; static; auto
Beam angle: 17°
Beam angle (1/2 peak): 17°
Beam angle (1/10 peak): 34°
Color temperature: 2700K - 8000K adjustable
Housing color: Black
Attachment system: Mounting bracket, Bracket for floor use
Display type: LCD display
Diameter mounting holes: Ø11mm
Material: Aluminum casting
Dimensions: Length: 51.0 cm, Depth: 16.0 cm, Height: 14.5 cm
Weight: 5.30 kg
Noise classification: Class 0 (no noise at all)
Battery: 1 x button cell 3.0 V CR2032 lithium manganese built-in
Special product: Not designed for household room illumination
