Battery operation up to 16h depending on program used
Integrated automatic charging of the battery and status indicator
3 LEDs 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix) LEDs controlled separately
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) with adjustable response
Strobe effect; fan effect; uplight effect
9 integrated show programs
Direct color selection for 15 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; master/slave function; sound to light via microphone; IR remote control; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light'J; Light Captain; EASY SHOW 1; EASY SHOW 3; EASY SHOW 2; Colorchief
Flicker-free
Space-saving construction
With a beam angle of 13°
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; party room; restaurants, bars and hotels; rental
Silent operation
Application possibility: Standing; suspended
Scope of delivery
1 x device
1 x power cord
1 x user manual

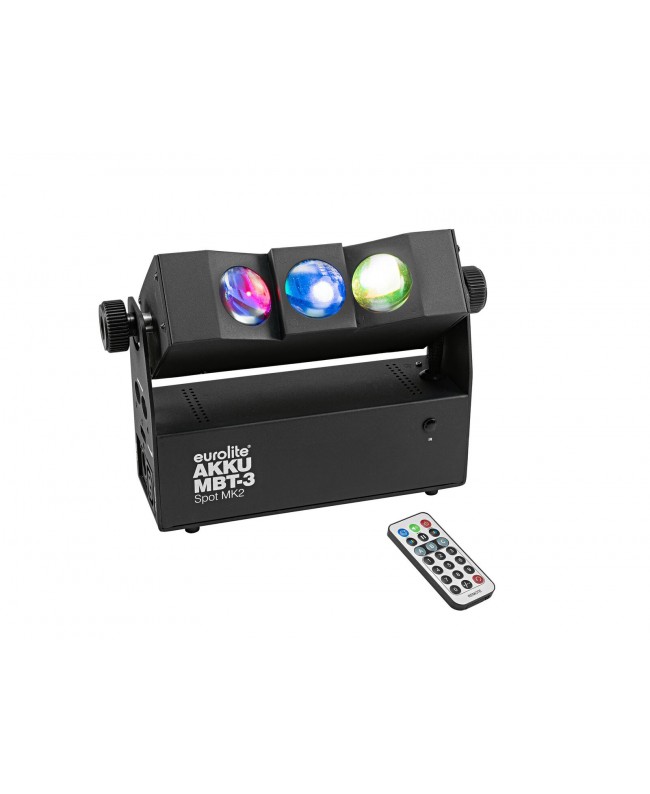

1 x remote control
1 x battery
Power supply: 100-240 V AC, 50/60 Hz
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length: 1.5 m
Power output: IEC connector (F) mounting version
Fuse: 5 x 20 mm, T 1.6 A fuse replaceable
Battery pack type: 1 x lithium ion 14.8 V, 6600 mAh, 97.68 Wh
Battery pack: Battery operation up to 16h depending on program used, Recharging time 4h
Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
Lamp type: LED lamp
LED type: 3 x 8 W SMD 9080 4in1 QCL RGBW (homogenous color mix)
Inclination angle: 180 °
Flash rate: 0 - 25 Hz
DMX channels: 3; 4; 8; 12; 16
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; master/slave function; sound to light via microphone; IR remote control; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in: Light'J; Light Captain; EASY SHOW 1; EASY SHOW 3; EASY SHOW 2; Colorchief
Projection: Flicker-free
Setup: Space-saving construction
Beam angle: 13°
Beam angle (1/2 peak): 13°
Housing color: Black
Display type: 4 digit 7-segment LED display
Dimensions: Length: 30.5 cm, Width: 9.5 cm, Height: 22 cm
Weight: 4.15 kg
Noise classification: Class 0 (no noise at all)
Special product: Not designed for household room illumination
