Integrated QuickDMX transceiver for wireless DMX control
Cordless, flexible and versatile
Battery operation up to 9h depending on program used
Integrated automatic charging of the battery and status indicator
4 LEDs 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
Dimmer electronic; Dimmer speed (step response) adjustable; color fade adjustable speed; color change adjustable speed; white balance adjustable; color blend adjustable; frost filter; color selection manual; program selection manual; pulse-width modulation; Energy-saving mode; Emergency lighting function in case of power failure
Multi beam effect; spot effect; wash effect; strobe effect
36 integrated show programs
Direct color selection for 15 preset colors
The device is cooled by passive convection cooling
Control via IR remote control; QuickDMX; DMX; stand-alone; sound to light via microphone; wireless Master/slave function; RDM
Preprogrammed in Light Captain; Colorchief
Flicker-free
QuickDMX: operating range up to 600m in the open air
Up to 6 transmitters can be operated in parallel without interference
DMX fail mode (blackout; hold; static; full on)
With a beam angle of 7°
With bracket for floor use
Monochrome OLED display
Display of the remaining battery life for the current setting
Charge status indicator
Mains input and output for power linking up to 8 units
With a KENSINGTON LOCK theft protection
For application areas such as: Decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; rental; advertisement/Shop window
Silent operation
Application possibility: Standing; suspended
3 buttons on the remote control for saving your own settings
Scope of delivery
1 x spotlight
1 x user manual
1 x declaration of conformity
1 x power cord

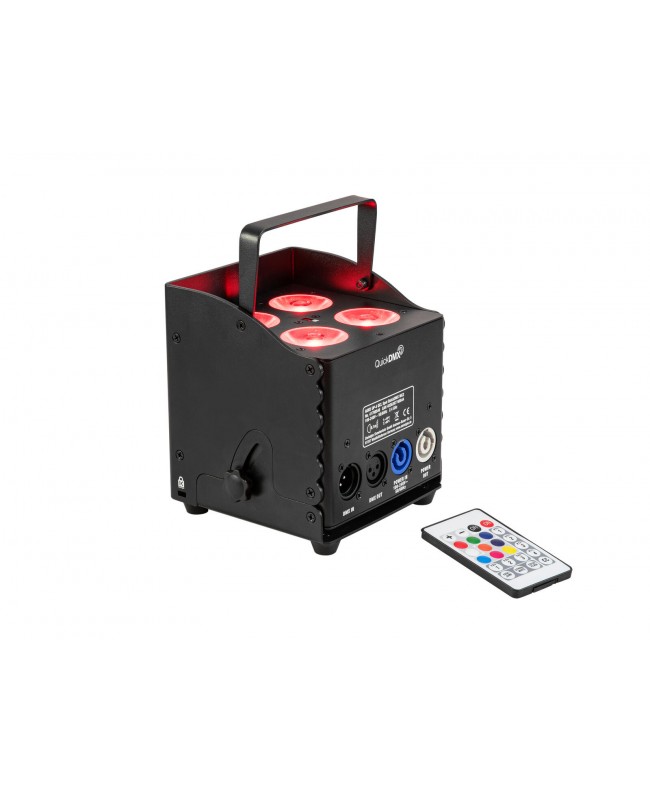

1 x remote control
1 x battery
1 x frost filter
1 x knurled screw
Power supply: 100-240 V AC, 50/60 Hz
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction: 3 x 1.0 mm² H05VV-F
Power output: P-Con (gray), mounting version
Battery pack type: 1 x lithium ion 14.8 V, 6600 mAh, 97.68 Wh
Battery pack: Battery operation up to 9h depending on program used, Recharging time 3h
Lamp type: LED lamp
LED type: 4 x 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
Flash rate: 27 Hz
DMX channels: 3; 4; 6; 8; 11
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: IR remote control; QuickDMX; DMX; stand-alone; sound to light via microphone; wireless Master/slave function; RDM
Preprogrammed in: Light Captain; Colorchief
Projection: Flicker-free
PWM frequency: 3000 Hz
Range: QuickDMX: range up to 600m in the open air
Carrier frequency: 2.4 GHz
Parallel mode: Max. 6 transmitter
Modulation: GFSK
DMX fail mode: Blackout; hold; static; full on
Beam angle: 7°
Beam angle (1/2 peak): 7°, Frost filter 20°
Beam angle (1/10 peak): 18°, Frost filter 42°
Attachment system: Bracket for floor use

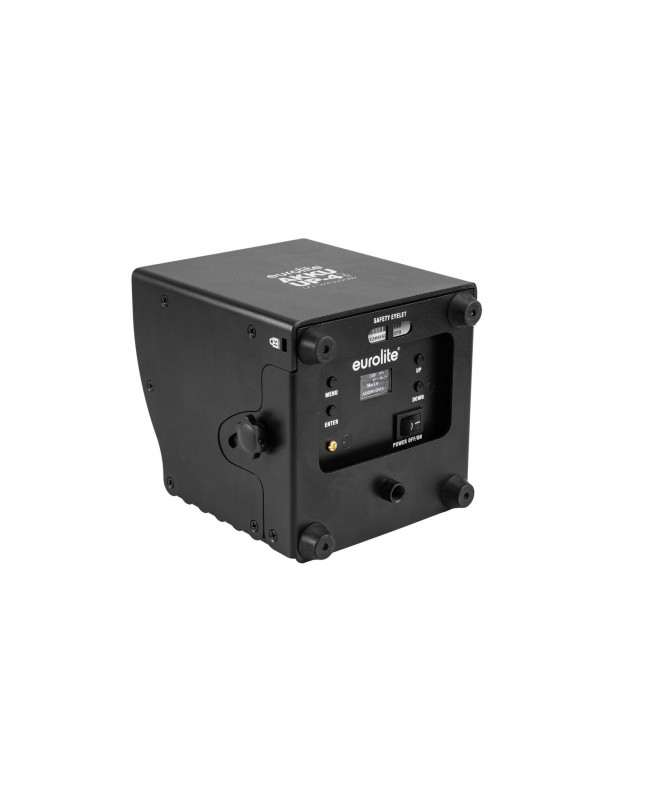

Display type: Monochrome OLED display
Display: Battery runtime calculation , charge status indicator
Material: Metal, painted
Theft protection: KENSINGTON LOCK
Dimensions: Length: 15.4 cm, Width: 13.3 cm, Height: 15.8 cm
Weight: 2.83 kg
Noise classification: Class 0 (no noise at all)
Battery: 1 x button cell 3.0 V CR2032 lithium manganese built-in
Special product: Not designed for household room illumination
