Omnitronic Set WAMS-65BT + Battery

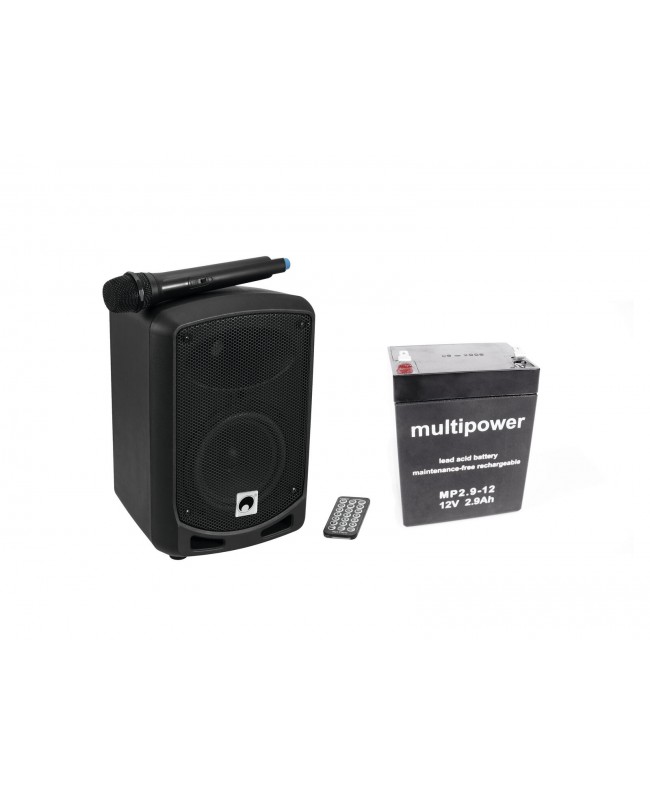

Scope of delivery

1 x OMNITRONIC WAMS-65BT Wireless PA System

• 1 x device
• 1 x power cord
• 1 x microphone
• 1 x remote control
• 1 x user manual
• 1 x declaration of conformity

1 x Akku 12V/2900mAh WAMS-05 / WAMS-65

• 1 x device

• Weight: 4.60 kg
• Power supply: 100-240 V AC, 50/60 Hz, Or, 12V DC
• Power consumption: 60 W
• IP classification: IP20
• Protection class: Protection class I
• Output power: 40 W RMS
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided), Battery/battery pack (not included)
• Frequency range: 62 - 18000 Hz
• THD: 0.5 % at 1 kHz
• Cooling: Passive convection cooling
• Frequency band: UHF 863 - 865 MHz
• Carrier frequency: 865 MHz
• Frequency stability: +- 0.005 %
• Frequency selection: Fixed frequencies
• Housing color: Black
• Attachment system: Flange: Ø 35mm
• Circuitry: Class D

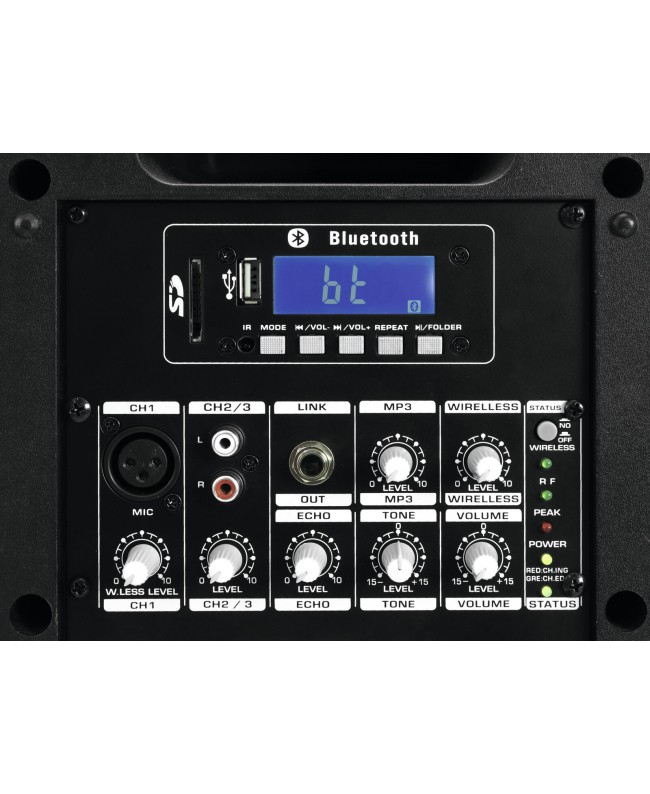

• Control elements: Echo effect control, audio player
• Status LED: Power, peak, ON AIR, signal, charge status indicator
• Connections: Input: microphone via 1 x 3-pin XLR, Input: line via 1 x stereo RCA, Output: line via 1 x 6.3 mm plug (unbal.)
• Channels: Microphon chanal: 1 x mono via XLR, channel control via rotary dial, Input chanel: 1 x stereo via RCA, channel control via rotary dial, Input chanel: 1 x stereo via audio player, channel control via rotary dial, Input chanel: 1 x mono via radio, channel control via rotary dial, Master output: 1 x mono, channel control via rotary dial, tone control EQ
• Speaker: 1 x woofer 6.5, 1 x tweeter 1
• Type of speaker: Compact cabinet speaker; wireless PA system
• Type of construction: Vented
• Carrying handle: 1 pc/pcs
• Material: ABS Acrylonitrile butadiene styrene
• Color: Black
• Dimensions: Width: 23.5 cm, Depth: 22 cm, Height: 35 cm
• Weight: 4.15 kg
• Power supply: 3V DC
• Power connection: Battery/battery pack
• Capsule type: Dynamic
• Polar pattern: Cardioid
• Battery: 2 x Mignon (AA) (not included)
• Range: Range up to 30m
• RF power output: 10 mW
• Modulation: FM
• Switch: On/off/mute switch
• Material: Plastic
• Dimensions: Length: 26 cm, Diameter: Ø 4 cm
• Weight: 0.115 kg
• Control: Bluetooth; IR remote control
• Bluetooth device name: Omnitronic
• Audio player: USB + SD + Bluetooth
• Range: Bluetooth: range up to 10m
• Frequency band: 2.4 GHz
• Display type: 4 digit 7-segment LED display
• Music format: MP3, WAV
• Available storage media: USB devices/SD cards max. 32GB (FAT 32)
• Power supply: 3V DC
• Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
• Range: Range up to 10m
• Battery pack type: 1 x lead 12 V, 2900 mAh,
• Battery pack: Battery operation up to 4h, Recharging time 4h
• Weight: 1.094 kg
