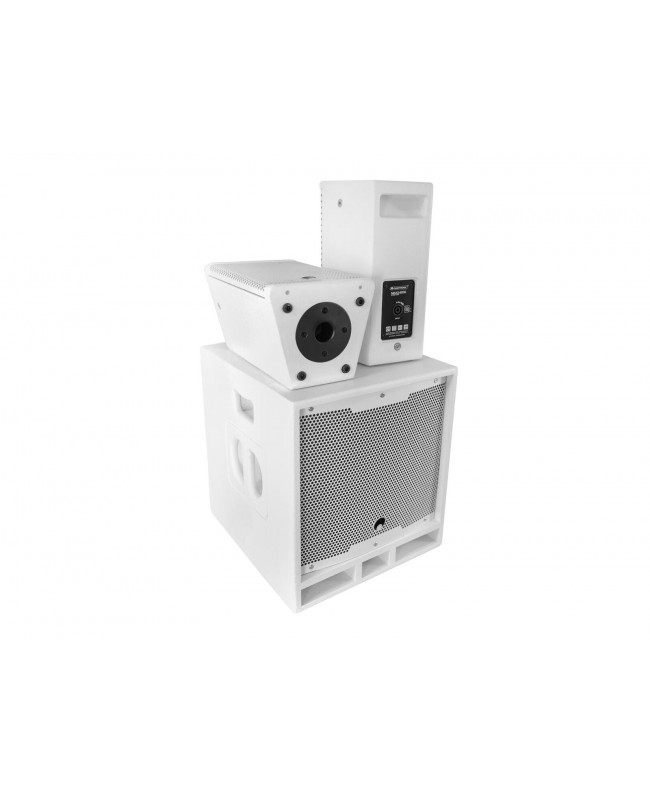

Omnitronic MAXX-1206DSP

Scope of delivery

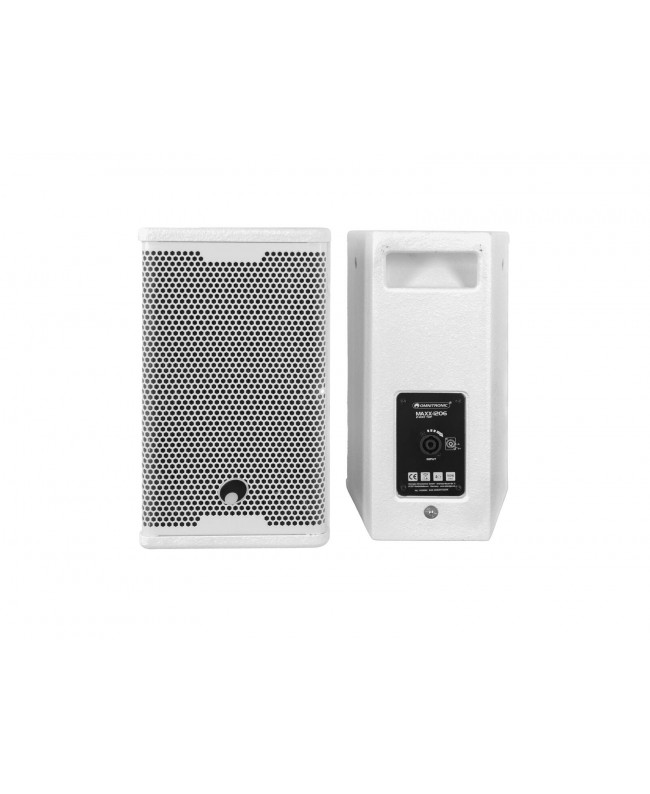

1 x OMNITRONIC MAXX-1206 2-way Top 6.5 2x white

• 2 x top
• 2 x speaker cable

1 x OMNITRONIC MAXX-1206DSP 2.1 Active Subwoofer 12 white

• 1 x bass
• 1 x power cord

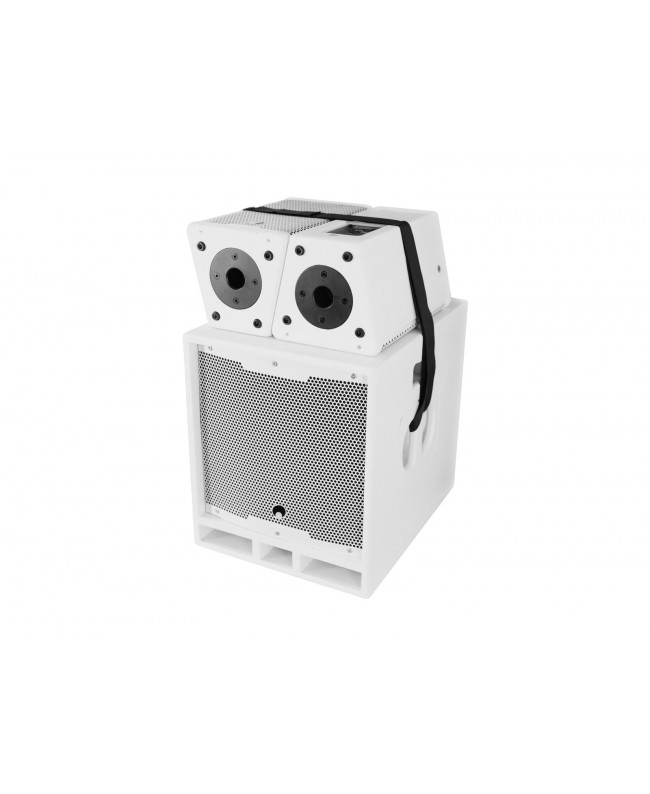

• 1 x strap
• 1 x user manual
• 1 x declaration of conformity

• Weight: 34.35 kg
• Power: Program: 200W, Rated: 100W RMS
• Frequency range: 100 - 17000 Hz
• Sensitivity: 91 dB
• Max. SPL: 115 dB
• Dispersion angle: 90° x 60°
• Impedance: 4 ohms
• Attachment system: Flange: Ø 35mm
• Flying points: 3 x M8 thread
• Connections: Input: speaker via 1 x speaker built-in socket (F)

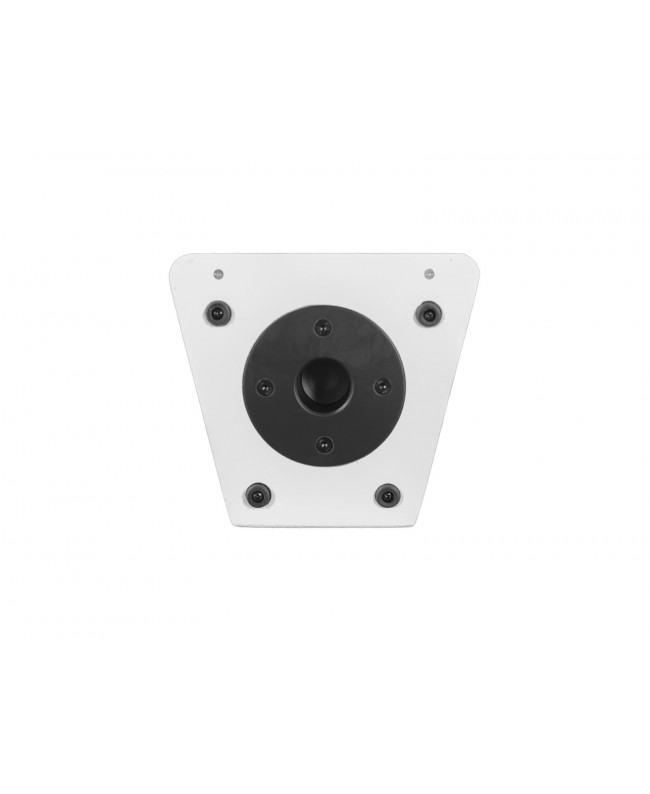

• Speaker: 1 x woofer 6.5, Basket material: steel, Conematerial: cardboard/paper, 1 x compression tweeter highs 1
• Type of speaker: Compact cabinet speaker
• Carrying handle: 1 pc/pcs
• Material: MDF (medium density fiberboard), 16 mm
• Color: White, textured coating, painted
• Dimensions: Width: 20.4 cm, Depth: 19 cm, Height: 36.2 cm
• Weight: 12.70 kg
• Power supply: 230 V AC, 50 Hz
• Power consumption: 500 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug included
• Device fuse: 5 x 20 mm, T 4 A fuse replaceable
• Power: Rated: 250W RMS LF, Rated: 2x 100W RMS HF
• Frequency range: 38 - 250 Hz bass, 100 - 17000 Hz top
• Sensitivity: 97 dB
• Max. SPL: 119 dB
• DSP: Digital signal processor
• DSP presets: FLAT; DJ; LIVE
• Control: Bluetooth
• Bluetooth device name: OMNITRONIC MAXX1206
• Attachment system: Flange: M20 thread
• Circuitry: Class D

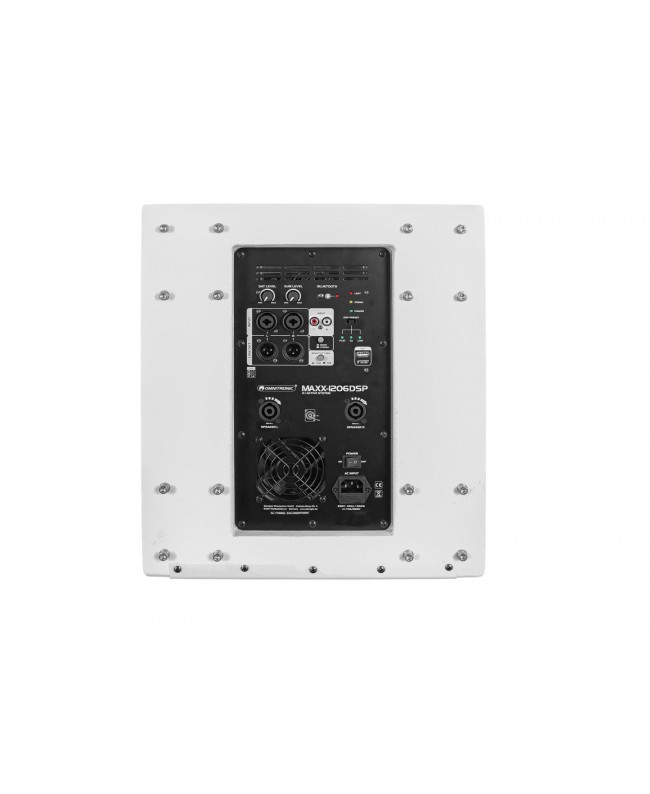

• Control elements: Power switch, level control, Input sensitivity switch, connect, tone control
• Controls: Limiter
• Status LED: Power, signal, limit, pairing, DSP presets
• Connections: Input: line via 1 x stereo RCA, Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 2 x 3-pin XLR (M) mounting version, Output: speaker via 2 x speaker built-in socket (F)
• Input channels: 1 x stereo via XLR or RCA or bluetooth, channel control via rotary dial
• Speaker: 1 x woofer 12 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper
• USB port: 1 x type C, 2 A
• Type of speaker: Subwoofer
• Type of construction: Vented
• Transport aid: Rubber feet, Wheels optional
• Material: MDF (medium density fiberboard), 16 mm
• Color: White, textured coating, painted
• Dimensions: Width: 38.4 cm, Depth: 47.4 cm, Height: 45.8 cm
• Weight: 19.50 kg
