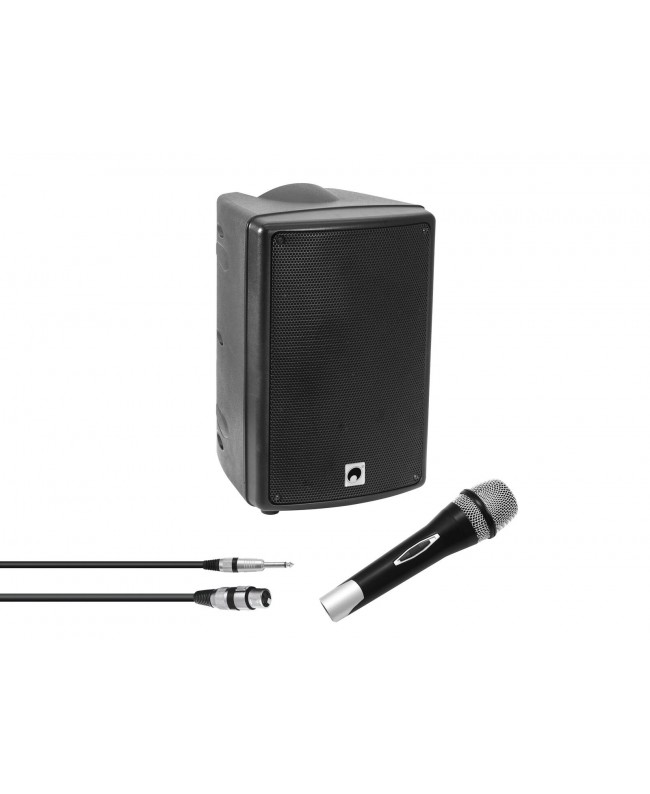

Omnitronic Set WMAS-08BT MK2 Wireless PA System + Partymic-1

Scope of delivery

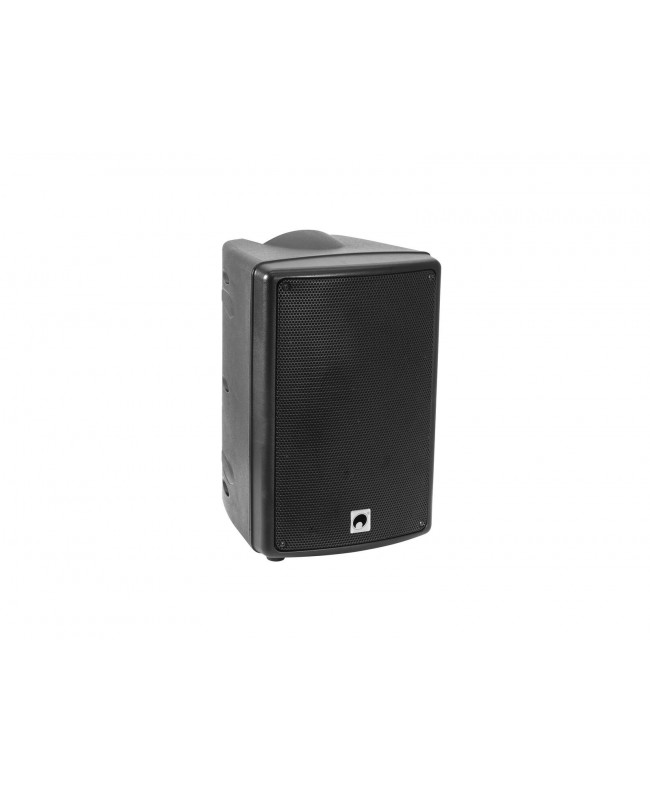

1 x OMNITRONIC WAMS-08BT MK2 Wireless PA System

• 1 x compact cabinet speaker
• 1 x power cord
• 1 x battery pack
• 1 x remote control
• 1 x battery
• 1 x user manual
• 1 x declaration of conformity

1 x OMNITRONIC Partymic-1 Dynamic Microphone

• 1 x microphone
• 1 x jack cable

• Weight: 8.07 kg
• Power supply: 100-240 V AC, 50/60 Hz, Or, 12V DC
• Power consumption: 65 W
• IP classification: IP20
• Protection class: Protection class I
• Output power: 40 W RMS
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided), Battery/battery pack
• Frequency range: 50 - 18000 Hz
• THD: 0.1 % at 1 kHz
• Sensitivity: 90 dB (1W/1m)
• Max. SPL: 106 dB
• Cooling: Passive convection cooling
• Housing color: Black
• Attachment system: Flange: Ø 35mm
• Control elements: Echo effect control, audio player
• Status LED: Power, peak, microphone, charge status indicator, pairing
• Connections: Input: Mic/Hi.Z. via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 1 x stereo RCA, Input: stereo via 1 x 3.5 mm jack (stereo) mounting version, Input: 1 x USB A (F) mounting version
• Channels: Microphon chanal: 2 x mono with Mic-Hi.Z. switch via Combination socket (XLR/jack), channel control via rotary dial, Input chanel: 1 x stereo via RCA or jack plug or player, channel control via rotary dial, Input chanel: 2 x mono via radio, channel control via rotary dial, Master output: mono, channel control via rotary dial, 2-band tone control EQ
• Speaker: 1 x woofer 8, Basket material: steel, Conematerial: cardboard/paper, 1 x tweeter
• USB port: Type A
• Type of speaker: Compact cabinet speaker; wireless PA system
• Recessed carrying handle: 1 pc/pcs
• Material: ABS Acrylonitrile butadiene styrene
• Color: Black
• Dimensions: Width: 27 cm, Depth: 29 cm, Height: 42 cm
• Weight: 7.75 kg
• Battery pack type: 1 x lithium ion 11.1 V, 4000 mAh, 44.4 Wh
• Battery pack: Battery operation up to 4h depending on program used, Recharging time 4h
• Control: IR remote control; Bluetooth
• Bluetooth device name: WAMS-08BT MK2
• Audio player: USB + SD + Bluetooth
• Range: Bluetooth: range up to 10m
• Frequency band: 2.4 GHz
• Music format: MP3, WMA; WAV
• Available storage media: USB devices/SD cards max. 32GB (FAT 32)
• Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
• Range: Range up to 10m
• Type: Vocal microphone; microphone for instruments
• Cable length: 3.3 m
• Capsule type: Dynamic
• Polar pattern: Cardioid
• Frequency range: 50 - 13000 Hz
• Impedance: 600 Ohm
• Connections: 3-pin XLR, 6.3 mm plug (unbal.)
• Input sensitivity: -55 dB
• Transducer type: Dynamic
• Switch: On/off switch
• Dimensions: Length: 18 cm, Diameter: Ø 5 cm
• Weight: 0.32 kg
