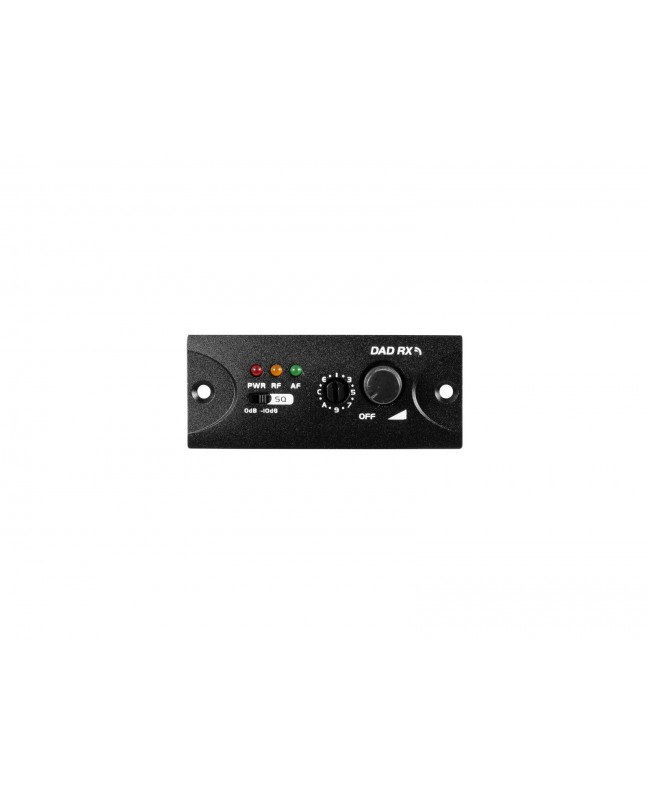

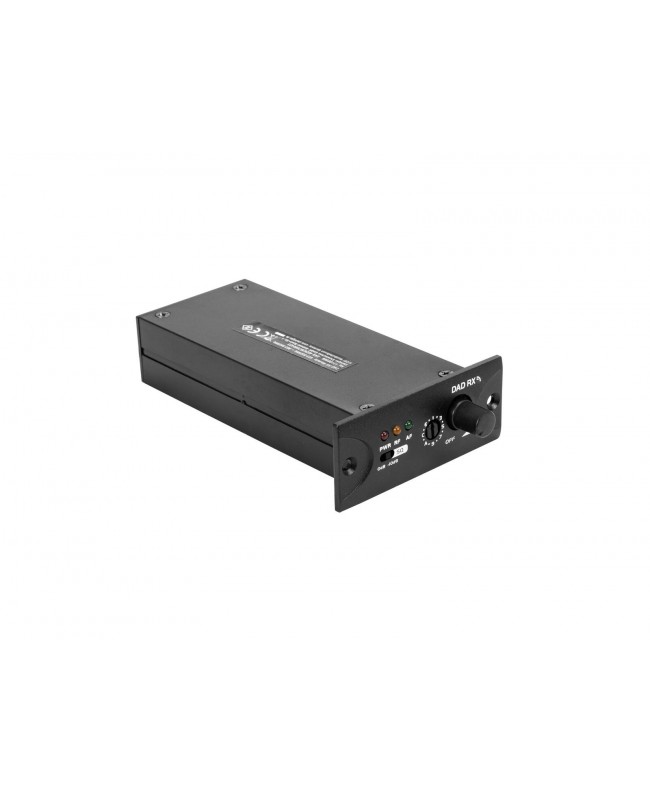

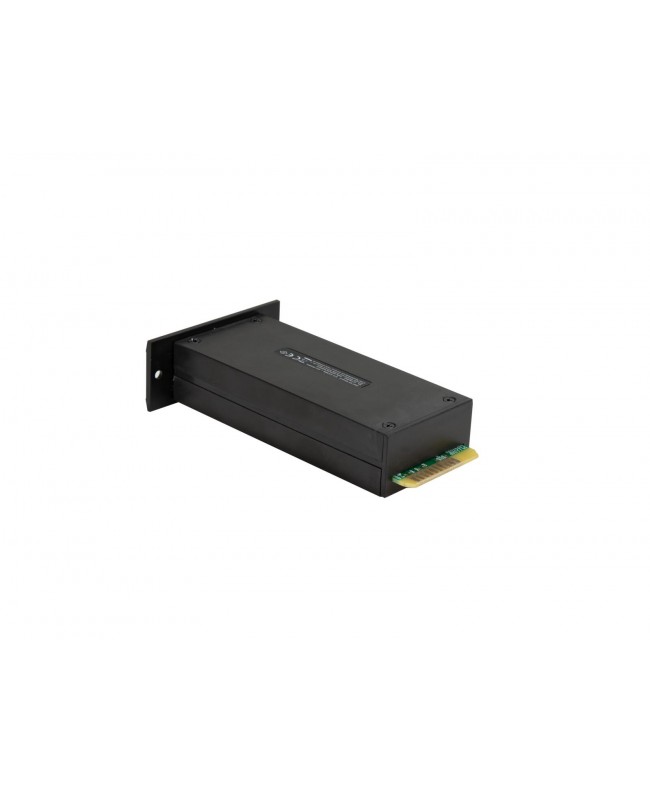

Omnitronic DAD Receiver Module

• For installation into the DAD-4RX 4-channel receiver housing
• For retrofitting the MOM-10BT4 modular PA system
• For wireless audio transmission with DAD transmitter modules and other components
• 16 selectable UHF frequencies (823-832 and 863-865 MHz)
• LEDs for carrier and audio signal
• Operating range up to 30m with line-of-sight
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• UHF 863 - 865 MHz License-free and approved in Europe

Scope of delivery

• 1 x receiver
• 1 x user manual
• 1 x declaration of conformity

• Type: Receiver
• Power supply: 12V DC 170 mA
• Number of channels: 1
• Frequency range: 40 - 18000 Hz
• S/N ratio: 80 dB
• THD: 0.1 % at 1 kHz
• Sensitivity: -95 dB
• Range: Range up to 30m with line-of-sight
• Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
• Frequency stability: +- 0.001 %
• Frequency selection: 16 switchable frequencies
• Control elements: Frequency selector switch, level control, Squelch control
• Status LED: Power, signal, level meter
• Color: Black
• Dimensions: Width: 7.1 cm, Depth: 13.9 cm, Height: 3 cm
• Weight: 0.09 kg
