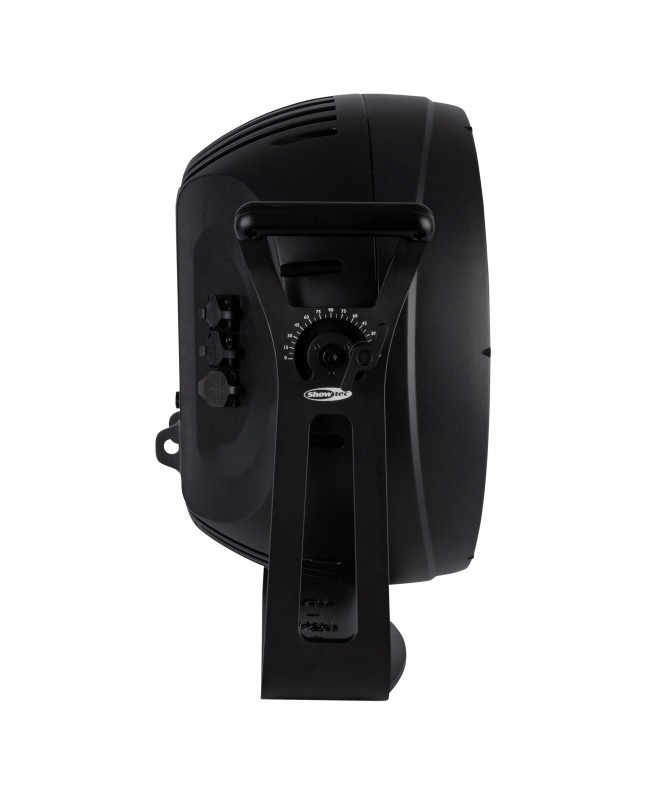

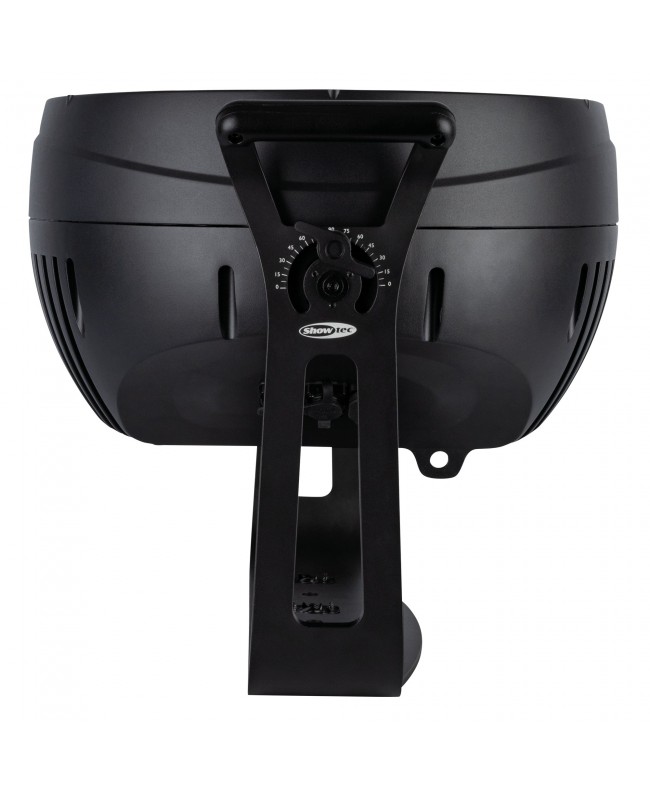

Showtec Lumina Beam

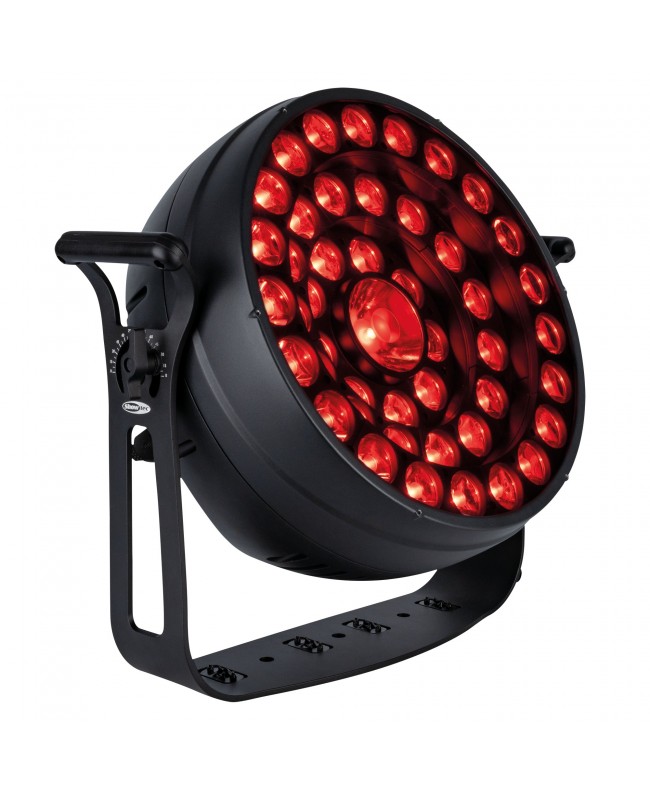

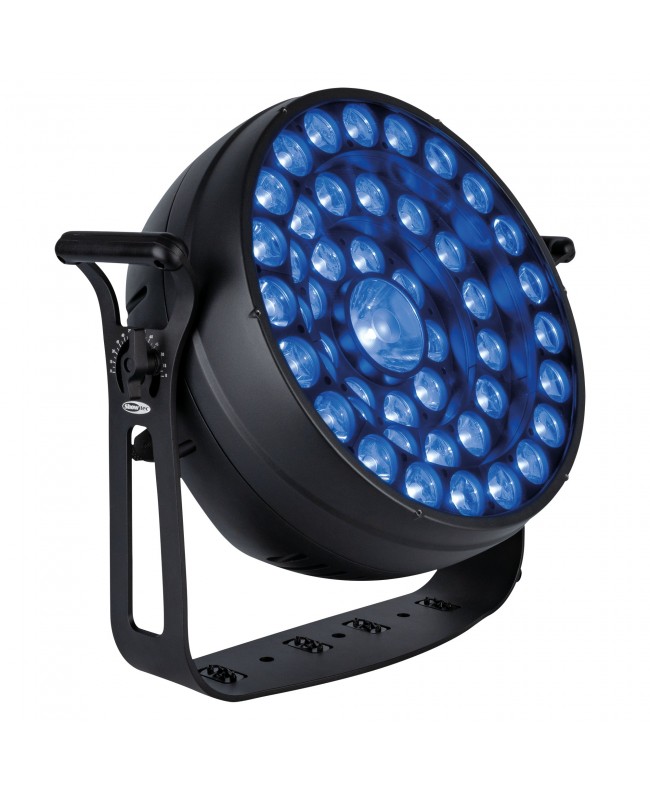

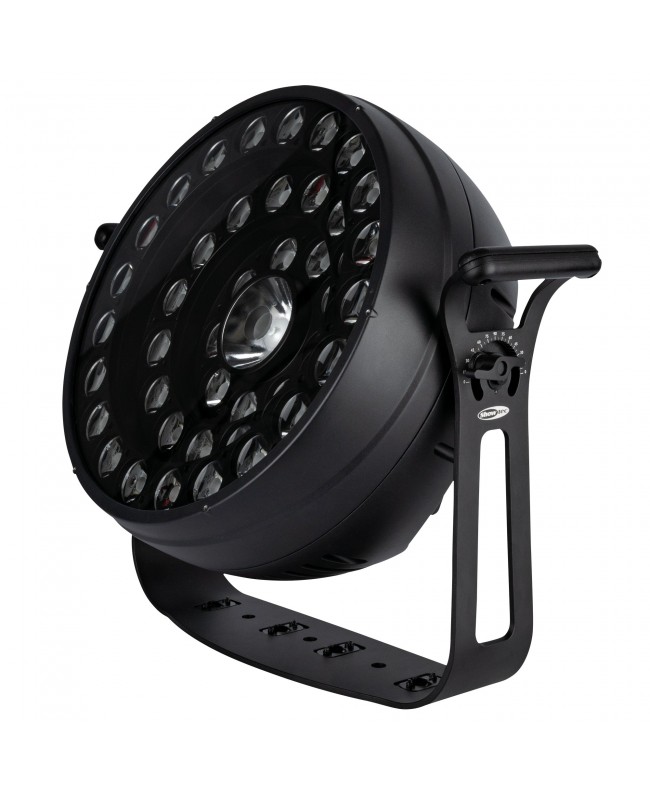

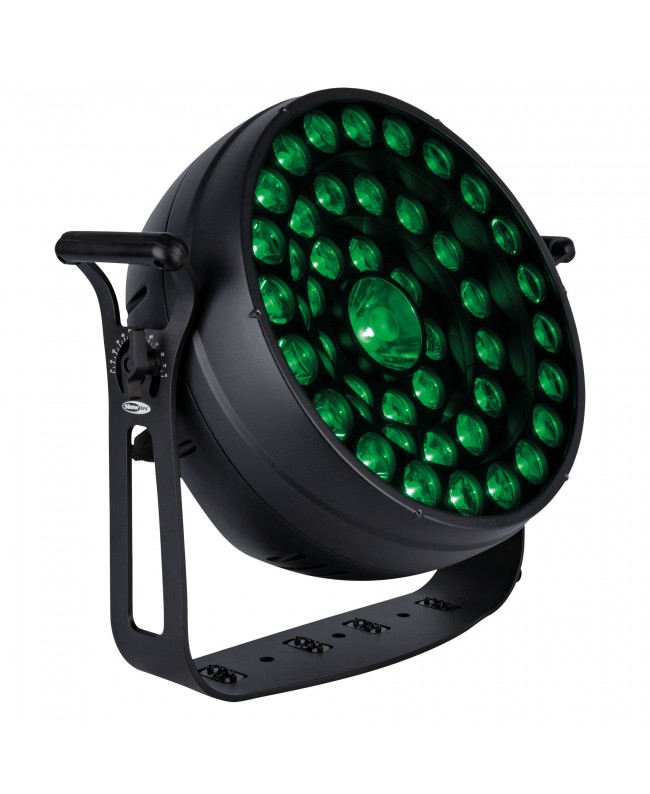

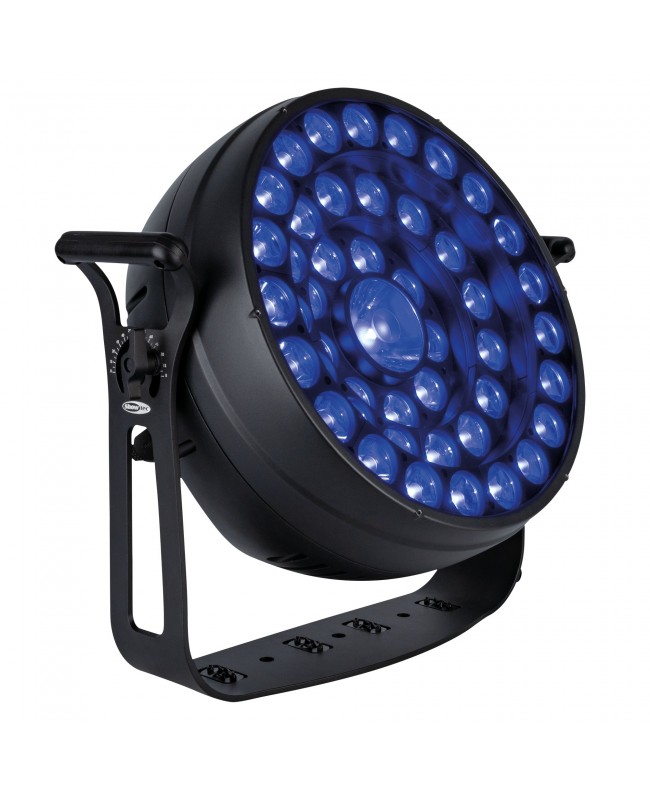

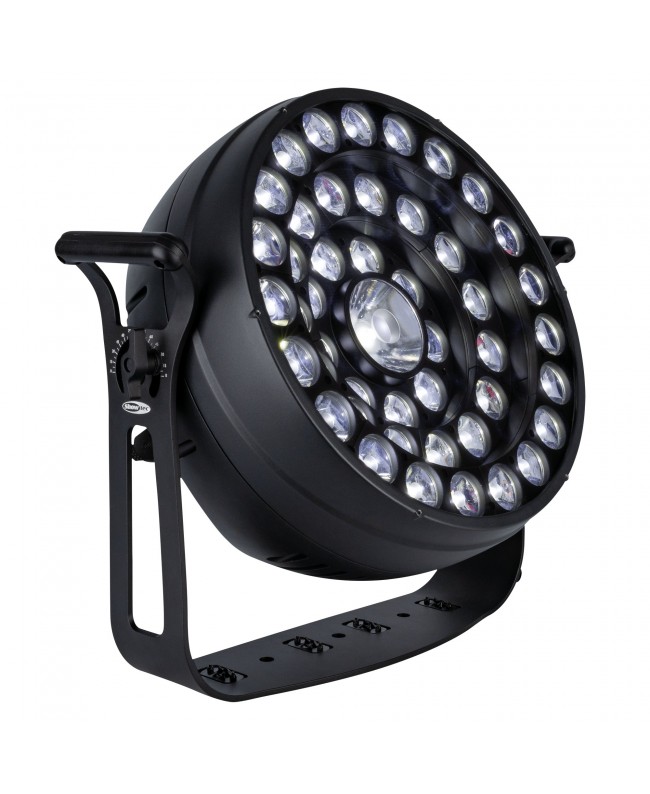

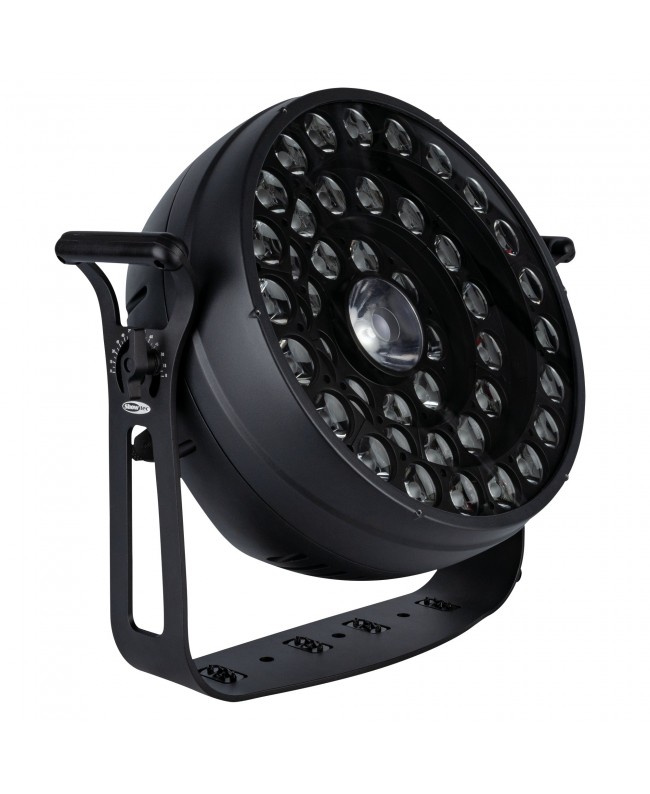

The Showtec Lumina Beam is a powerful outdoor beam blinder designed for dynamic effects and creative lighting. At its core, a 60 W RGBW LED delivers a sharp 8° beam angle for intense, focused output. Surrounding the centre LED are 45 RGBW LEDs (15 W each), all pixel-controlled for stunning multi-layered effects and endless design possibilities.

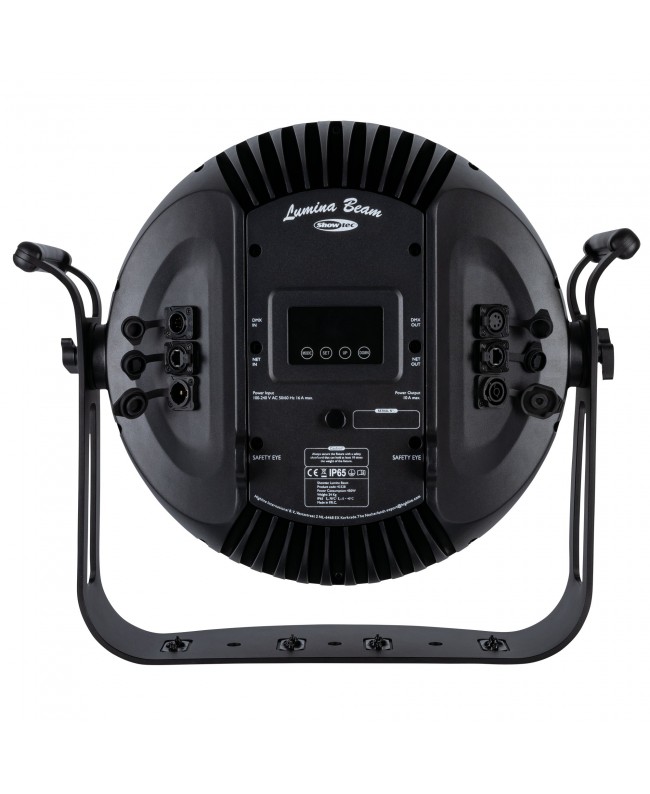

With an IP65-rated housing, the Lumina Beam is built for all-weather reliability. Control options include Art-Net, DMX/RDM, Auto, and Manual modes, with up to 150 DMX channels for advanced programming. Thanks to RDM, you can remotely change the DMX address and switch DMX modes without physical access. The fixture also features 4 selectable dimming curves, Power Pro True connectors, and 5-pin DMX connections for secure and professional setups. High-frequency PWM (1-15 kHz) ensures flicker-free performance for broadcast and camera applications.

A range of optional accessories is available to soften the LED appearance, modify the beam look, or create distinctive patterns for a vintage or Goliath-style appearance.

  • 1X 60 W + 45x 15 W RGBW LEDs
  • Pixel-controlled for dynamic effects
  • Sharp 8° beam angle
  • IP65-rated for outdoor use
  • Art-Net and DMX/RDM control with remote addressing
  • PWM 1-15 kHz for flicker-free performance
  • Light Source Type: LED
  • Light Source Quantity: 46
  • Light Source Power: 15 W
  • LED Colour Type: RGBW
  • Life Expectancy: 20000 h
  • Refresh Rate: 1000 Hz
  • Refresh Rate (Max.): 15 kHz
  • Luminous Flux (Total): 14240 lm
  • Luminous Flux (Red): 4645 lm
  • Luminous Flux (Green): 10898 lm
  • Luminous Flux (Blue): 2420 lm
  • Luminous Flux (White): 13271 lm
  • Beam Angle (Horizontal): 8°
  • Beam Angle (Vertical): 8°
  • Control Mode: Art-Net / Auto / DMX / Manual / RDM
  • DMX Channels: 150
  • Protocols: DMX / RDM
  • Fan mode: Yes
  • Dim Curve: Linear / Square / I-Square / S-Curve
  • Dimmer: 0-100 %
  • Strobe: 0-20 Hz
  • Power Supply: 100-240 V AC 50/60 Hz
  • Power Consumption: 450 W
  • Power Connector In: Power Pro True
  • DMX Connector: XLR 5P In/Out
  • DMX Connector In: XLR 5P
  • DMX Connector Out: XLR 5P
  • Data Connector: RJ45 In/Out
  • Data Connector In: RJ45
  • Data Connector Out: RJ45
  • Length (mm): 265 mm
  • Width (mm): 555 mm
  • Height (mm): 481 mm
  • Weight: 24 kg
  • IP Rating: IP65
  • Material: Aluminium
  • Housing: Aluminium
  • Colour: Black
  • Cooling: Convection/Axial fan
  • Maximum Ambient Temperature: 40 °C
  • Maximum Surface Temperature: 70 °C
  • Energy efficiency class: T/B/D
  • Included Cables: Power Pro True Cable
