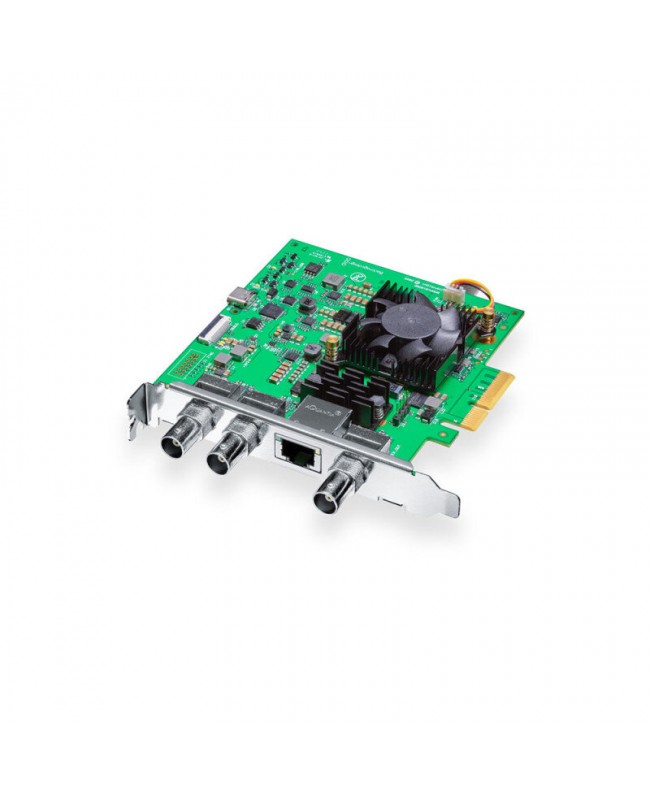

Blackmagic Design DeckLink IP/SDI HD Capture & Playback
  • New

Blackmagic Design DeckLink IP/SDI HD

€408.00
Tax included

2 Capture and playback channels to 2110 IP via RJ45 Ethernet, 3G-SDI and ref out

Qty

In Stock

Delivery

Do You want Your order by Friday, 03/07/2026? Order within 5 hours and 53 minutes

Free shipping

Compare

wishlist

Blackmagic Design DeckLink IP/SDI HD



Deck. Link IP/SDI HD is a professional video capture and playback card designed to integrate with both SMPTE 2110 IP infrastructures and traditional 3G-SDI systems. It is designed for broadcast, post-production, and high-quality workflows.

It offers two channels of capture and playback for 2110 IP via RJ45 Ethernet, two directionally configurable 3G-SDI connections, and a reference output. It is designed to work with the highest quality video in common video formats, including Apple Pro. Res, DNx. HD, and even 10-bit uncompressed video. It supports 525i, 625i, 720p, 1080i, and 1080p up to 1080p 60.

  • Technical characteristics
  • Connections
  • SDI ports: 2 x bidirectional 12-bit SD / HD independently configurable as either input or output. 16 channels audio embedded in SD and HD
  • 10G Ethernet port: 1 x 10G BASE-T. 10G Ethernet supports 2 input channels and 2 output channels, each up to 1920 x 1080p 60 with 16 audio channels
  • Sync output: Tri-Sync or Black Burst
  • Computer interface: PCIe 4 lane generation 2, compatible with 4, 8 and 16 lane PCIe slots
  • Supported Codecs
  • Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4
  • Video Standards
  • SD video standards: 525i59.94 NTSC, 625i50 PAL
  • HD video standards: 1280 x 720p 50, 1280 x 720p 59.94, 1280 x 720p 60; 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60; 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59, 1920 x 1080p 59.94, 1920 x 1080p 60; 1920 x 1080PsF 23.98*, 1920 x 1080PsF 24*, 1920 x 1080PsF 25*, 1920 x 1080PsF 29.97*, 1920 x 1080PsF 30* (*PsF SDI only)
  • SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU-R BT.656 and ITU-R BT.601
  • SDI metadata support: RP 188/SMPTE 12M-2 and closed captioning
  • Audio sampling: television standard sample rate of 48 kHz and 24 bit
  • Color precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1920 x 1080p 30 and 8, 10-bit YUV 4:2:2 in all modes
  • Color space: REC 601, REC 709, REC 2020
  • HDR support: HDR static metadata packing, HLG and PQ transfer characteristics
  • IP video compliance
  • SMPTE 2110-20 (uncompressed video): IGMP v2
  • SMPTE 2110-21 (traffic shaping): sender: Narrow; Receiver: Narrow, Wide Synchronous, Asynchronous
  • SMPTE 2110-30 (PCM): audio conformance level: Level C
  • SMPTE 2110-40 (ancillary data): full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata
  • Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1, ST 2059-2
  • NMOS IS-04 discovery and registration: v1.3.2 peer-to-peer via mDNS/DNS-SD
  • NMOS IS-05 connection management: v1.1.2
  • NMOS BCP-002-01: natural grouping
  • NMOS BCP-004-01: receiver capabilities
  • Processing
  • Colorspace conversion: hardware based real time
  • Real time effects: DaVinci Resolve, Final Cut Pro internal effects, Adobe Premiere Pro CC Mercury Playback Engine effects, Avid Media Composer internal effects
  • Physical installation
  • Form factor: PCIe full height
  • Power requirements
  • Power consumption: 10 W
  • Environmental specifications
  • Operating temperature: 5 to 40 °C
  • Storage temperature: -20 to 45 °C
  • Relative humidity: 0% to 90% non-condensing
  • Physical specifications
  • Dimensions: lenght 137,6 mm
  • Weight: 159 g
  • What's included
  • DeckLink IP/SDI HD
  • Welcome wallet with QR code for software download
