Low-profile PCIe card that outputs broadcast-quality video via 3G-SDI and HDMI 2.0, supports HDR formats, integrates seamlessly with professional editing and grading software

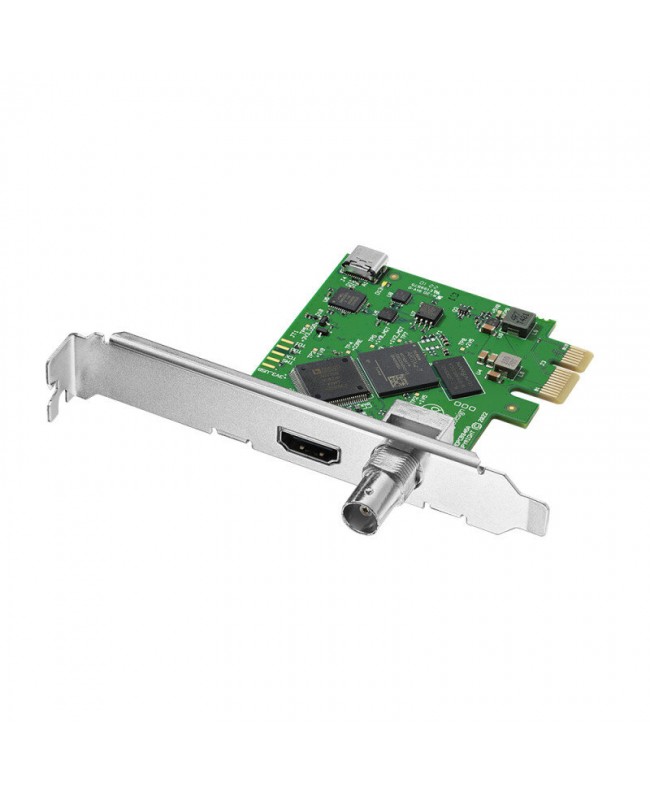

Deck. Link Mini Monitor HD is a low-profile PCIe card designed for broadcast-quality video playback and monitoring directly from your computer. It and #039;s designed for audiovisual professionals working with editing, color grading, and post-production software.
It offers broadcast-quality HDMI and SDI video playback and monitoring from your PCIe computer! With 3G-SDI and HDMI 2.0 connections, you can connect to any television, monitor, or projector for broadcast-quality monitoring, even in the latest HDR formats. Deck. Link Mini Monitor HD is fully compatible with Da. Vinci Resolve, Final Cut Pro, and more.
Technical characteristics

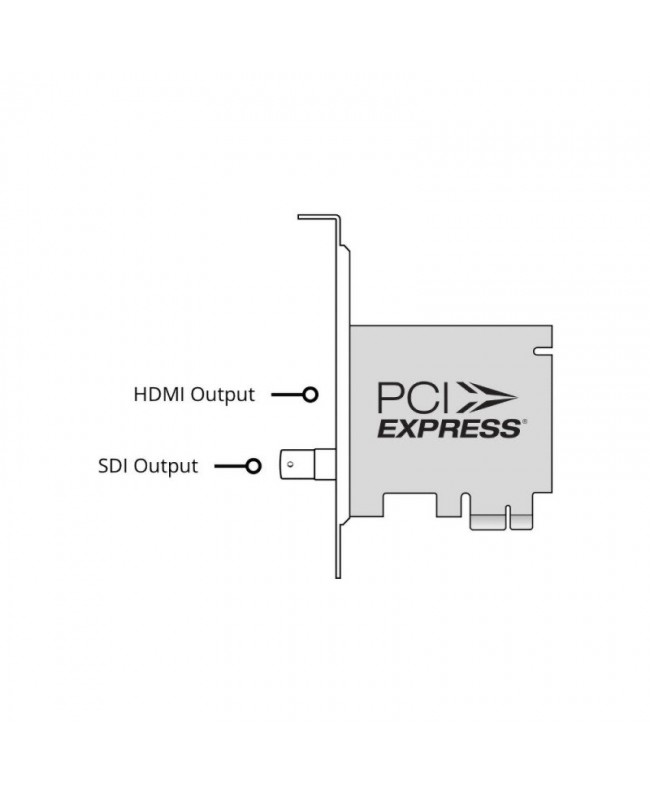

Connections
SDI video output: 1 x 10-bit SD / HD switchable
SDI rates: 270 Mb, 1.5G, 3G
SDI audio output: 16 channels embedded in SD / HD
HDMI video output: 1 x HDMI 2.0 type A connector
HDMI audio output: 8 channels embedded in SD/HD
Computer interface: PCIe 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCIe slots
Supported codecs
Supported formats: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4
Software
Software included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows
Linux support: Media Express, Blackmagic Desktop Video Utility and Blackmagic driver
Internal software upgrade: Firmware built into software driver, loaded at system start or via updater software
Physical installation: PCIe 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCIe slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCIe slots
Software applications
Compatible software: DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop CC
Other supported applications: The Foundry Nuke, Sony Catalyst Production Suite, Tools On Air Just: Play and Live, Magix Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Grass Valley Edius, Softron Mreplay, Telestream Wirecast, Livestream Studio, Resolume Arena, Vegas Creative Software Vegas Pro, VidblasterX Studio and Broadcast, Unimedia Technologies UniplayOne and Uniplay-CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Boinx Software MimoLive, StudioCoast vMix, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and CoralCG, Open Broadcaster Software Studio, Nautilus Studio Nemo3D, Burst Video Webclip2Go, Derivative TouchDesigner, Assimilate Scratch and Live Assist, NewBlue Titler Live and Titler Pro, SGO Mistika
SDI video standards
SD formats: 525i59.94 NTSC, 625i50 PAL
HD formats: 720 x 1280p 50, 720 x 1280p 59.94, 720 x 1280p 60, 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60, 1920 x 1080PsF 23.98, 1920 x 1080PsF 24, 1920 x 1080PsF 25, 1920 x 1080PsF 29.97, 1920 x 1080PsF 30, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60
2K formats: 2048 x 1080p 23.98 DCI, 2048 x 1080p 24 DCI, 2048 x 1080p 25 DCI, 2048 x 1080p 29.97 DCI, 2048 x 1080p 30 DCI, 2048 x 1080p 50 DCI, 2048 x 1080p 59.94 DCI, 2048 x 1080p 60 DCI, 2048 x 1080PsF 23.98 DCI, 2048 x 1080PsF 24 DCI, 2048 x 1080PsF 25 DCI, 2048 x 1080PsF 29.97 DCI, 2048 x 1080PsF 30 DCI
SDI metadata support: RP 188/SMPTE 12M-2 and closed captioning
SDI audio sampling: 48 kHz and 24 bit
SDI video sampling: 4:2:2, 4:4:4
SDI color precision: 8, 10, 12 bit RGB 4:4:4 up to 1080p30, and 8, 10 bit YUV 4:2:2 in all standards
SDI color space: REC 601, REC 709, REC 2020
SDI HDR support: HDR metadata packing, HLG and PQ transfer characteristics
Multiple rate support: SDI video connection is switchable between SD and HD
HDMI video standards
SD formats: 525i59.94 NTSC, 625i50 PAL
HD formats: 720 x 1280p 50, 720 x 1280p 59.94, 720 x 1280p 60, 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60
HDMI audio sampling: 48 kHz and 24 bit
HDMI video sampling: 4:2:2 and 4:4:4
HDMI color precision: 10, 12 bit RGB 4:4:4 up to 1080p30, 8 bit RGB 4:4:4 and 12 bit YUV 4:2:2 in all standards
HDMI configuration: HDMI 2.0 supports Deep Color and HDR, automatically configures to connected display
HDMI color space: REC 601, REC 709, REC 2020
HDMI HDR support: HDR metadata packing, HLG and PQ transfer characteristics
Multiple rate support: HDMI video connection is switchable between SD and HD
Hardware frame buffer
Supported formats: V210 (10 bit YUV), 2VUY (8 bit YUV), ARGB, BGRA (8 bit RGB), R210 (10 bit RGB), R12B, R12L (12 bit RGB)
Processing
Real time effects: DaVinci Resolve, Final Cut Pro internal effects, Adobe Premiere Pro CC Mercury Playback Engine effects, Avid Media Composer internal effects
Colorspace conversion: hardware based real time
Operating systems
Mac OS: macOS 11.1 Big Sur, macOS 12.0 Monterey or later
