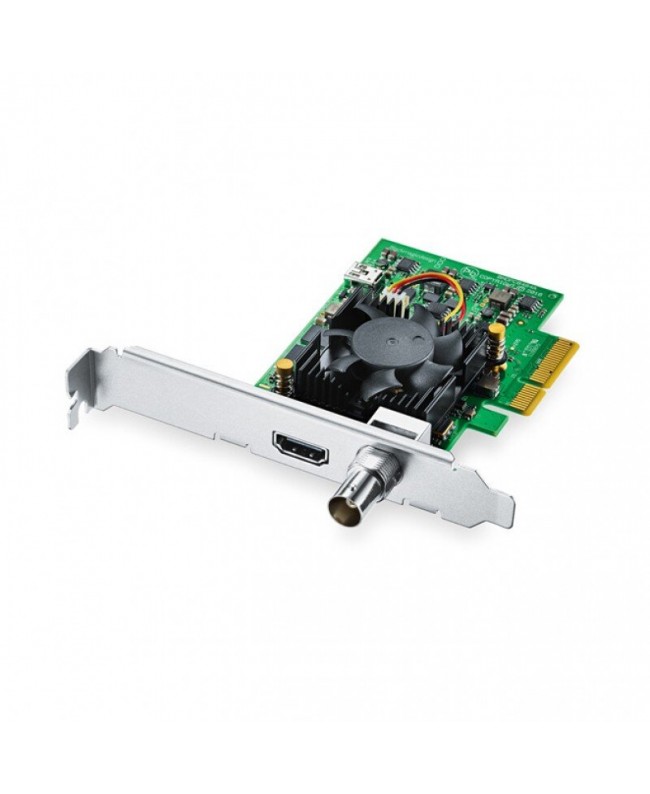

Control all formats up to 2160p 30 from your computer with the Deck. Link Mini Monitor 4K. This low-profile PCI Express playback card features a 6G-SDI and HDMI 2.0a connector. You can connect it to any television or monitor using the SDI and HDMI outputs, automatically detecting and switching between all video formats. The card supports high dynamic range playback and metadata over HDMI.
The Blackmagic Desktop Video SDK for Mac OS, Windows, and Linux lets you develop your own custom playback solutions. Two PCI Express plates are included for both full-height and low-profile slots.
Main features
Uncompressed 10-bit video playback in SD, HD, and Ultra HD
Can be connected to SDI or HDMI displays/monitors
Ideal for monitoring editing in any program
Supports HDR and metadata
Includes 2 PCIe slots for high- and low-profile slots
Technical characteristics
Connections
SDI video outputs: 1 x 10 bit SD / HD / Ultra HD switchable
SDI audio outputs: 16 channels embedded in SD, HD, Ultra HD
HDMI video outputs: 1 x HDMI 2.0a connector
HDMI audio outputs: 8 channels embedded in SD, HD, Ultra HD
Computer interface: PCIe 4 lane generation 2, compatible with 4, 8 and 16 lane PCIe slots
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver for Mac OS and Windows
Media Express, Blackmagic Desktop Video Utility and Blackmagic driver for Linux
Internal software upgrade
Firmware built into software driver. Loaded at system start or via updater software
Physical installation
PCIe 4 lane generation 2, compatible with 4, 8 and 16 lane PCIe slots on Mac OS, Windows and Linux
Mac OS systems require a Mac Pro computer with PCIe slots
Compatible software applications
DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop CC
Other supported applications: The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play and Live and In, Softron MovieRecorder and MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Magix Vegas Pro and Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X and Studio and Broadcast, Uniplay One and CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity and InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard and Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go and [REC]Marker, Autodesk Flame, Zoom
