PCIe card that captures broadcast-quality HDMI and SDI video to your computer! With 3G-SDI and HDMI 2.0 connections, it records in SD and HD formats up to 1080p 60 and 2Kp 60 DCI.

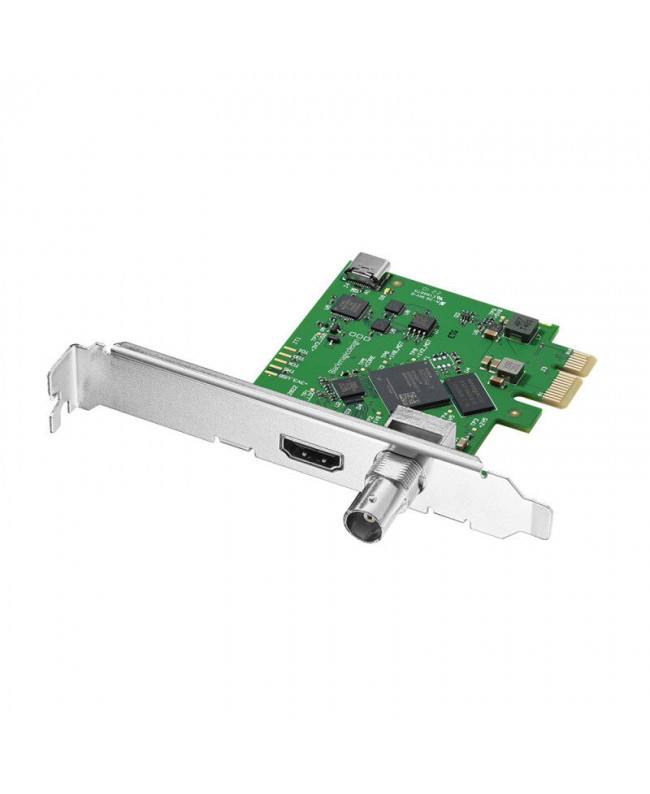

Deck. Link Mini Recorder HD is the broadcast-quality capture card compatible with any SD and HD equipment and with popular video software like Da. Vinci Resolve.
Technical characteristics

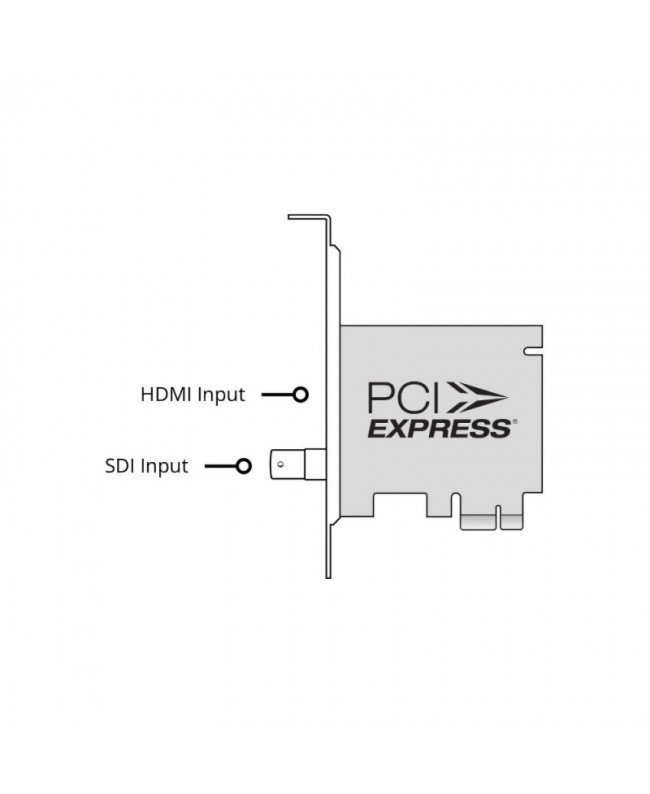

Connections
SDI video input: 1 x 10-bit SD / HD switchable
SDI rates: 270Mb, 1.5G, 3G
SDI audio input: 16 channels embedded in SD / HD
HDMI video input: 1 x HDMI 2.0 type A connector
HDMI audio input: 8 channels embedded in SD / HD
Computer interface: PCIe 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCIe slots
Supported codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4
Software
Software included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
Internal software upgrade: firmware built into software driver. Loaded at system start or via updater software
Physical installation: PCIe 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCIe slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCIe slots
Software applications
Wirecast, vMix, OBS
Other supported applications include: Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go and [REC]Marker, Zoom
SDI video standards
SDI video standards: 525i 59.94 NTSC, 625i 50 PAL
HD video standards: 720 x 480p 50, 720 x 480p 59.94, 720 x 480p 60, 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60, 1920 x 1080PsF 23.98, 1920 x 1080PsF 24, 1920 x 1080PsF 25, 1920 x 1080PsF 29.97, 1920 x 1080PsF 30, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60
2K video standards: 2K x 1080p 23.98 DCI, 2K x 1080p 24 DCI, 2K x 1080p 25 DCI, 2K x 1080p 29.97 DCI, 2K x 1080p 30 DCI, 2K x 1080p 50 DCI, 2K x 1080p 59.94 DCI, 2K x 1080p 60 DCI, 2K x 1080PsF 23.98 DCI, 2K x 1080PsF 24 DCI, 2K x 1080PsF 25 DCI, 2K x 1080PsF 29.97 DCI, 2K x 1080PsF 30 DCI
SDI metadata support: RP 188/SMPTE 12M-2 and closed captioning
SDI audio sampling: television standard sample rate of 48 kHz and 24 bit
SDI video sampling: 4:2:2, 4:4:4
SDI color precision: 8, 10, 12 bit RGB 4:4:4 up to 1080p30, and 8, 10 bit YUV 4:2:2 in all standards
SDI color space: REC 601, REC 709 and REC 2020
Multiple rate support: SDI video connection is switchable between SD and HD
HDMI video standards
SDI video standards: 525i 59.94 NTSC, 625i 50 PAL
HD video standards: 720 x 480p 50, 720 x 480p 59.94, 720 x 480p 60, 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60
HDMI audio sampling: television standard sample rate of 48 kHz and 24 bit
HDMI video sampling: 4:2:2 and 4:4:4
HDMI color precision: 8 bit RGB 4:4:4, 8 bit YUV 4:4:4 and 12 bit YUV 4:2:2 in all standards
HDMI configuration: HDMI 2.0 supports Deep Color
HDMI color space: REC 601, REC 709 and REC 2020
Multiple rate support: HDMI video connection is switchable between SD and HD
Copy protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Hardware frame buffer
Formats: v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB)
