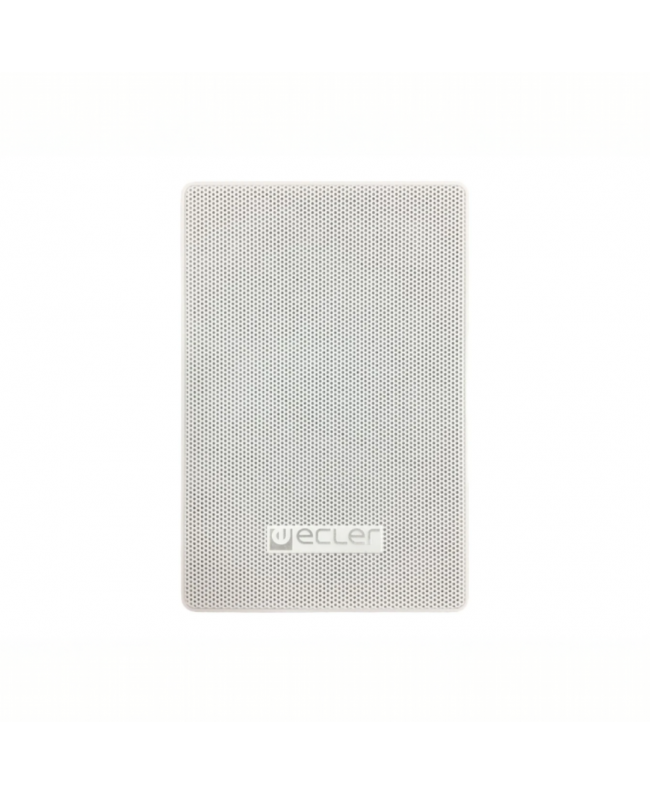

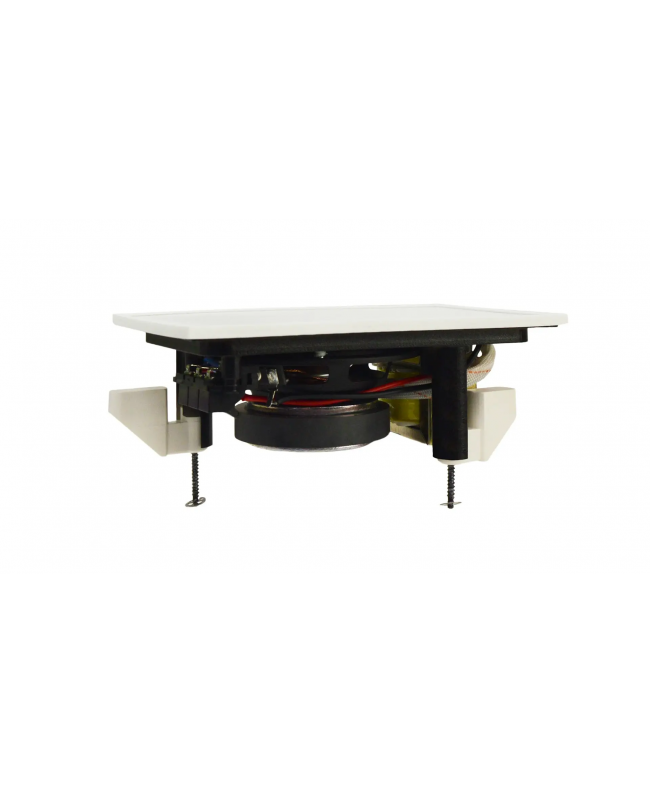

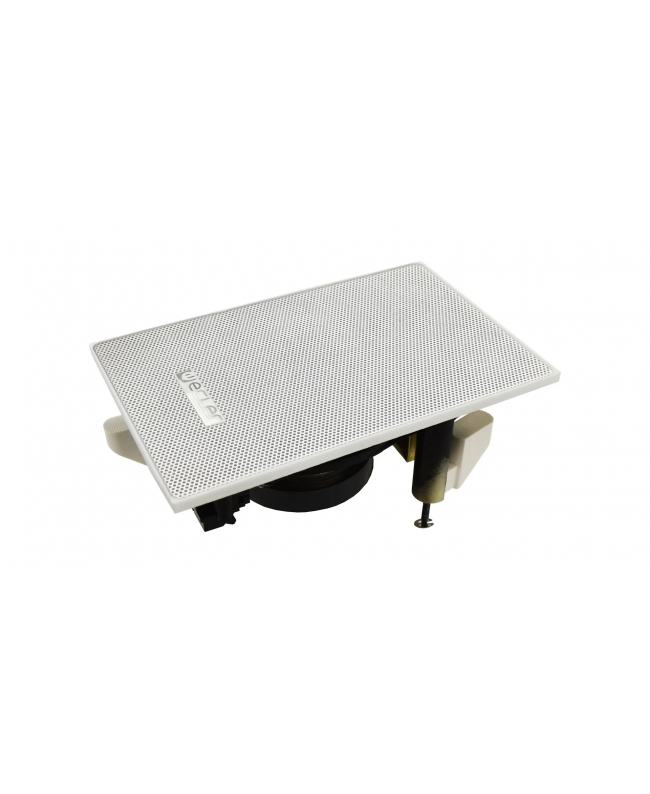

Ecler IW 103

SYSTEM

• Effective frequency range 83 Hz-20 kHz (-10dB)
• Coverage/dispersion angle 158°x158° (HxV)
• Power handling 30 W RMS / 120 W peak
• Sensitivity 84 dB (1W/1m)
• Maximum SPL 99 dB continuous / 105 dB peak
• Power options (Hi Z Multi-tap) 100 V: 30 W / 15 W
• Recommended amplifier power 60 W RMS

TRANSDUCERS

• Modes 1 way

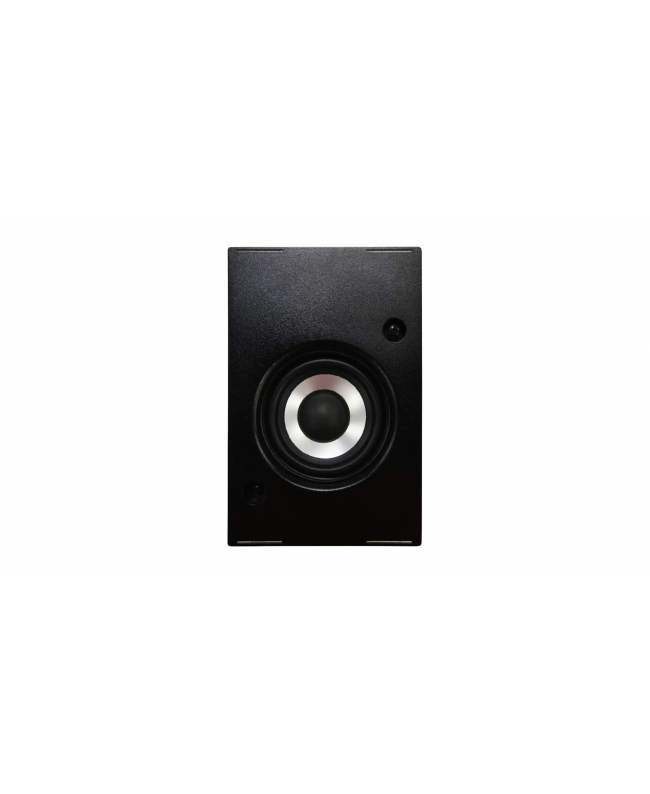

• Driver 3” woofer
• Nominal impedance 667 Ω / 333 Ω

PHYSICAL CHARACTERISTICS

• Connection type Spring terminals
• Power supply selector Changing the position of the terminals
• Installation options Wall or ceiling
• Enclosure material ABS
• Grille material Aluminum, paintable
• Operating temperature
• Min: -10°C ; 14°F
• Max: 40°C ; 104°F
• Operating humidity <85% RH
• Storage temperature
• Min: -10°C ; 14°F
• Max: 40°C ; 104°F
• Storage humidity <90% RH
• Recommended cutting diameter 147 x 95 mm
• Required depth 80 mm
• Ceiling thickness 2 mm min.
• 40 mm max.
• Finished color White (RAL 9003)
• Dimensions 110 x 165 x 80 mm (WxHxD)
• Weight 0.9 kg
• Pieces per box 8 units
• Shipping dimensions
• 120 x 100 x 180 mm / 4.72 x 3.94 x 7.07 inches (LxWxD)
• Shipping weight 1.0 kg / 2.2 lbs
