JBN LAB2B


€580.00
Tax included

9 X 6.5 dual cone drivers on 600 x 600 mm perforated plate, black


Out of Stock

Free shipping


wishlist

JBN LAB2B

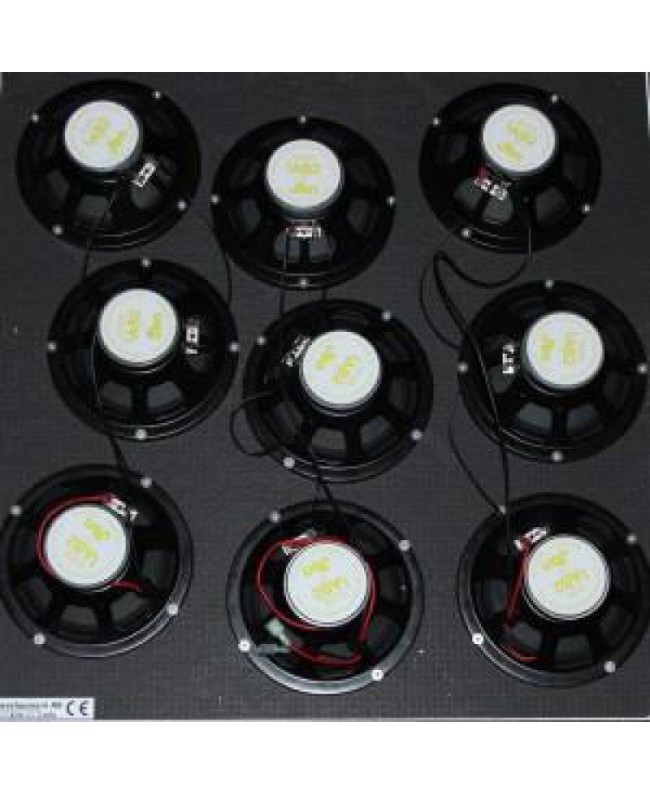

9 X 6½ and #34; dual cone drivers mounted on a 600 mm square perforated plate. Minimum installation size starts at 9 m2, however the maximum size for optimum directivity is 23.04 m2. The panel is 70 mm deep.

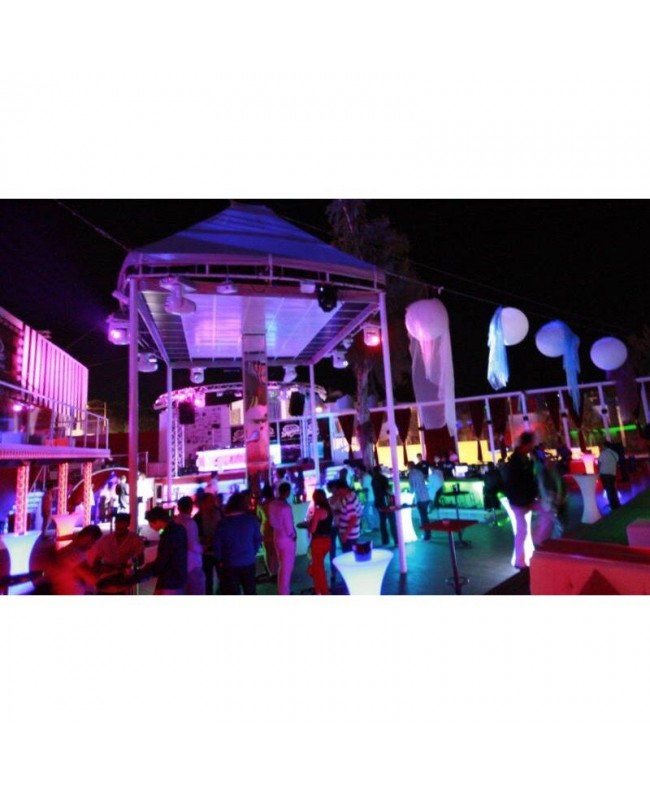

Typical applications for this series include sports bars, horse racing, betting venues, function spaces, marquees and bars.

The speakers are sold in crates of 44 panels. Black color.

  • Frequency response: 35 Hz - 19 kHz +-5 dB
  • Power handling (max.): 250 W/module / 700 watt/m2
  • SPL: 124 dB max.
  • High-end efficiency: 100 dB/W/m (8 - 13 kHz)
  • Impedance / module: 72 ohm
  • Amplifier power: 20 - 600 W/m2
  • Module weight: 7 kg
  • Installation weight: 20 kg/m2
