DAP EDCS-8210 Black Ceiling Speakers
  • -13%

DAP EDCS-8210 Black

€24.50
€21.50 -13%
Tax included
Lowest price within the last 30 days: €21.50

Passive 8 ceiling speaker - black

Qty

In Stock

Delivery

Do You want Your order by Thursday, 29/10/2026? Order within 3 hours and 8 minutes

Compare

wishlist

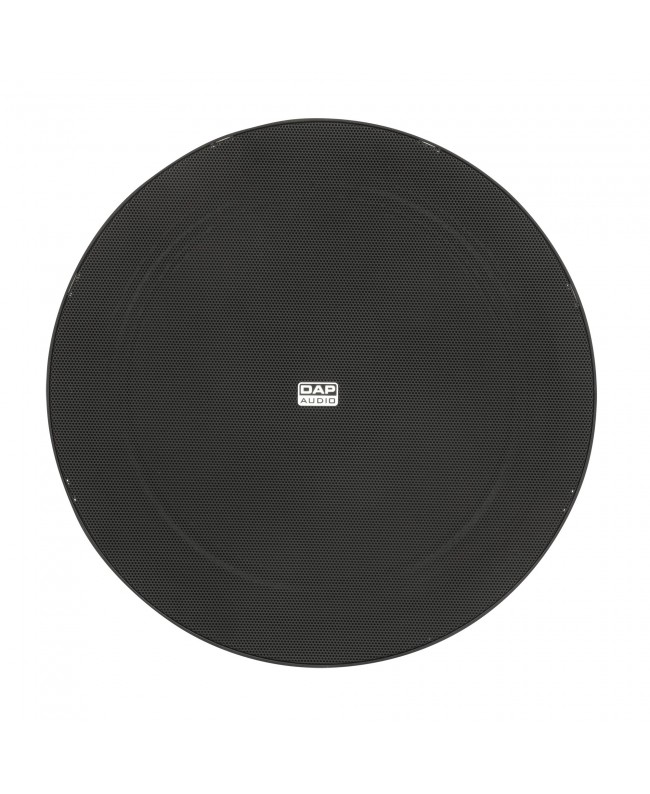

DAP EDCS-8210 Black



The DAP EDCS-8210 is a 8-inch recessed ceiling speaker suitable for 100 V installations. The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer. The DAP EDCS series combine a good sound quality and stylish design in an affordable solution for commercial audio installations.

The EDCS-8210 is available in both white and black enclosures and are the right tool for any installation audio job. It has a small Ø 145 mm mounting size and mounting is easy due to the integrated clamp.

  • 10 W peak power - 100 V
  • Two power taps (5 and 10 W)
  • Modern and stylish ABS design with integrated mounting clamp
  • Available in either black or white
  • Peak Input Power: 10 W
  • Transformer: 100 V

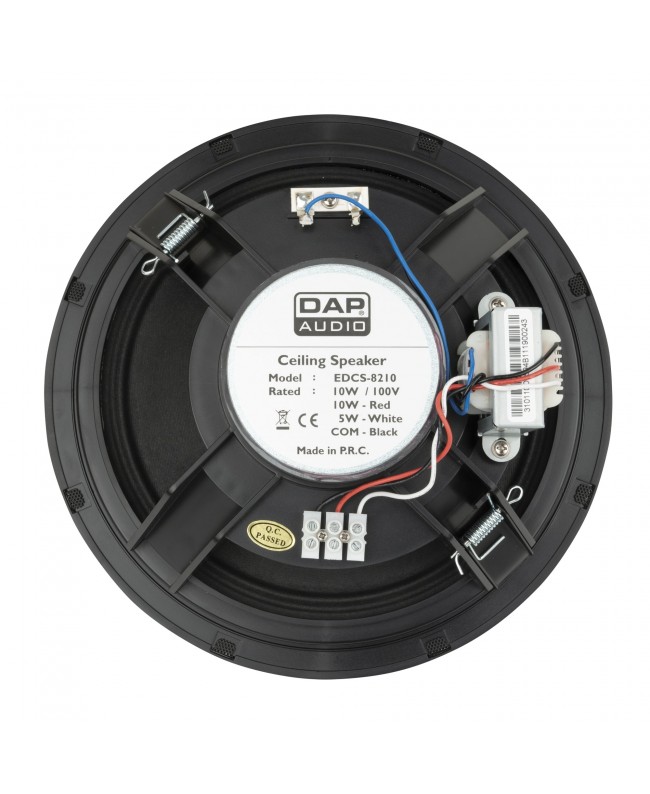

  • Line Transformer Taps: 5 / 10 W
  • Passive Input Connection: Open End
  • Speaker System: Coaxial
  • Speaker Sensitivity (1 W/1 m): 93 dB
  • Speaker Impedance: 8 Ω
  • Maximum SPL at 1 m: 98 dB
  • Frequency Response Minimum: 100 Hz
  • Frequency Response Maximum: 15000 Hz
  • Woofer Diameter: 8
  • Woofer Magnet Type: Ferrite
  • Dispersion Angle (Horizontal): 360°
  • Dispersion Angle (Vertical): 180°
  • Height (mm): 88 mm
  • Width (mm): 232 mm
  • Length (mm): 232 mm
  • Weight: 0.9 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: ABS
  • Mounting Size: Ø 210 mm
  • Colour: Black
  • Mounting Options: Ceiling

D6594B

Data sheet

Woofer inch
8"
Color
Black
Giorni di elaborazione
20
Power (RMS)
under 200 W
Impedance
8 ohms
