Fonestar Ceiling Speaker 3 TRANSFORMER100V 6/3/1.5W RMS 86DB IP66 Ceiling Speakers
  • New

Fonestar Ceiling Speaker 3 TRANSFORMER100V 6/3/1.5W RMS 86DB IP66


€69.80
Tax included

Ceiling Speaker 3 TRANSFORMER100V 6/3/1.5W RMS 86DB IP66


Out of Stock



wishlist

Fonestar Ceiling Speaker 3 TRANSFORMER100V 6/3/1.5W RMS 86DB IP66

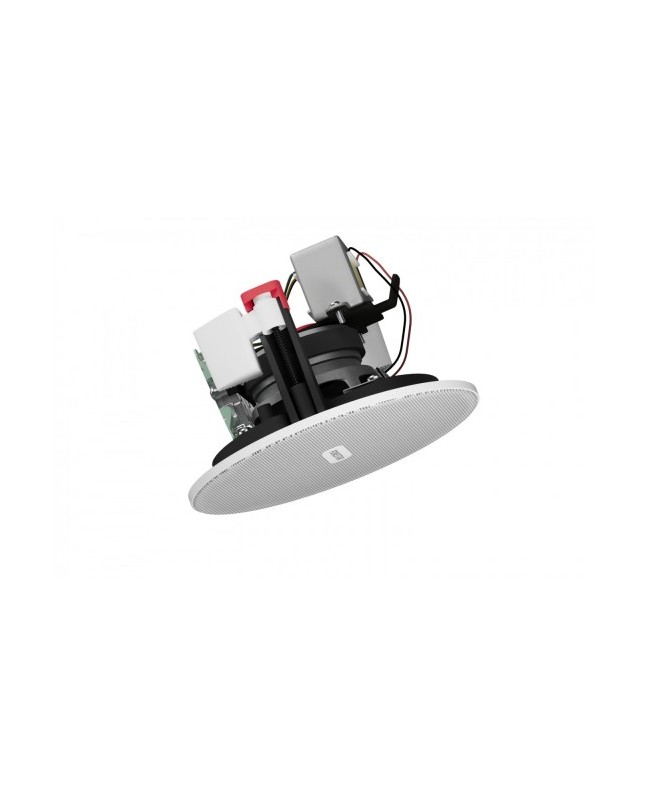

SPEAKER 3 100V SUITABLE FOR EXTREME ENVIRONMENTS The SKY-3XT is a 100V line transformer ceiling loudspeaker designed to combine aesthetics and functionality in engineering and audio system installation projects where a transducer resistant to corrosive environments, high temperatures and humidity (sauna) is needed. Its frameless (frameless) grille and low profile made of oxidation-resistant aluminum offer a discreet and modern finish. In addition, the grille is removable, lockable by rotation, and customizable, allowing the logo to be removed and painted to perfectly match the surroundings.

  • Type
  • In-ceiling loudspeaker with 100-volt line transformer protective dome back cover
  • Frameless (frameless) low-profile grille made of oxidation-resistant aluminum, removable and lockable by rotation
  • Removable and paintable logo
  • Highly conductive quick-connect terminalsSecurity cable hook
  • Stable ceiling mounting brackets with worm gear system
  • Protection against dust and water
  • Resistant to corrosive environments, high temperatures and humidity (sauna)
  • Transducer
  • 3-polypropylene cone
  • Frequency range 110-17,000 Hz at -10 dB Rated power 6W Peak power 12W Max
  • Linear SPL 91 dB at max. W/1m
  • Continuous
  • Max SPL 94 dB at max. W/1m
  • Peak
  • Input type
  • 0.4- to 4-mmq quick-connect terminals
  • Ohm/1,633
  • Ohm)
  • Input sensitivity 83 dB at 1 W/1 m
  • Cabinet material PC and ABS (UV resistant)
  • Cabinet geometry
  • Round
  • Grille
  • Liquid-coated aluminum IP rating IP-66 test according to IEC 60529
  • Corrosive gas (96 h) test according to IEC 60068-2-60
  • Humidity (96 h) test according to IEC 60068-2-78
  • Dry heat (72 h) test according to IEC 60068-2-2
  • Color
  • White RAL9003
  • Installation
  • Ceiling
  • Dimensions
  • Total: 144 mm x 92 mm height
  • Grille thickness: 5 mm
  • Recessed height: 87 mm
  • Installation hole: 117 mm
  • Maximum wall thickness: 30 mm
  • Operating temperature -20ºC ~ 100º
  • C (96 h)
  • Net weight 0.65 kg
  • Accessories
  • Installation templates
  • Want more information regarding our product? Contact us now!

SKY-3XT
