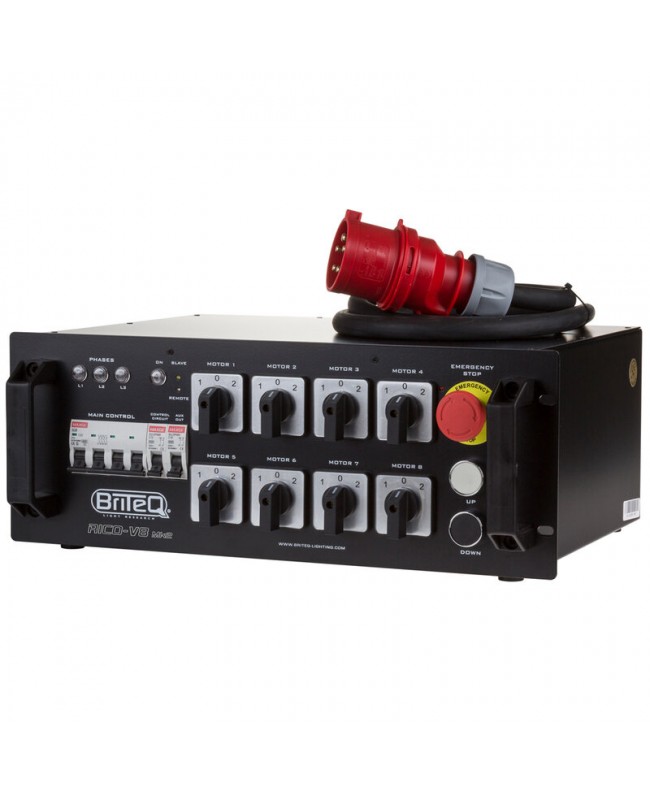

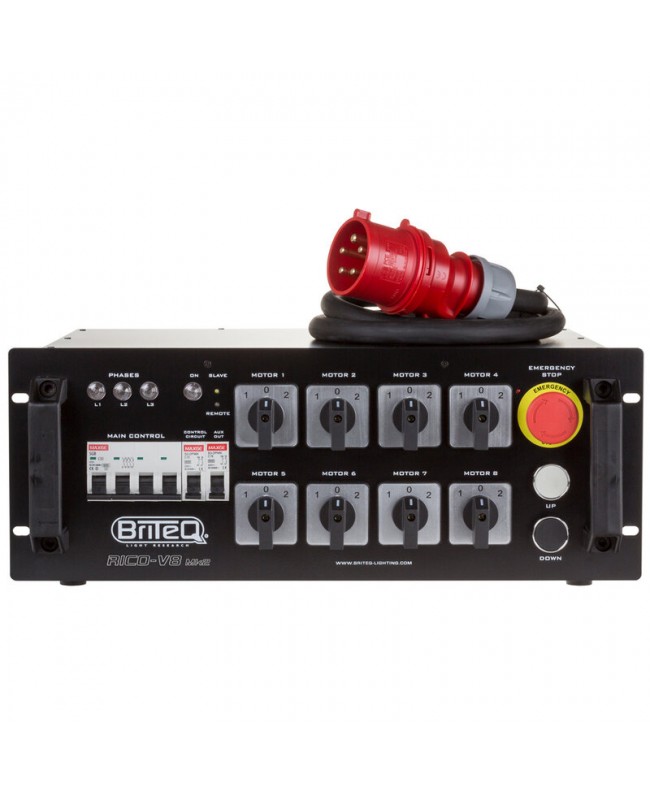

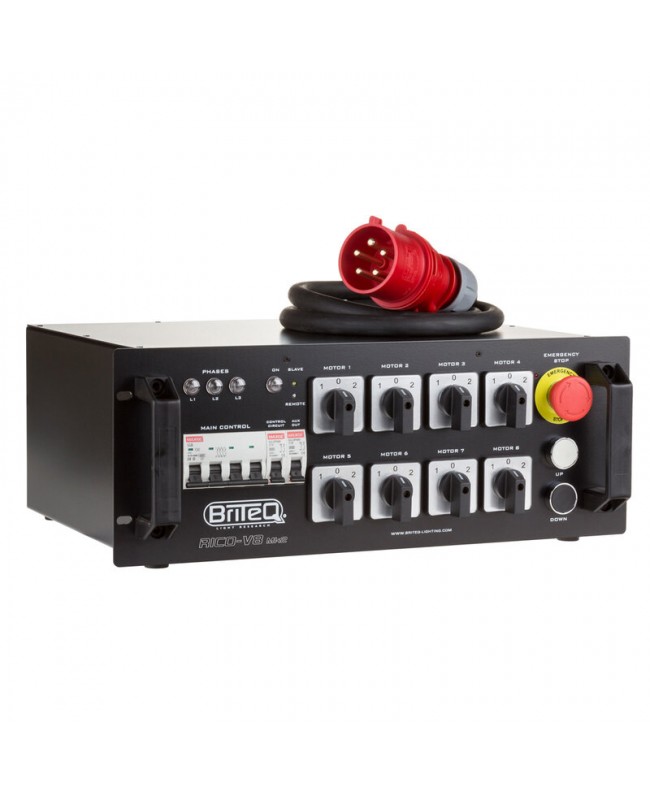

Briteq RICO-V8 Mk2

Chain hoist motor controller, 8 separate channels direct control up / down and Master/Slave connection.

The 32 A circuit breaker 4 pole protects ALL outputs, including the 32 A output to the next unit. In an emergency all 3 phases and neutral are disconnected

Auxiliary output protected by a 16 A RCBO with 30 m. A leakage current protection. Mains input cable (3 x 32 A, 5 wires), fitted with CEE (3P and #43;N and #43;E) 32 A input plug

• Main features
• Stand-alone chain hoist motor controller, maximum 8 separate motors
• Double safety by using an additional relay backup system that activates in critical situations
• Fully compatible with previous RICO-V4 / RICO-V8 models!
• Multiple units can be connected in Master/Slave mode via the IN/OUT connection on the rear panel:
• Easy control for more chain hoists
• Simultaneous hoist control via the up / down buttons on the master controller
• Centralized emergency stop on the master controller
• and #34;Slave and #34; LED indicator
• Manual phase reversal switch for each output

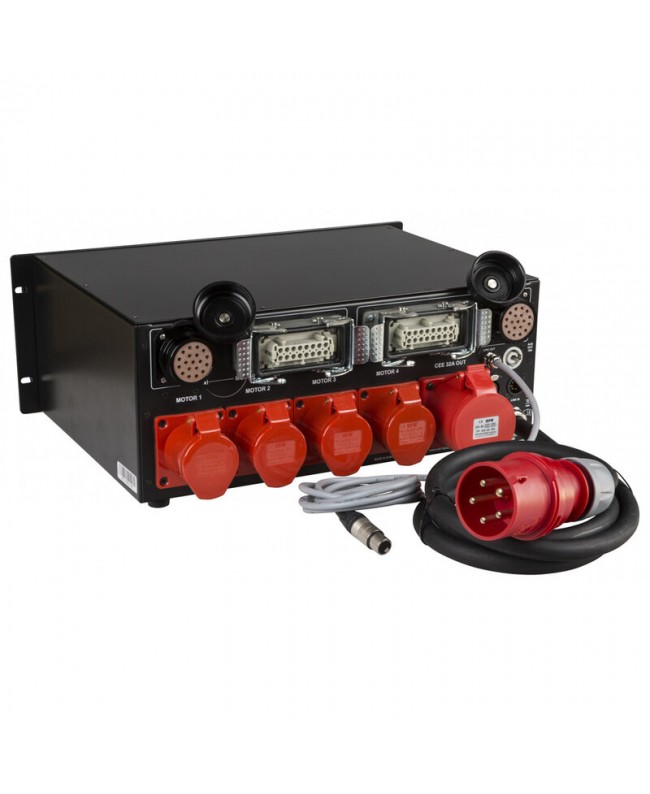

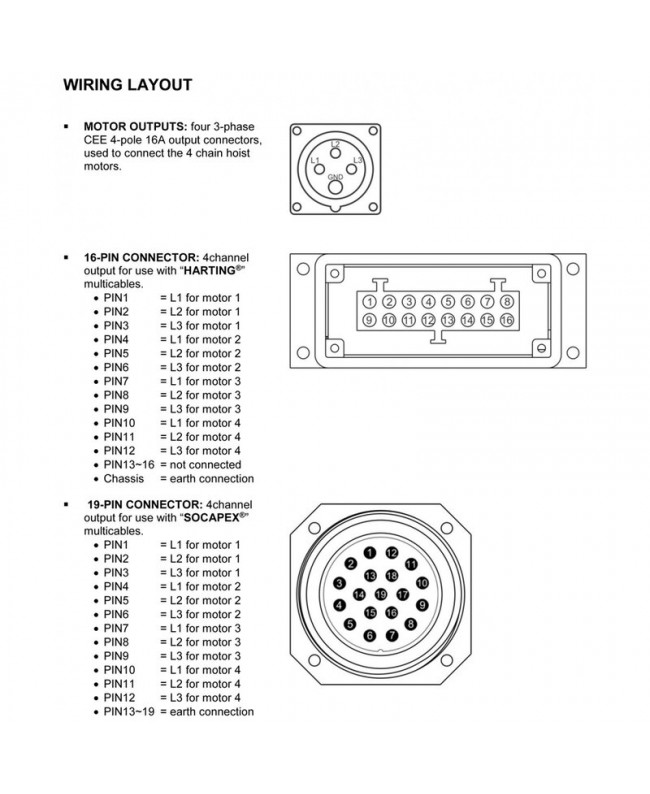

• Choice of different outputs for maximum flexibility (useful for rental companies!):
• 4 X individual CEE16 4-pole 16A outputs

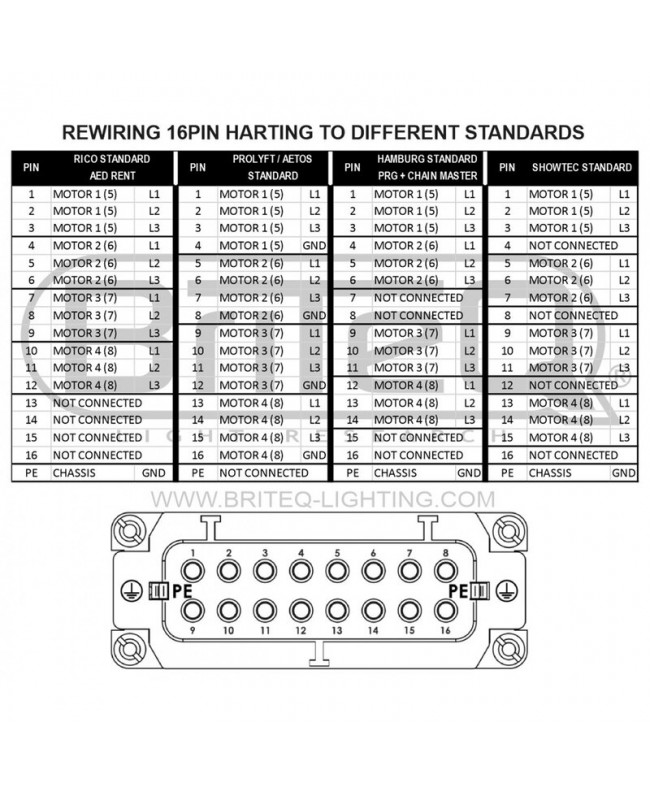

• 2 X 16-pin multi-channel industrial rectangular connectors, Harting compatible
• 2 X 19-pin multi-channel industrial round connectors, Socapex compatible
• 1 X 16 A power. CON socket with earthing: auxiliary output for all types of use
• Remote control input (XLR) with LED indicator to connect the optional RICO-REMOTE
• Phase indicators to easily check if the 3 phases are available
• Circuit breaker C16 (16A - 1P and #43;N) 2 poles for control circuit
• CEE (3P and #43;N and #43;E) output socket (3 x 32 A, 5 wires) for bypass. Extremely robust 19 and #34; / 4U metal housing
• Designed and built in Europe according to the highest international safety standards
• Fully compliant with EU directives: 2014/35/EU (LVD) and 2014/30/EU (EMC):
• EN 60204-32:2008 (Safety of machinery - Part 32: Requirements for lifting machines)
• EN 60204-1:2018 (Safety of machinery - Part 1: General requirements)
• EN IEC 61000-6-2:2019 (EMC - Immunity standard for industrial environments)
• EN IEC 61000-6-4:2019 (EMC - Emission standard for industrial environments)
