RCF EVOX JMIX9 Complete PA Systems
  • New

RCF EVOX JMIX9

€1,750.00
Tax included

Active three-way column music system

Out of Stock

Free shipping

Compare

wishlist

RCF EVOX JMIX9






  • 8-Ch True-Stereo Digital Mixer w/ Bluetooth
  • 130 dB Max SPL
  • 2100 W Class-D Amplifier - Built-In DSP

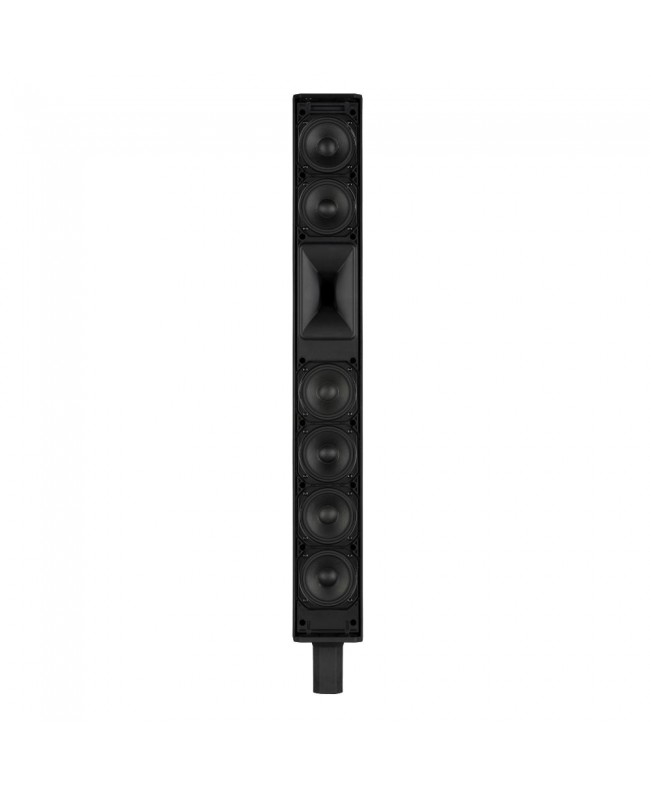

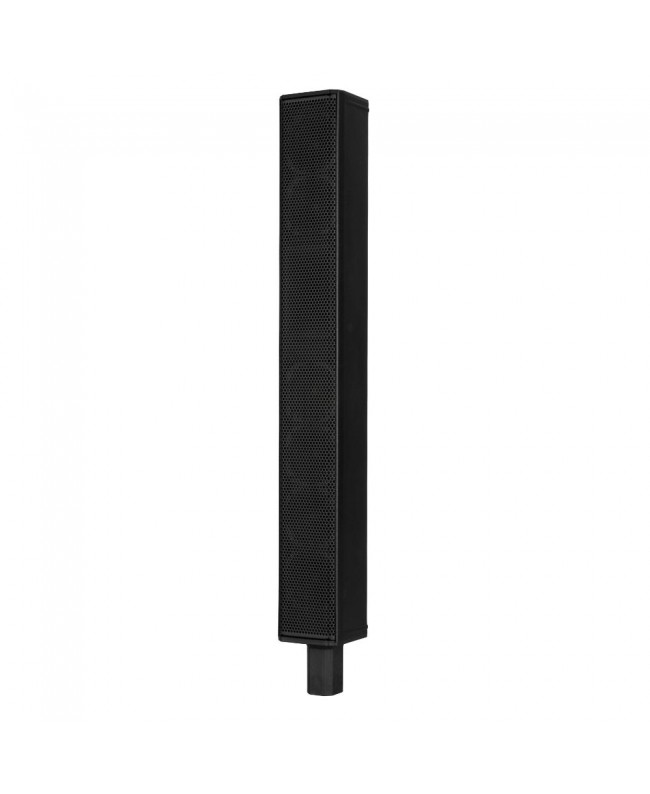

  • 1.75" Neo Compression Driver - 120° X 40° True Resistive Waveguide
  • 6 × 3" Full-Range Neo Transducers

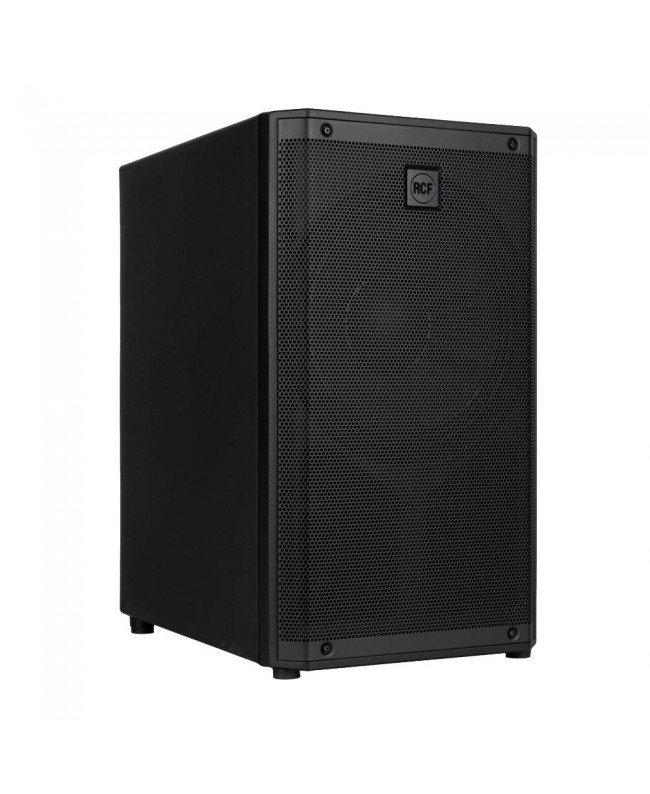

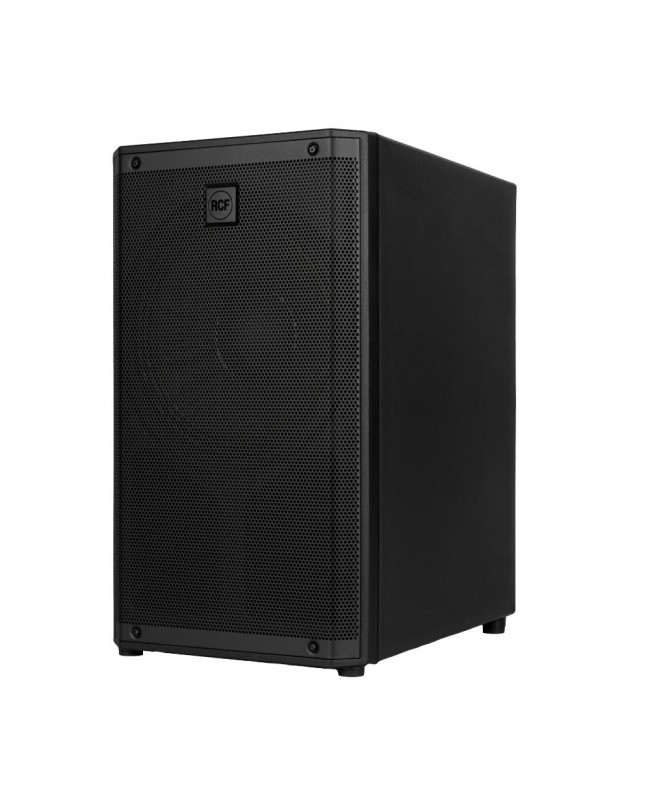

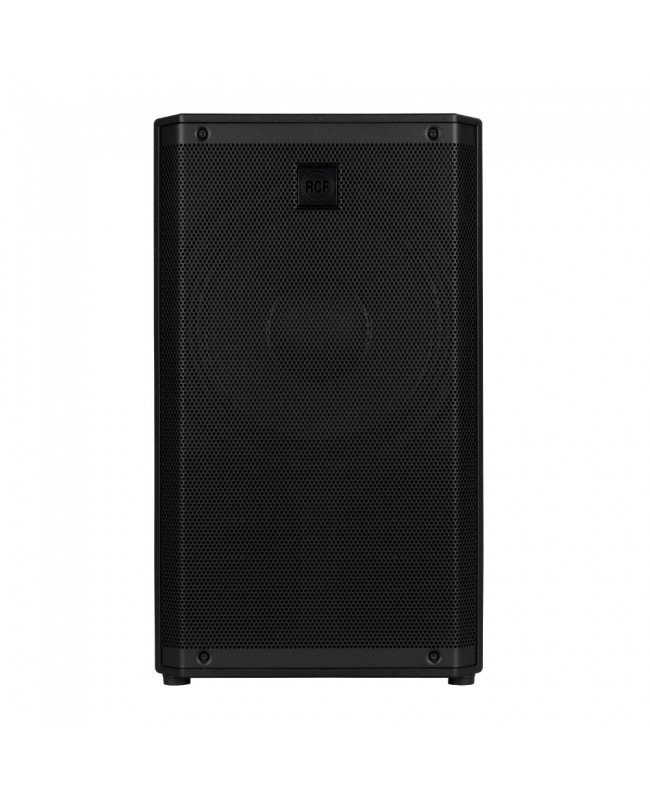

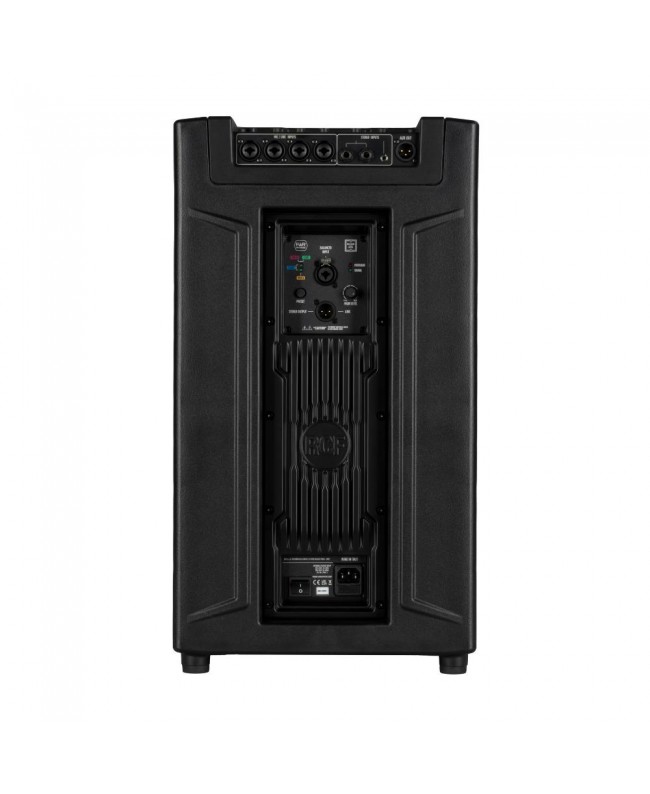

  • 12" High-Power Woofer
  • Enhanced Coverage And Clarity

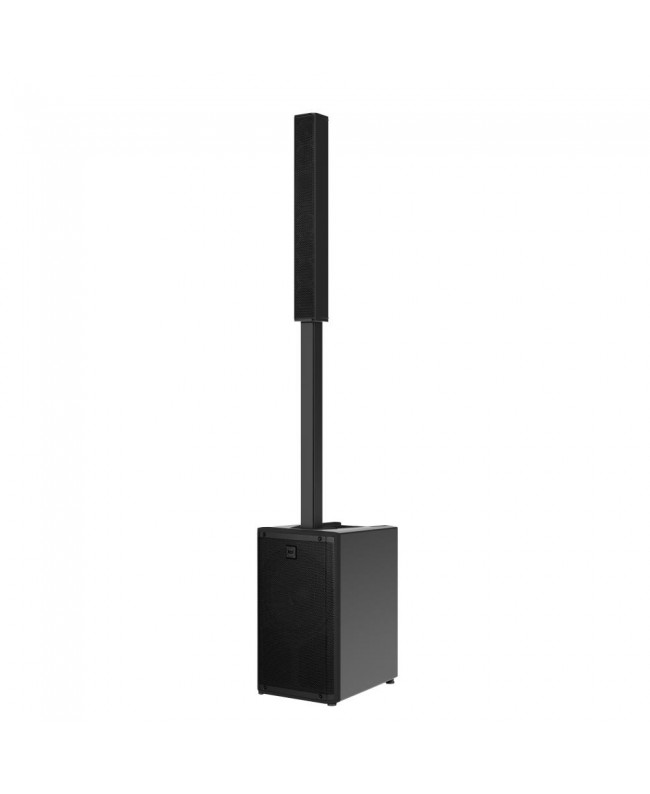

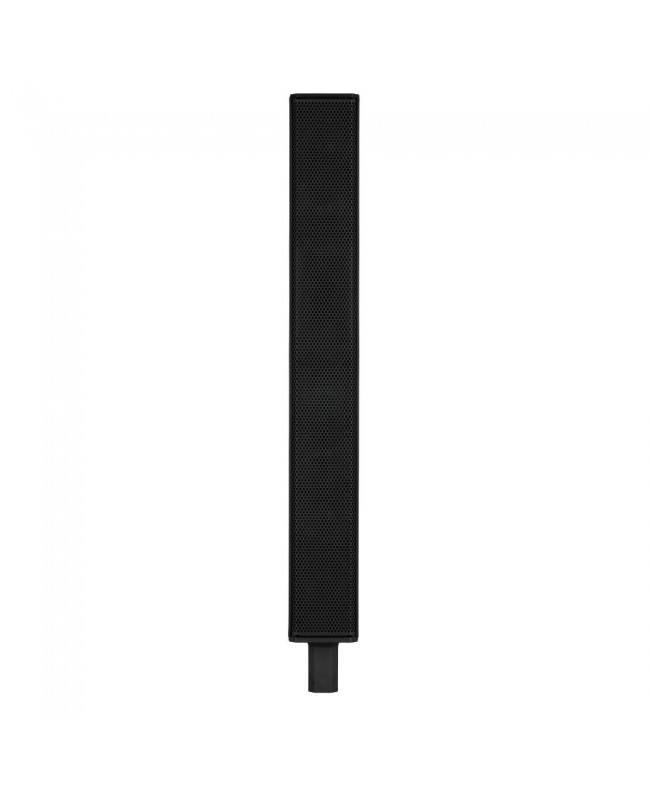

  • Sleek Composite Cabinet With Aluminum Stand Mount
  • Top Speaker Padded Carrying Bag Included

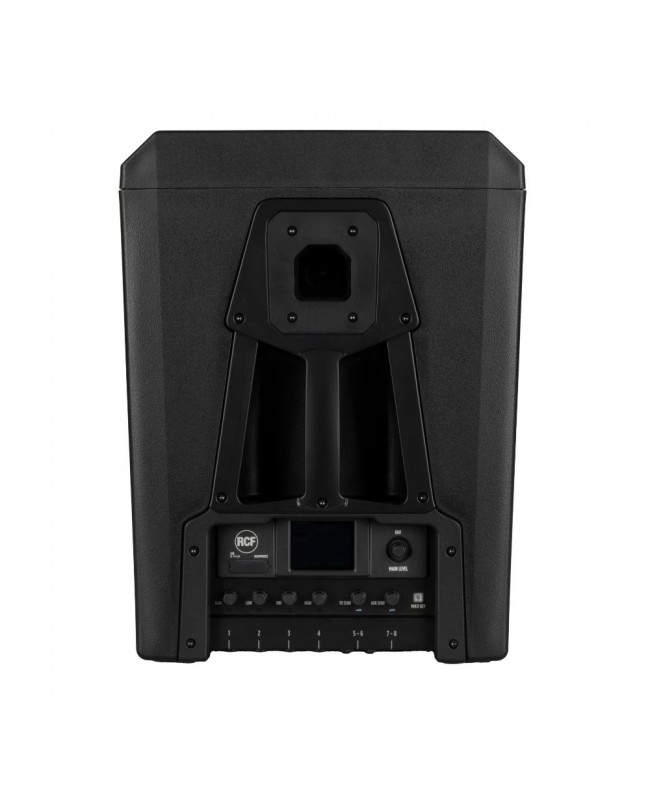

EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. A 1.75" compression driver on a 120° × 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3" transducers and a high-power 12" bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.

  • 40 Hz: 20,000 Hz
  • Horizontal Coverage Angle: 120°
  • Vertical Coverage Angle: 40°
  • Compression Driver: 1 X 0.75'' neodymium, 1.75'' voice coil
  • Full-range: 6 X 3.0'' neodymium, 1.0'' voice coil
  • Woofer: 1 X 12'', 2.5'' voice coil
  • INPUT/OUTPUT SECTION: Input Signal
  • Balanced/Unbalanced: Input Connectors
  • XLR/Jack Combo: Output Connections
  • XLR: Input Sensitivity
  • 2 DBu/+4 dBu: PROCESSOR SECTION
  • Crossover Frequency: 200 Hz/1800 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Digital mixer controlled by touch screen and encoders: POWER SECTION
  • Total Power: 2100 W Peak
  • High Frequencies: 700 W Peak
  • Low Frequencies: 1400 W Peak
  • Cooling: Convection
  • Connections: VDE
  • 20 Hz: 20 Hz
  • 0.003% A-Weighted: PROCESSING
  • Processing Channels: 8
  • Signal Processing: 32-Bit
  • A/D: D/A Conversion
  • Dynamic Range: 114
  • Mic: 4
  • Storable Remote-Controlled Gain: Yes
  • 0 dB: 36 dB
  • 114 DBu A-Weighted: Microphone Input Impedance (kΩ)
  • 20 Hz: 400 Hz
  • +48 V Phantom Power: Yes
  • Mono Line: 4
  • 0 dB: 36 dB
  • Line Input Impedance (kΩ): 10 KΩ
  • A/D Dynamic Range (dB): 120 dB
  • Stereo Line: 2
  • 0 dB: 0 dB
  • Line Input Impedance (kΩ): 24 KΩ
  • Main MIX: 1
  • FX Send: 1
  • AUX Send: 1
  • AUX Output: 1
  • Headphones: 1
  • OUTPUT SPECIFICATIONS: Main Out Impedance (ohms)
  • Main Out Level (dBu): 20 DBu
  • Aux Out Impedance (ohms): 150 Ohms
  • Aux Out Level (dBu): 20 DBu
  • Headphone Output Impedance (ohms): 100 Ohms
  • Headphone Output Level (dBm): 20 DBm
  • D/A Dynamic Range (dB): 118 dB
  • RCF Compressors: Compressors on MIC/LINE CH1 to CH4 Inputs
  • EQ: Input EQ
  • 1 Semi-Parametric / 2 Shelving: Description
  • 3-Band EQ: High and Low band shelving, MID band peak on INPUT
  • 8-Band EQ: 6 Full Parametric, 1 High Shelving and 12dB/Oct HPF on amplifier and MAIN output.
  • AUX SEND: AUX
  • FX POST: 1
  • Effects Sends: 1
  • Main OUT Processor: 1
  • Main OUT Type: MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.
  • ELECTRICAL SPECIFICATIONS: Power Supply
  • Internal: STANDARD COMPLIANCE
  • Safety Standards: CE compliant
  • PHYSICAL SPECIFICATIONS: Cabinet/Case Material
  • PP Composite: Handles
  • 1 Top: Pole Mount/Cap
  • Quick-fit socket: Grille
  • Steel: Color
  • Black, White: RAL 9003
  • Height: 2080 mm / 81.89 inches
  • Width: 350 mm / 13.78 inches
  • Depth: 460 mm / 18.11 inches
  • Weight: 28.8 kg / 63.49 lbs
