Ferrofish Pulse16 AE

Features:

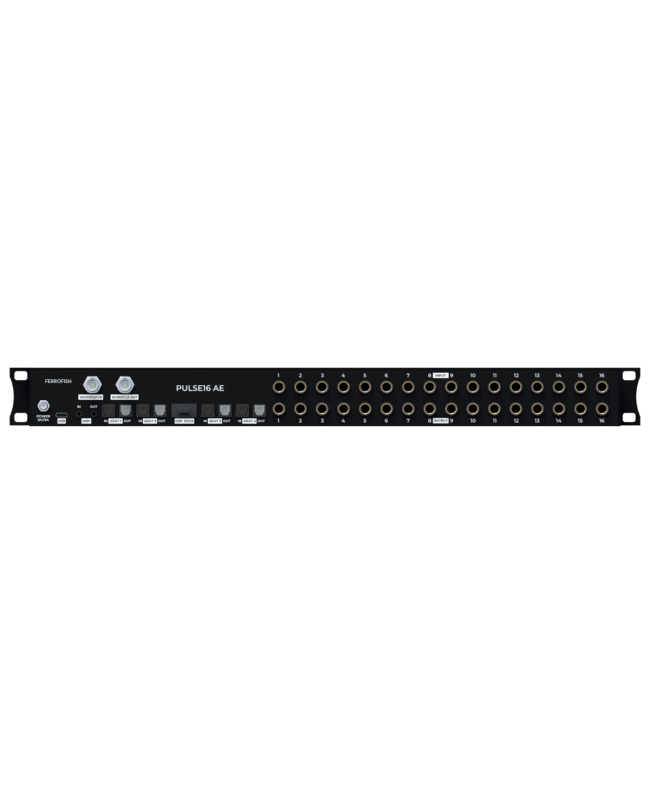

• Analog I/O
• 16 balanced TRS inputs (¼ inch / 6.3 mm)
• 16 balanced TRS outputs (¼ inch / 6.3 mm)
• Headphone output (¼ inch / 6.3 mm)

ADAT connectivity

• 4 ADAT input ports
• 4 ADAT output ports
• Supports SMUX standard for higher sample rates: 32 channels at 48 kHz, 16 channels at 96 kHz, 8 channels at 192 kHz

Clocking

• Word Clock input and output (BNC connectors)
• High-stability internal clock or external synchronization via ADAT or Word Clock

Routing

• Channel-by-channel routing

Signal monitoring

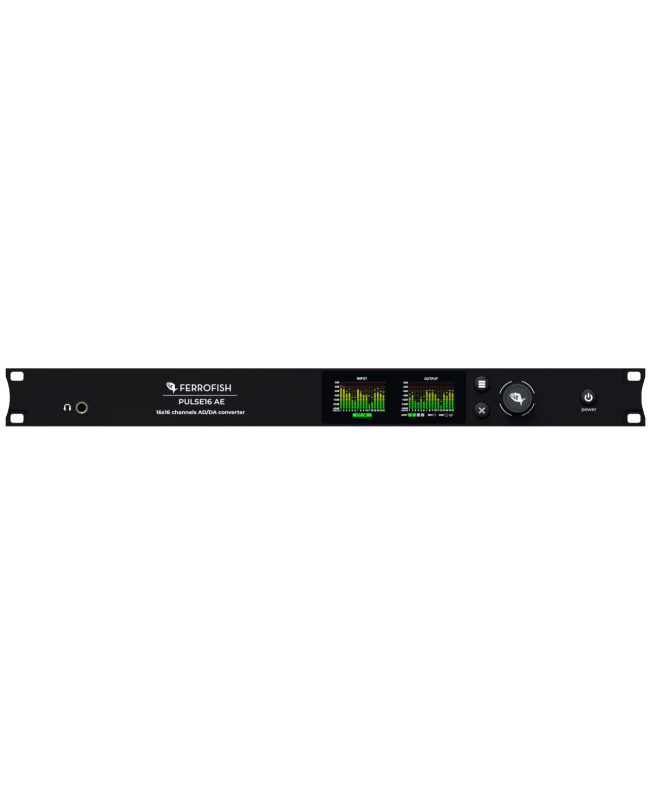

• High-resolution front-panel display for monitoring input and output levels
• Multicolor LED meters for clear visual feedback

Controls and user interface

• Navigation and configurations simplified by the presence of a large potentiometer and control buttons on the front panel

Connectivity

• USB-C for remote configuration via Ferrofish RemoteFish software
• Remote control via MIDI control change messages (MIDI CC)
• MIDI port for firmware upgrades and future features

DSP processing

• Expandable via optional DSP stick

Highlights:

1. Next-generation ESS converters for superior audio quality

ESS ES9017 (D/A) and ESS ES9840Q (A/D) offer improved dynamic range and ultra-low THD+N.

2. Optional DSP expansion for futtri upgrades. Optional DSP stick enables advanced audio processing.

3. Professional connectivity and operation 16 balanced analog I/O, 4x ADAT I/O, Word Clock, USB-C for RemoteFish software, MIDI remote control, plus high-resolution front displays for real-time signal monitoring.

4. Modern menu navigation and flexible routing Intuitive user interface with per-channel routing.

5. Seamless integration into workflow Design, usability and reliability consistent with the Pulse8 AE / A32pro family, ensuring ease of adoption and compatibility. Supports MIDI controller messages.
