PTZOptics Studio 4K 20X white Digital Film Cameras
  • -25%
  • New

PTZOptics Studio 4K 20X white

€2,031.00
€1,524.00 -25%
Tax included
Lowest price within the last 30 days: €1,524.00

Hive-Linked camera, 20x optical zoom, 4K resolution up to 60 fps, 67.8 DFOV | 60.7 HFOV, 3 simultaneous outputs, PoE+ power supply, white

Out of Stock

Free shipping

Compare

wishlist

PTZOptics Studio 4K 20X white



The PT20X-STUDIO-4K-WH-G3 is an advanced Hive-Linked camera, which integrates PTZOptics and #039; Hive functionality for remote control via the cloud, without the need for additional hardware, Plug-ins or extra software, designed to offer the highest video quality and extraordinary versatility. This camera features a 20x optical zoom and an 8 MP Sony UHD CMOS sensor, allowing it to capture 4K resolution video up to 60 fps. The PT20X-STUDIO-4K-WH-G3 supports simultaneous outputs via HDMI / SDI and #43; IP and #43; RTMP and #43; NDI, HDMI / SDI and #43; USB, HDMI / SDI and #43; IP and #43; USB, offering unmatched flexibility for various applications.

The camera is compatible with NDI|HX3, allowing for seamless integration into various video production setups. The HX3 means superior performances and amp; ultra-low latency (under 100 ms).

Power is supplied via Po. E and #43; (Power over Ethernet) or a power supply.

The high-quality construction and discreet profile make it an excellent choice for professional environments. In addition, the camera is compatible with a wide range of free software for management, control, color correction and automatic tracking.

  • Color white.
  • User benefits
  • Maximum resolution 4K and #64; 60 fps
  • 20X optical zoom
  • Compact and modern fixed design
  • Central control and management of multiple cameras from anywhere, conveniently via a web browser, via Hive-Linked
  • Supports simultaneous outputs: HDMI2.0 or 3G-SDI, plus IP Video [RTMP(S), SRT, RTSP, RTP], and either USB 3.0 or NDI HX3 as outputs
  • Free software for PTZ Optics users
  • Various mounting options
  • Application areas
  • Streaming meetings
  • Religious services
  • Courtrooms
  • Sports events
  • Security
  • Technical characteristics
  • Camera and lens
  • Image sensor and lens: 1/2.8 CMOS, 8 MP (8.4 M effective pixels)
  • Digital zoom: 16x

Resolution and frame rate

  • HDMI: 3840 x 2160p 60 / 59.94 / 50 / 30 / 29.97 /25, 1920 x 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25, 1920 x 1080i 60 / 59.94 / 50, 1280 x 720p 60 / 59.94
  • SDI: 1920 x 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25, 1920 x 1080i 60 / 59.94 / 50, 1280 x 720p 60 / 59.94 / 50
  • Optical lens focal length (zoom): f = 4.7 - 94 mm, F1.6 - F3.6
  • Optical lens field of view, horizontal and vertical: H 3.5° - 60.7° | V 1.9° - 34.1°
  • Display field of view: 67.8°
  • Min lux: 0.5 Lux at (F1.8, AGC ON)
  • Shutter: 1/30 s - 1/10,000 s
  • Presets: 255 presets
  • Presets accuracy: 0.1°
  • Image flip: supported
  • Image mirror: supported
  • Image freeze: supported

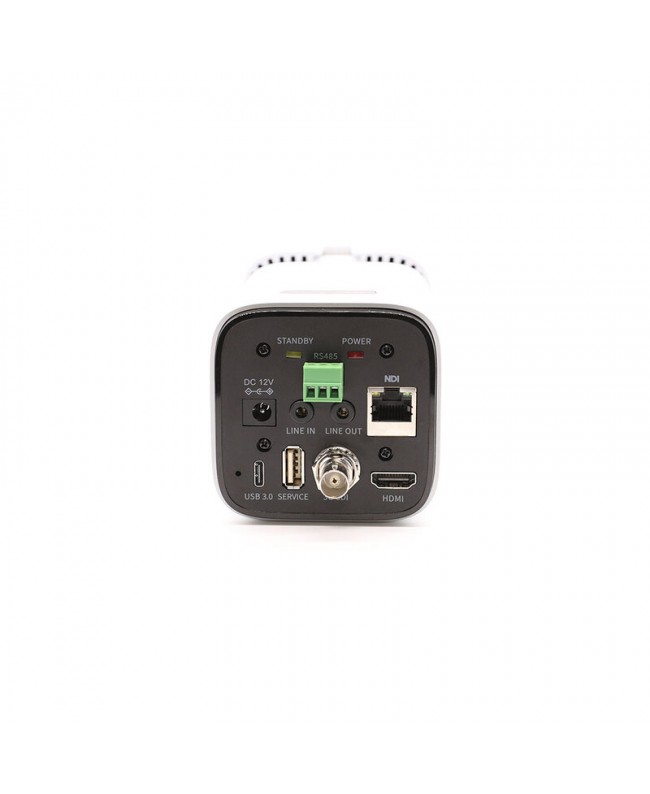

  • Connections

HD video output

  • 1 X RJ45: 10/100/1000M adaptive Ethernet port | NDI HX3 enabled
  • 1 X HDMI: version 2.0
  • 1 X USB: 3.0 Type C
  • 1 X 3G-SDI: BNC type, 300 mVp-p, 75 ohm, along to SMPTE 424M
  • Audio interface: 1 x 3.5 mm line level input, 1 x 3.5mm line level output

USB

  • YUY2: max. resolution 1920 x 1080p at 30 fps
  • MJPEG: max. resolution 3840 x 2160p at 30fps
  • H.264 AVC and SVC: max. resolution 3840 x 2160p at 30 fps

RTSP/NDI HX3 only

  • H.265 max. resolution 3840 x 2160p at 60 fps
  • Compression standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI HX3 only)
  • UVC version supported: UVC 1.1 - 1.5
  • Supported protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI HX3, SRT, Multicast, etc.
  • IR: 4 x IR addresses, max. distance 9 m
  • Power supply: JEITA type (DC IN 12 V) / PoE+ (802.3at)
  • Current consumption: max. 2 A
  • Power consumption: max. 18 W
  • Physical specifications
  • Material: aluminum, plastic
  • Color: gray or white
  • Working environment: indoor
  • Humidity range: 10% - 80%
  • Operating temperature: -10 to 40 °C
  • Storage temperature: -40 to 60 °C
  • Dimensions (L x W x H): 145 x 76 x 78.5 mm
  • Weight: 0.64 kg

POP-PT20X-STUDIO-4K-WH-G3
