Blackmagic Design Blackmagic PYXIS 12K EF Digital Film Cameras
  • -27%
  • New

Blackmagic Design Blackmagic PYXIS 12K EF

€8,111.00
€5,888.00 -27%
Tax included
Lowest price within the last 30 days: €5,888.00

Full-frame 12K (12,288 x 8040) RGBW digital film camera with 16 stops of dynamic range, EF mount, dual CFexpress slots, records Blackmagic RAW with proxy support, 4 touchscreen, 12G-SDI output, USB-C external recording, 10G Ethernet connectivity

Qty

In Stock

Delivery

Do You want Your order by Monday, 29/06/2026? Order within 4 hours and 35 minutes

Free shipping

Compare

wishlist

Blackmagic Design Blackmagic PYXIS 12K EF

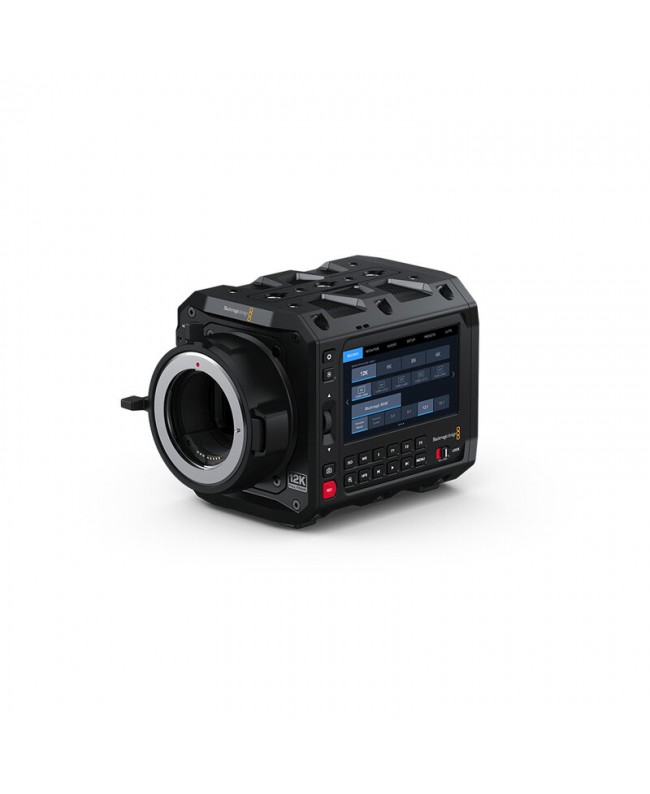

The Blackmagic PYXIS 12K EF is a full-frame cinema camera that combines flagship performance with a compact, modular body. It and #039;s designed to deliver the highest image quality in a lightweight, versatile package, making it ideal for both a main camera for independent productions, documentaries, fashion, travel and corporate shoots, and as a B-camera (a second camera used alongside the main camera to expand scene coverage or perform specific tasks) on high-end feature films and television series.

The 12K (12,288 x 8,040) RGBW sensor with a built-in optical low pass filter is a significant improvement over traditional Bayer sensors. The RGBW structure provides more accurate color rendition, improved color separation and superior handling of highlights and shadows, along with 16 stops of dynamic range.

In-sensor scaling technology allows the camera to be used as a 4K, 8K, or 12K camera without cropping the sensor: the PYXIS 12K EF always uses the entire surface of the full-frame sensor, internally resampling the 12K image to generate 8K or 4K without cropping. This ensures complete visual consistency, especially in productions that alternate between different resolutions or require ultra-high-definition VFX, green screen, or plate material.

The EF mount allows the use of Canon full-frame or compatible third-party lenses.

The PYXIS 12K EF records internally in 12-bit Blackmagic RAW in all supported resolutions and can simultaneously generate H.264 proxies, facilitating fast, collaborative, cloud-based workflows.

The camera features dual CFexpress slots, a high-speed USB-C port for SSD recording, 10G Ethernet for instant transfers and automatic uploads to Blackmagic Cloud, 12G-SDI output, mini-XLR audio and Time Code.

Workflow is one of the camera and #039;s strengths: the use of a RAW codec designed for post-production eliminates the limitations typical of mirrorless cameras that use compressed codecs, simplifying the entire process from shooting to finishing.

In its segment, one of the most crowded on the market, the PYXIS 12K EF clearly stands out thanks to its full-frame RGBW sensor, full internal RAW recording, superior image performance compared to and #34;cine-like and #34; mirrorless cameras, uncropped 4K / 8K / 12K versatility, and an extremely competitive price/performance ratio.

Its image quality and operational flexibility also make it an ideal choice for rental companies, who can offer it as a 4K, 8K, or 12K camera depending on the customer and #039;s needs.

  • Next generation 12K RGBW sensor
  • Modular and highly configurable body
  • The box-style design of the PYXIS 12K EF is designed to adapt to any configuration:
  • Lightweight rigs for handheld shooting
  • Setups for gimbals, drones, arms, vehicles, etc.
  • Complete cinema setups with matte boxes, follow focus, and professional accessories
  • Professional recording and workflow
  • Image quality and operational flexibility
  • For all these reasons, the PYXIS 12K EF is particularly suitable for:
  • Independent operators (documentaries, travel, fashion, lifestyle, corporate)
  • Directors of photography looking for a compact A-camera
  • Productions requiring a B-camera that integrates seamlessly with third-party cameras
  • User benefits
  • Cinematic image quality with a full-frame 12K RGBW sensor and 16 stops of dynamic range
  • A single camera for 4K, 8K, and 12K without a crop, ideal for mixed productions and VFX
  • Modular body configurable for any type of rigging
  • Professional RAW workflow with simultaneous proxies
  • Native cloud integration with fast transfers and remote collaboration
  • Complete connectivity for multi-camera and broadcast productions
  • Blackmagic ecosystem with Da. Vinci Resolve Studio included
  • Price/performance ratio
  • Areas of use
  • High-resolution film and commercial productions
  • Fiction, TV series, and premium content with HDR workflows
  • Documentaries, travel, and lightweight productions with A-camera quality
  • Multi-camera productions, events, and advanced broadcast
  • Shooting for VFX, green screen, CGI, and ultra-high-resolution plates
  • Cloud-based workflow for distributed teams
  • Corporate, fashion, music, and lifestyle productions
  • Fixed installations in big auditoriums
  • Rentals requiring a versatile, high-utilization camera
  • Technical characteristics
  • Camera features
  • Effective sensor size: 35.64 mm x 23.32 mm (large format)
  • Pixel pitch: 2.9 µm

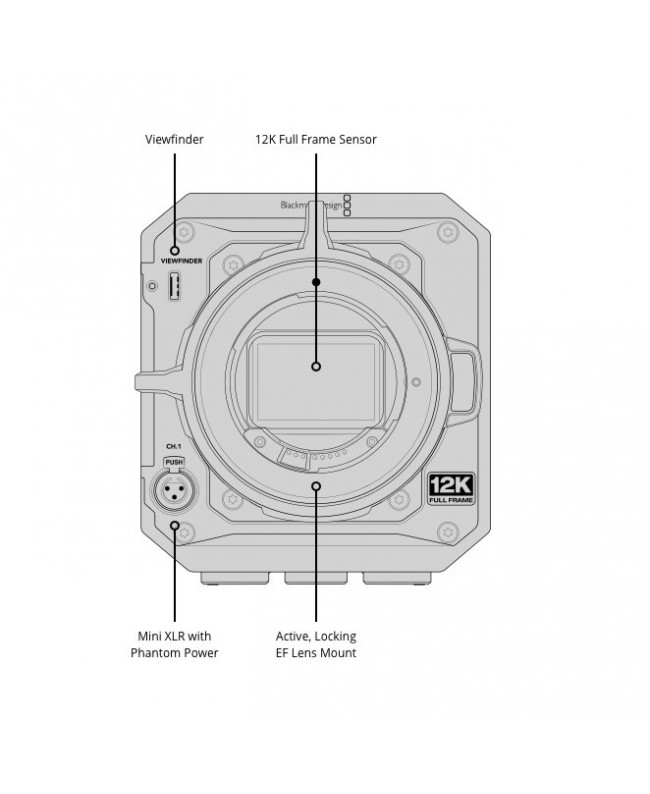

  • Lens mount: active, locking EF lens mount
  • Lens control: iris and focus on supported lenses
  • Dynamic range: 16 stops
  • Native ISO: 800
  • Shooting resolutions: 12,288 x 8040 (12K 3:2 open gate), 12,288 x 6912 (12K 16:9), 12,288 x 6480 (12K 17:9), 12,288 x 5112 (12K 2.4:1), 9648 x 8040 (12K 6:5), 9408 x 6264 (9K 3:2), 8688 x 4896 (9K 16:9), 9312 x 4896 (9K 17:9), 9312 x 3864 (9K 2.4:1), 7680 x 6408 (9K 6:5), 8192 x 5360 (8K 3:2 open gate), 8192 x 4608 (8K 16:9), 8192 x 4320 (8K 17:9), 8192 x 3408 (8K 2.4:1), 6432 x 5360 (8K 6:5), 4096 x 2680 (4K 3:2 open gate), 4096 x 2304 (4K 16:9), 4096 x 2160 (4K 17:9), 4096 x 1704 (4K 2.4:1), 3216 x 2680 (4K 6:5)
  • Frame rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported, maximum sensor frame rate dependent on resolution selected
  • High frame rates: 12K (3:2 open gate) up to 40 fps, 12K (16:9) up to 45 fps, 12K (17:9) up to 50 fps, 12K (2.4:1) up to 60 fps, 12K (6:5) up to 40 fps, 9K (3:2 super 35) up to 50 fps, 9K (16:9 super 35) up to 65 fps, 9K (17:9 super 35) up to 65 fps, 9K (2.4:1 super 35) up to 80 fps, 9K (6:5 super 35) up to 50 fps, 8K/4K (3:2 open gate) up to 72 fps, 8K/4K (16:9) up to 84 fps, 8K/4K (17:9) up to 90 fps, 8K/4K (2.4:1) up to 112 fps, 8K/4K (6:5) up to 72 fps
  • Focus: Auto focus available using compatible lenses
  • Iris control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings using compatible lenses
  • Screen dimensions: 4 1920 x 1080
  • Screen brightness: 1500 nits
  • Screen type: LCD capacitive touchscreen
  • Metadata support: automatically populated lens data from electronic L-Mount lenses, automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes, a 3D LUT can also be embedded in metadata of Blackmagic RAW files

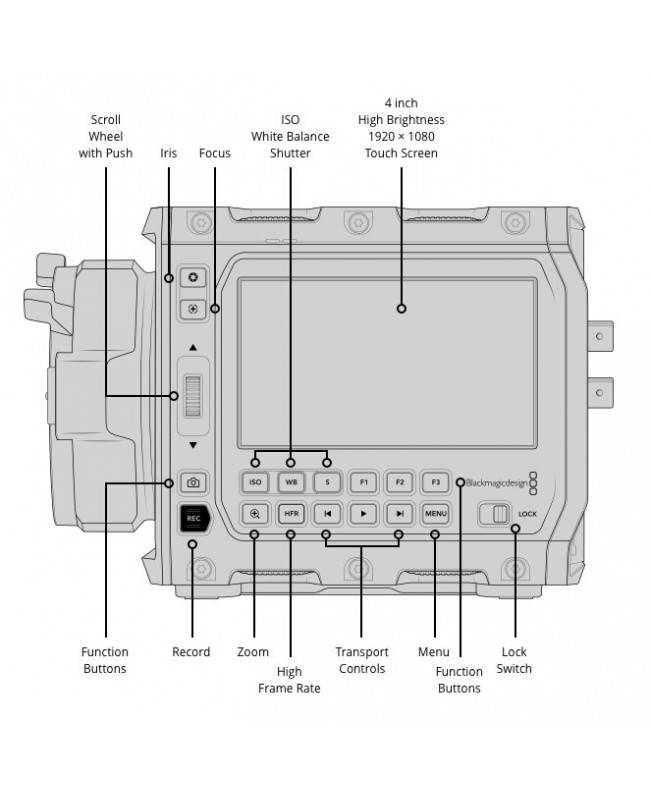

  • Controls: touchscreen menus on 4 inch screen, push buttons for other controls, 3 assignable shortcut keys
  • Timecode clock: highly accurate Time Code clock with less than 1 frame drift every 8 hours

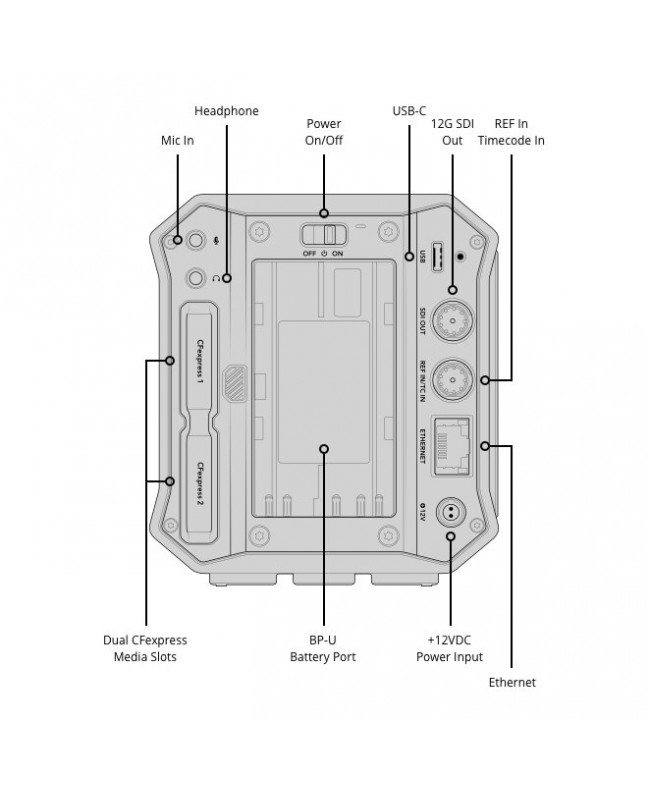

  • Connections
  • Total video inputs: none
  • Total video outputs: 1 x 12G-SDI up to 2160p 60, 1 x viewfinder USB-C with power, data, video and locking connector
  • Analog audio inputs: 1 x mini XLR analog audio in, switchable between mic with phantom power support and line level (up to +14 dBu), 1 x 3.5 mm stereo input
  • Analog audio outputs: 1 x 3.5 mm headphone jack
  • Reference inputs: Tri-sync/Black burst and Time Code
  • Computer interface: USB type-C for external drive recording, PTP camera control and software updates
  • Ethernet: 1 x 10 Gb/s RJ-45 connector supporting 10/100/1000/10G BASE-T
  • Standards
  • HD video standards: 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
  • ULTRA HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
  • SDI compliance: SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
  • SDI audio sampling: television standard sample rate of 48 kHz and 24 bit
  • Audio
  • Microphone: integrated stereo microphone
  • Built in speaker: 1 x mono speaker
  • Media
  • Media: 2 x CFexpress type B card slot, 1 x 10 Gb/s USB-C port for external media for Blackmagic RAW and H.264 proxy recording
  • Media format: can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
  • Supported codecs
  • Blackmagic RAW constant bitrate 3: 1, Blackmagic RAW constant bitrate 5:1, Blackmagic RAW constant bitrate 8:1, Blackmagic RAW constant bitrate 12:1, Blackmagic RAW constant bitrate 18:1, Blackmagic RAW constant quality Q0, Blackmagic RAW constant quality Q1, Blackmagic RAW constant quality Q3, Blackmagic RAW constant quality Q5, H.264 proxy in 1920 x 1080, 8-bit 4:2:0
  • Control
  • External control: Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles, iPad control, Bluetooth control, USB PTP camera control, external control of some camera settings, focus, iris and zoom with compatible lenses
  • Camera control: REST API over Ethernet
  • Cloud synchronization
  • Cloud synchronization: Network Time Protocol support allows you to sync the time on your camera whenever connected to a network with any NTP server of your choice
  • Network management
  • NTP: Network Time Protocol support to sync camera time with NTP server
  • Web media manager: using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera
  • FTP: file download from any drive attached to the camera using FTP
  • SMB: file sharing using SMB
  • Storage features
  • Storage type: 2 x CFexpress type B and 1 x high speed USB-C expansion port for external media
  • Recording modes: standard record mode and pre record mode with assignable pre record duration of 5, 10, 20 or 30 seconds and 1, 2, 5 or 10 minutes

Storage rates

  • 12K 12288 x 8040 BLACKMAGIC RAW 3:1: 1194 MB/s
  • 12K 12288 x 8040 BLACKMAGIC RAW 8:1: 448 MB/s
  • 12K 12288 x 8040 BLACKMAGIC RAW 12:1: 299 MB/s
  • 12K 12288 x 8040 BLACKMAGIC RAW 18:1: 199 MB/s
  • 12K 12288 x 8040 BLACKMAGIC RAW Q0: 398 to 1433 MB/s
  • 12K 12288 x 8040 BLACKMAGIC RAW Q1: 326 to 796 MB/s
  • 12K 12288 x 8040 BLACKMAGIC RAW Q3: 179 to 448 MB/s
  • 12K 12288 x 8040 BLACKMAGIC RAW Q5: 120 to 358 MB/s
  • 9K 9408 x 6264 BLACKMAGIC RAW 3:1: 714 MB/s
  • 9K 9408 x 6264 BLACKMAGIC RAW 8:1: 268 MB/s
  • 9K 9408 x 6264 BLACKMAGIC RAW 12:1: 179 MB/s
  • 9K 9408 x 6264 BLACKMAGIC RAW 18:1: 119 MB/s
  • 9K 9408 x 6264 BLACKMAGIC RAW Q0: 238 to 857 MB/s
  • 9K 9408 x 6264 BLACKMAGIC RAW Q1: 195 to 476 MB/s
  • 9K 9408 x 6264 BLACKMAGIC RAW Q3: 107 to 268 MB/s
  • 9K 9408 x 6264 BLACKMAGIC RAW Q5: 72 to 214 MB/s
  • 8K 8192 x 5360 BLACKMAGIC RAW 3:1: 533 MB/s
  • 8K 8192 x 5360 BLACKMAGIC RAW 5:1: 320 MB/s
  • 8K 8192 x 5360 BLACKMAGIC RAW 8:1: 200 MB/s
  • 8K 8192 x 5360 BLACKMAGIC RAW 12:1: 133 MB/s
  • 8K 8192 x 5360 BLACKMAGIC RAW Q0: 320 to 639 MB/s
  • 8K 8192 x 5360 BLACKMAGIC RAW Q1: 228 to 533 MB/s
  • 8K 8192 x 5360 BLACKMAGIC RAW Q3: 133 to 400 MB/s
  • 8K 8192 x 5360 BLACKMAGIC RAW Q5: 100 to 266 MB/s
  • 4K 4096 x 2680 BLACKMAGIC RAW 3:1: 135 MB/s
  • 4K 4096 x 2680 BLACKMAGIC RAW 4:1: 101 MB/s
  • 4K 4096 x 2680 BLACKMAGIC RAW 5:1: 81 MB/s
  • 4K 4096 x 2680 BLACKMAGIC RAW 6:1: 68 MB/s
  • 4K 4096 x 2680 BLACKMAGIC RAW Q0: 202 to 336 MB/s
  • 4K 4096 x 2680 BLACKMAGIC RAW Q1: 135 to 311 MB/s
  • 4K 4096 x 2680 BLACKMAGIC RAW Q3: 101 to 238 MB/s
  • 4K 4096 x 2680 BLACKMAGIC RAW Q5: 81 to 202 MB/s

Recording formats

  • Full sensor resolutions: BLACKMAGIC RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at 12288 x 8040, 12288 x 6912, 12288 x 6480, 12288 x 5112 and 9648 x 8040 with film, extended video or video dynamic range or custom 3D LUT plus simultaneous H.264 1920 x 1080 proxies
  • Super 35 windowed resolutions: BLACKMAGIC RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at 9408 x 6264, 8688 x 4896, 9312 x 4896, 9312 x 3864 and 7680 x 6408 with film, extended video or video dynamic range or custom 3D LUT plus simultaneous H.264 1920 x 1080 proxies
  • Scaled 8K resolutions: BLACKMAGIC RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 8192 x 5360, 8192 x 4608, 8192 x 4320, 8192 x 3408 and 6432 x 5360 with film, extended video or video dynamic range or custom 3D LUT plus simultaneous H.264 1920 x 1080 proxies
  • Scaled 4K resolutions: BLACKMAGIC RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at 4096 x 2680, 4096 x 2304, 4096 x 2160, 4096 x 1704 and 3216 x 2680 with film, extended video or video dynamic range or custom 3D LUT plus simultaneous H.264 1920 x 1080 proxies
  • Software included
  • Blackmagic OS, DaVinci Resolve Studio for Mac and Windows including activation key, Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK, Blackmagic RAW Speed Test
  • Operating systems
  • Mac: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later
  • Windows: Windows 10 and 11
  • Power requirements
  • Power supply: 1 x external 18 VDC 90 W power supply
  • External power input: 1 x 2-pin Lemo compatible locking connector
  • Battery type: BP-U series
  • Power: 12 to 18 VDC
  • Accessories
  • Optional accessories: Blackmagic URSA Cine Handle, Blackmagic URSA Cine EVF, Blackmagic PYXIS Rosette Plate, Blackmagic PYXIS Monitor, Blackmagic PYXIS Monitor Kit, Blackmagic PYXIS Monitor EVF Kit
  • Environmental specifications
  • Operating temperature: 0 to 40 °C
  • Storage temperature: -20 to 45 °C
  • Relative humidity: 0% to 90% non-condensing
  • Physical specifications

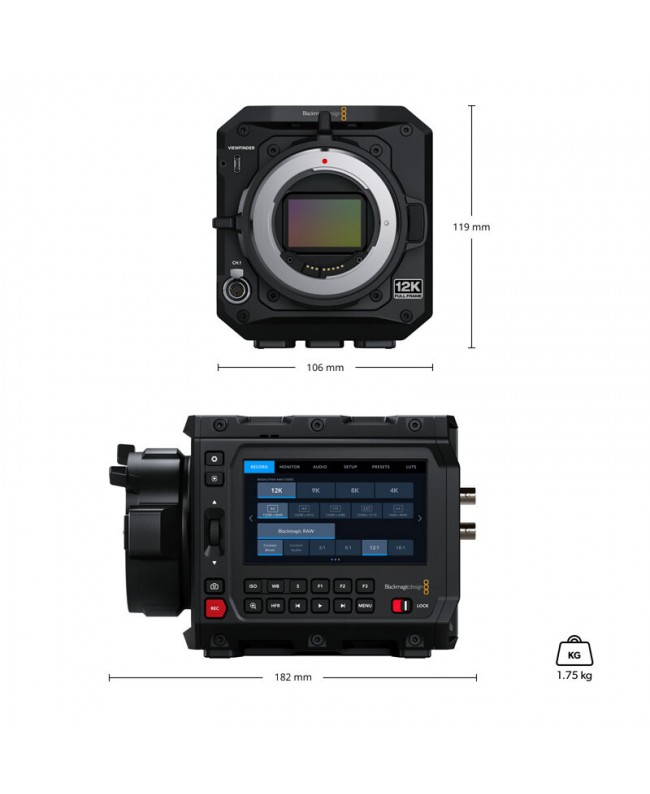

  • Dimensions: 10.6 x 11.9 x 18.2 cm
  • Weight: 1.75 kg
  • What's in the box
  • Blackmagic PYXIS 12K EF
  • Lens turret dust cap
  • PYXIS standard plate
  • PYXIS SSD plate
  • 90 W power supply with locking connector and international adapters
  • Welcome booklet
  • DaVinci Resolve Studio activation key

BLM-CINECAMCPYXN12LFEF
