Blackmagic Design Blackmagic URSA Cine 12K LF 100G Body
€14,199.00
€10,306.00-27%
Tax included
Lowest price within the last 30 days: €10,306.00
Full-frame digital cinema camera, 36 x 24 mm RGBW full frame sensor, 12K resolution (12,288 x 8040), 16 stops dynamic range, interchangeable EF mount, built-in IR ND filters, dual HDR displays, 100G Ethernet and SMPTE-2110 support, body only without accessories

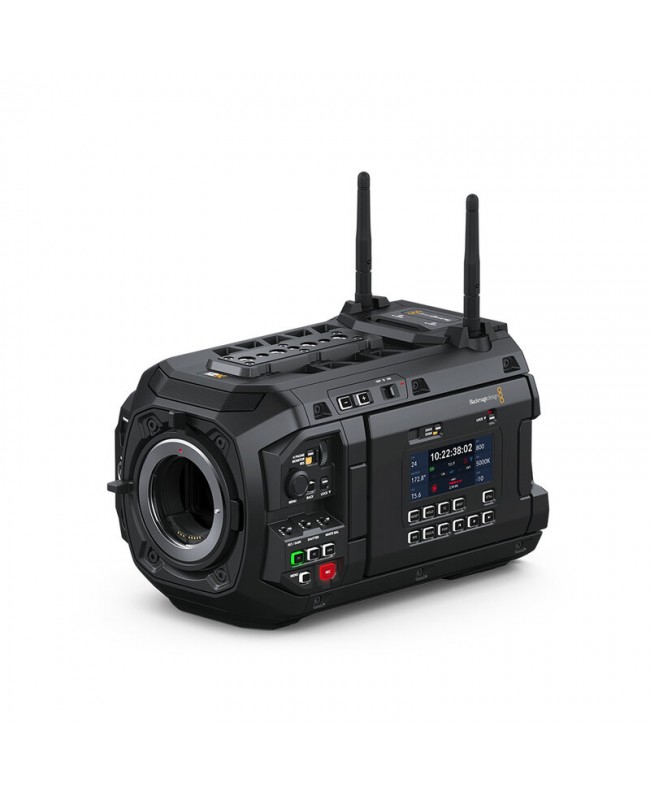

The Blackmagic URSA Cine 12K LF 100G Body is a high-end digital video camera designed for film and live production, designed for professionals who want to build a custom setup using existing accessories.
Featuring a 36 x 24 mm RGBW sensor with larger photosites, it offers a resolution of up to 12,288 x 8,040 pixels and a dynamic range of 16 stops, ensuring exceptional image quality even in the most challenging lighting conditions. Since this is the and #34;Body and #34; version, the handle, stand, power supply, battery plate, and PL mount are not included. The camera also includes a locking URSA Cine EF mount, a second 5 and #34; HDR touchscreen display with dedicated controls, built-in IR ND filters, and professional Lemo and Fischer connections.
It also features a CFexpress module for recording, a 100G Ethernet port for SMPTE-2110 live video transmission, and Wi-Fi connectivity for fast syncing to the Blackmagic Cloud. A wide range of optional accessories are compatible for even more functionality.
Designed for those looking for uncompromising cinematic performance and high frame rate live production capabilities, it and #039;s a powerful and flexible solution for high-end productions.
User benefits
12K Full-Frame RGBW Sensor
Interchangeable Lens Mount: EF as standard, PL as optional
Thanks to the new B4 mount for broadcast lenses it is able to reach 440 fps

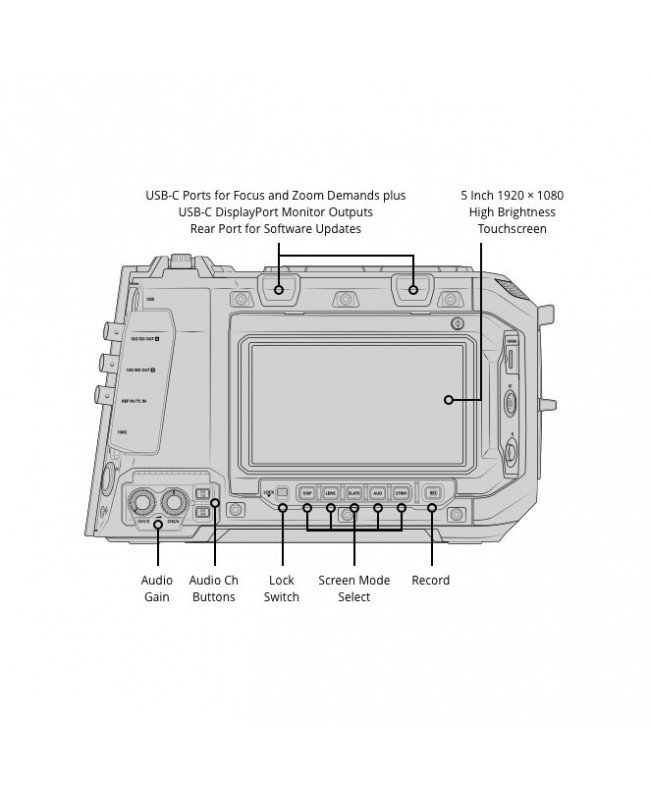

Secondary Touchscreen Display with dedicated controls for monitoring and intuitive on-set control
Built-in IR ND filters
Supports Blackmagic RAW up to 12K
100G Ethernet port with support SMPTE-2110 for live workflow
Advanced connectivity
Professional audio section with XLR inputs and phantom power. Designed for integration with Blackmagic and third-party accessories
Rugged construction
Areas of use
Film production
TV series
Commercials
VFX shoots
Nature documentaries
Live productions, sporting events, and high frame rate replays
Technical characteristics
Camera features
Effective sensor size: 35.64 x 23.32 mm
Pixel pitch: 2.9 µm

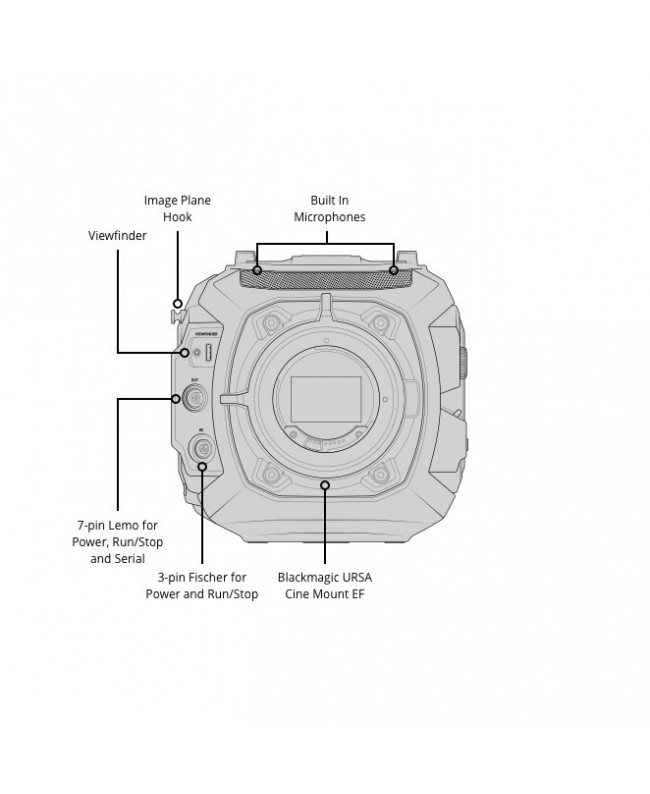

Lens mount: URSA Cine lockable EF mount, interchangeable with optional URSA Cine PL mount
Lens control: lens control of compatible EF lenses, lens data from compatible PL lenses and control of some PL lenses
Dynamic range: 16 stops
Shooting formats: 12,288 x 8040p 3:2, 12,288 x 6912p 16:9, 12,288 x 6480p 17:9, 12,288 x 5112p 2.4:1, 9648 x 8040p 6:5, 9408 x 6264p 3:2, 8688 x 4896p 16:9, 9312 x 4896p 17:9, 9312 x 3864p 2.4:1, 7680 x 6408p 6:5, 8192 x 5360p 3:2, 8192 x 4608p 16:9, 8192 x 4320p 17:9, 8192 x 3408p 2.4:1, 6432 x 5360p 6:5, 4096 x 2680p 3:2, 4096 x 2304p 16:9, 4096 x 2160p 17:9, 4096 x 1704p 2.4:1, 3216 x 2680p 6:5
High speed frame rates: 12K 3:2 up to 80 fps, 12K 17:9 up to 100 fps, 12K 2.4:1 up to 120 fps, 9K 3:2 up to 100 fps, 8K/4K 3:2 up to 144 fps, 8K/4K 2.4:1 up to 224 fps
Built-in ND filters: clear, 2-stop, 4-stop, 6-stop IR ND
Focus: peaking via focus button, auto focus with compatible lenses
Iris control: manual via wheel and touchscreen slider, auto iris via button with compatible lenses
Monitoring screens: 2 x 5 LCD capacitive touchscreen, 1920 x 1080 resolution, 1500 nit brightness + camera status screen
Metadata support: automatically populated lens data from compatible EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes
Media: Blackmagic Media Module CF includes 2 x slots for CFexpress Type B media. Also compatible with optional Blackmagic Media Module 8 TB or 16 TB
Media format: Blackmagic
Supported codecs
Blackmagic RAW constant bitrate 3: 1, 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3, Q5, H.264 1920 x 1080 8-bit 4:2:0
Control
External control: Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses
Cloud synchronization
Blackmagic Cloud
Streaming
Protocols: SRT, RTMP
Local streaming: Ethernet, Wi-Fi
Global streaming: Ethernet, Wi-Fi, USB-C cellular
Network management
NTP: Network Time Protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice
FTP: download files from any drive attached to your camera using FTP
Web media manager: using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera
SMB: file sharing using SMB
Storage features
Storage type: 2 x CFexpress Type B
Storage rates: please see the user manual
Recording formats
Blackmagic RAW 3: 1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8040], [12,288 x 6912], [12,288 x 6480], [12,288 x 5112] and [9648 x 8040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies
Blackmagic RAW 3: 1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: [9408 x 6264], [8688 x 4896], [9312 x 4896], [9312 x 3864] and [7680 x 6408] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies
Blackmagic RAW 3: 1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [8192 x 5360], [8192 x 4608], [8192 x 4320], [8192 x 3408] and [6432 x 5360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies
Blackmagic RAW 3: 1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [4096 x 2680], [4096 x 2304], [4096 x 2160], [4096 x 1704] and [3216 x 2680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies
Software
Software included: URSA Cine Blackmagic OS, DaVinci Resolve Studio for Mac and Windows including activation key, Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK
Operating systems
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10 and 11
Accessories
Optional accessories: URSA Cine EVF, PYXIS Monitor, PYXIS Monitor Kit, PYXIS Monitor EVF Kit, URSA Cine Mount PL, LPL, EF, Mount Shims, Battery Plates (B-Mount, Gold, VLock), Baseplates (15, 19), Handle, Grips, LCD Sunshade, Media Dock, Media Modules (8TB, 16TB)
Power requirements

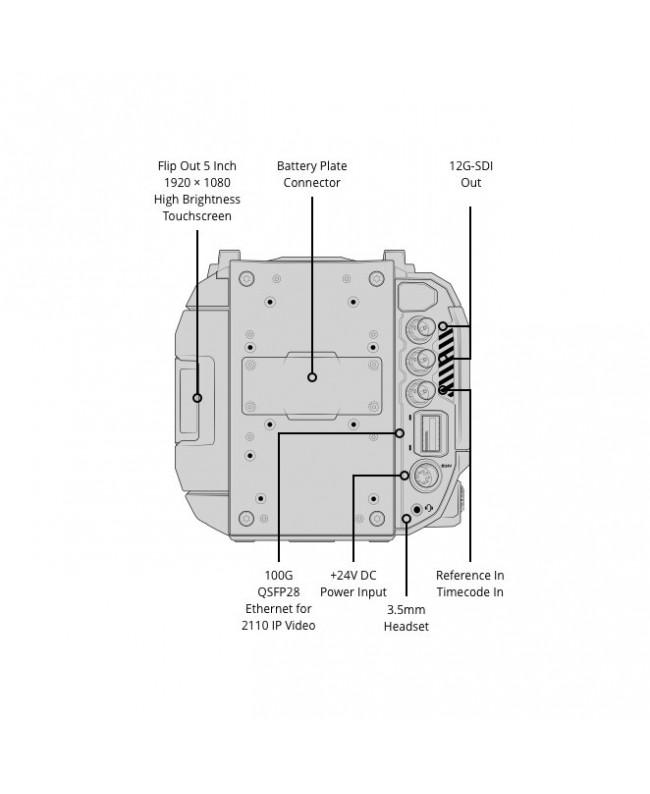

Power input: 1 x 8-pin Lemo socket for 12 V to 34 VDC
Power output: 1 x 7-pin connector with +24 VDC power output when camera is powered by +24 VDC batteries or power supply. 1 x 3-pin Fischer with +24 VDC power output when camera is powered by +24 VDC batteries or power supply. B-Mount battery plate including 2-pin connector with +12 V regulated output from camera
Environmental specifications
Operating temperature: 0 to 40 °C
Storage temperature: -20 to 45 °C
Relative humidity: 0 to 90% non-condensing
Physical specifications

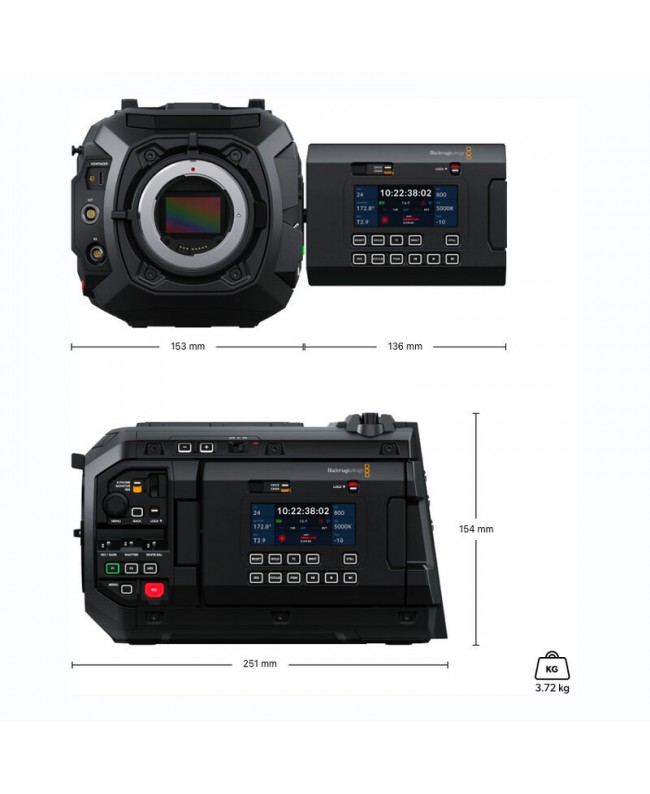

Dimensions: 25.1 x 15.4 x 15.3 cm
Weight: 3.72 kg
What's included
Blackmagic URSA Cine 12K LF 100G camera with EF lens mount
