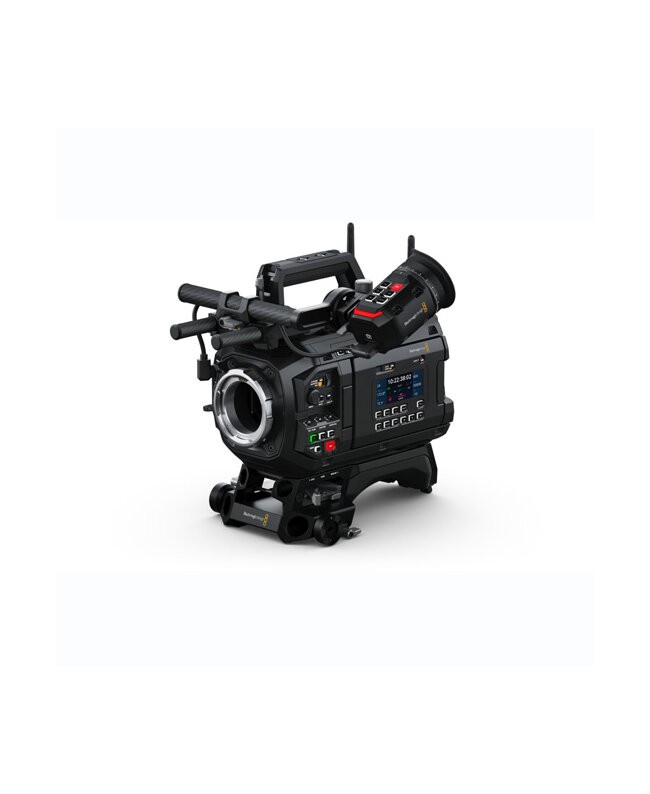

Blackmagic Design Blackmagic URSA Cine 12K LF 100G + EVF
€26,077.00
€18,930.00-27%
Tax included
Lowest price within the last 30 days: €18,930.00
Full-frame digital cinema camera with Blackmagic URSA Cine EVF, 36 x 24 mm RGBW full frame sensor, 12K resolution (12,288 x 8040), 16 stops dynamic range, interchangeable PL mount, built-in IR ND filters, dual HDR displays, 100G Ethernet and SMPTE-2110 support, delivered with Pelican 1510 case
The Blackmagic URSA Cine 12K LF 100G and #43; EVF is simply the Blackmagic URSA Cine 12K LF 100G with the Blackmagic URSA Cine EVF included.
It is a high-end digital video camera designed for film and live production. It and #039;s designed for professionals who want a complete, ready-to-use setup that can be expanded with existing accessories.
Featuring a 36 x 24 mm RGBW sensor with larger photosites, it offers a resolution of up to 12,288 x 8040 pixels and a dynamic range of 16 stops, ensuring exceptional image quality even in the most challenging lighting conditions. Unlike the Blackmagic URSA Cine 12K LF 100G Body, this configuration includes a handle, stand, power supply, battery plate, PL mount as standard and EVF (Electronic View. Finder). It also features a second 5 and #34; HDR touchscreen display with dedicated controls, built-in IR ND filters, and professional Lemo and Fischer connections.
It features a Blackmagic Media Module 8 TB for recording, a 100G Ethernet port for SMPTE-2110 live video transmission, and Wi-Fi connectivity for fast syncing to the Blackmagic Cloud. It and #039;s compatible with a wide range of optional accessories for even more functionality.
Designed for those looking for uncompromising cinematic performance and high frame rate live production capabilities, it and #039;s a powerful and flexible solution for high-end productions.
User benefits
12K RGBW full-frame sensor
Complete version includes handle, stand, power supply, battery plate, and PL mount as standard (EF mount optional, plus other dedicated mounts)
Ability to reach 440 fps with the new B4 mount for broadcast lenses
Secondary touchscreen display with dedicated controls for monitoring and intuitive on-set control
EVF supplied
Built-in IR ND filters
Supports Blackmagic RAW up to 12K
100G Ethernet with SMPTE-2110 support for live workflows
Advanced connectivity
Professional audio with XLR inputs and phantom power
Designed for integration with Blackmagic and third-party accessories
Rugged construction
Areas of use
Film production
TV series
Commercials
VFX shooting
Nature documentaries
Live production, sporting events, and high frame rate replays
Technical characteristics
Camera features
Effective sensor size: 35.64 x 23.32 mm
Pixel pitch: 2.9 µm
Lens mount: PL mount. Interchangeable with URSA Cine lockable EF mount included
Lens control: lens control of compatible EF lenses, lens data from compatible PL lenses and control of some PL lenses
Dynamic range: 16 stops
Shooting formats: 12,288 x 8040p 3:2, 12,288 x 6912p 16:9, 12,288 x 6480p 17:9, 12,288 x 5112p 2.4:1, 9648 x 8040p 6:5, 9408 x 6264p 3:2, 8688 x 4896p 16:9, 9312 x 4896p 17:9, 9312 x 3864p 2.4:1, 7680 x 6408p 6:5, 8192 x 5360p 3:2, 8192 x 4608p 16:9, 8192 x 4320p 17:9, 8192 x 3408p 2.4:1, 6432 x 5360p 6:5, 4096 x 2680p 3:2, 4096 x 2304p 16:9, 4096 x 2160p 17:9, 4096 x 1704p 2.4:1, 3216 x 2680p 6:5
High speed frame rates: 12K 3:2 up to 80 fps, 12K 17:9 up to 100 fps, 12K 2.4:1 up to 120 fps, 9K 3:2 up to 100 fps, 8K/4K 3:2 up to 144 fps, 8K/4K 2.4:1 up to 224 fps
Built-in ND filters: clear, 2-stop, 4-stop, 6-stop IR ND
Focus: peaking via focus button, auto focus with compatible lenses
Iris control: manual via wheel and touchscreen slider, auto iris via button with compatible lenses
Monitoring screens: 2 x 5 LCD capacitive touchscreen, 1920 x 1080 resolution, 1500 nit brightness + camera status screen + EVF (Electronic Viewfinder)
EVF display resolution: Full 1920 x 1080, 6.22 Million dots
EVF display type: OLED
EVF diopter range: -5 to +5
Metadata support: automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes
Controls: touchscreen menus on 5 screen, push buttons, 7 assignable shortcut keys, 6 assignable EVF keys on optional URSA Cine EVF
Time Code clock: Less than 1 frame drift every 8 hours
Connections
Total video outputs: 2
SDI rates: 1.5G, 3G, 6G, 12G
Analog audio inputs: 2 x XLR MIC / line and AES audio, Phantom power
Analog audio output: 1 x 3.5 mm headphone jack
Reference inputs: Tri-Sync, Black Burst, Timecode
Viewfinder: 1 x USB-C with video, power, control
USB-C monitor outputs: 2 x side ports for URSA Cine EVF, PYXIS Monitor, DisplayPort
Accessory ports: 1 x 7-pin Lemo EXT, 1 x 3-pin Fischer RS
Computer interface: 2 x USB-C expansion ports
Ethernet: 1 x RJ-45 100 Gb/s for sending and receiving 2110 IP video or SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming
Blackmagic RAW constant bitrate 3: 1, 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3, Q5, H.264 1920 x 1080 8-bit 4:2:0
Control
External control: Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses
Cloud synchronization
Blackmagic Cloud
Streaming
Protocols: SRT, RTMP
Local streaming: Ethernet, Wi-Fi
Global streaming: Ethernet, Wi-Fi, USB-C cellular
Network management
NTP: Network Time Protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice
FTP: download files from any drive attached to your camera using FTP
Web media manager: using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera
SMB: file sharing using SMB
Storage features
Storage type: 1 x Blackmagic Media Module 8 TB
Storage rates: please see the user manual
Recording formats
Blackmagic RAW 3: 1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 x 8040], [12,288 x 6912], [12,288 x 6480], [12,288 x 5112] and [9648 x 8040] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies
Blackmagic RAW 3: 1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: [9408 x 6264], [8688 x 4896], [9312 x 4896], [9312 x 3864] and [7680 x 6408] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies
Blackmagic RAW 3: 1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [8192 x 5360], [8192 x 4608], [8192 x 4320], [8192 x 3408] and [6432 x 5360] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies
Blackmagic RAW 3: 1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: [4096 x 2680], [4096 x 2304], [4096 x 2160], [4096 x 1704] and [3216 x 2680] with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies
Software
Software included: URSA Cine Blackmagic OS, DaVinci Resolve Studio for Mac and Windows including activation key, Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK
Operating systems
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10 and 11
Power supply: +24 VDC external power supply 100 - 240 VAC 50/60 Hz compatible with IEC C14 socket. B-Mount battery plate
Power input: 1 x 8-pin Lemo socket for 12 V to 34 VDC
Power output: 1 x 7-pin connector with +24 VDC power output when camera is powered by +24 VDC batteries or power supply. 1 x 3-pin Fischer with +24 VDC power output when camera is powered by +24 VDC batteries or power supply. B-Mount battery plate including 2-pin connector with +12 V regulated output from camera
Environmental specifications
Operating temperature: 0 to 40 °C
Storage temperature: -20 to 45 °C
Relative humidity: 0 to 90% non-condensing
Physical specifications
Dimensions: 28 x 28.1 x 15.3 cm + EVF dimensions
Weight: 6.2 kg
What's included
Blackmagic URSA Cine 12K LF 100G + EVF camera with PL lens mount
Blackmagic Media Module 8TB
Blackmagic Media Module case
Blackmagic URSA Cine handle and bolts
Blackmagic URSA Cine top rod mount
Blackmagic URSA Cine baseplate 19
Blackmagic URSA Cine battery plate B mount
Blackmagic URSA Cine rubber caps for connectors
Blackmagic URSA Cine Wi-Fi antennas
Blackmagic URSA Cine mount EF and mount screws
Blackmagic URSA Cine 24 V 250 W power supply
Blackmagic EF body cap
Blackmagic PL body cap
Plastic folding screen hood for 5 LCD
Blackmagic URSA Cine EVF
Blackmagic URSA Cine EVF rotating bracket with 19 mm carbon fibre rod
Blackmagic URSA Cine EVF bracket rod mount
Blackmagic URSA Cine EVF extension
2 Short carbon fibre 15mm rods
1 x Long USB viewfinder cable. Right angle to straight
1 x Short USB viewfinder cable. Right angle to straight
1 x Short USB viewfinder cable. Right angle to right angle
