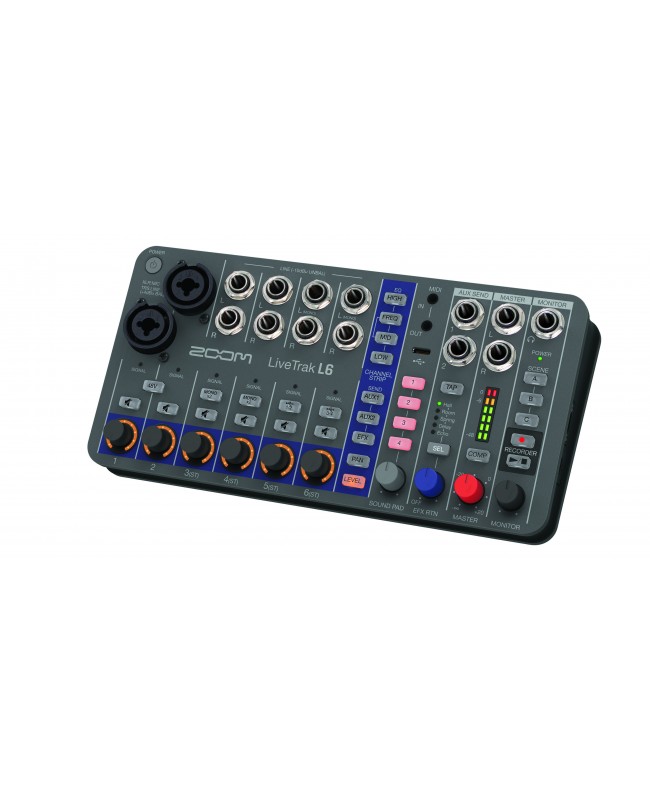

Zoom LiveTrak L6 Digital Mixer
  • 0%

Zoom LiveTrak L6

€324.00
€322.00 -0%
Tax included
Lowest price within the last 30 days: €322.00

6-channel digital mixer - 32-bit floating point

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 29/04/2025? Order within 3 hours and 7 minutes

Free shipping

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

Zoom LiveTrak L6







Small has become really big

LiveTrak L6 is our most compact and portable digital mixer/recorder. With 10 studio-quality audio tracks, effects, MIDI and sound pads, it's perfect for bands, synth players, live streaming and much more.

Full-featured mixer

Don't be fooled by its size. The L6 is designed with the capabilities of large mixers: complete channel strip controls for each track, including 3-band EQs with variable mids, aux sends, pan and effects.

Powerful multitrack recording

The L6 records 10 separate tracks plus the full stereo mix to an SD card with up to 2TB capacity. Share your mix live or transfer your multitrack audio files to your favorite DAW for editing and mixing.

MIDI connectivity

Connect, program and synchronize the L6 to your external equipment via the 3.5 mm MIDI I/O or to a computer via USB.

Connect external devices such as drum machines and synthesizers

Map parameter controls such as volume, pan and EQ to external equipment

Synchronization with time-based effects such as delay

Record and control

L6 can be used as a 10-in/4-out 32-bit float USB audio interface for computers and iOS or Android devices, recording simultaneously to the SD card. It also makes a perfect control surface for your favorite DAW.

Broadcast and stream

L6 is the perfect companion for video streaming that requires broadcast-quality audio, regardless of the location. Connect to your favorite streaming software on PC, Mac and iOS devices.

Battery powered

You can use four AA batteries for up to 3 hours of battery life or an external USB battery for extended use.

32-bit float technology

Thanks to 32-bit float technology and impeccable sounding preamps, you'll always get clipping-free audio without having to set the gain.

Full of effects

Perfect your mix with effects like Delay, Echo and Spring, Room and Hall reverbs.

Advanced compressor

The L6's master output compressor increases loudness while adding natural saturation. Thanks to 32-bit float technology, audio will never clip, even at high volumes.

LED control knobs

Adjust levels and parameters quickly and precisely with the LED control knobs.

Sound Pad

Activate backing tracks or pre-recorded samples using one of the four sound pads. You can also sample in real time for jam sessions and live performances.

Saving scenes

L6 Editor Software

The L6 Editor software gives you access to settings and MIDI programming. Customize effect parameters, AUX send pick-up points, sound pad settings and more.

Once you've set up your mix, save it to one of the three scene memories for instant recall.

Eurorack

L6 can be mounted in standard Eurorack cases using the optional ERL-6 rack adapters and power supply.

Package includes

  • LiveTrak L6
  • USB AD-17 AC adapter
  • USB-C cable

Specifications

Input and output channels

  • MIC/LINE inputs (mono) 2
  • LINE inputs (stereo) 4
  • AUX SEND outputs (mono) 2
  • MASTER outputs (stereo) 1
  • MONITOR outputs (stereo) 1

Inputs

  • MIC/LINE connectors 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
  • Input gain Adjustment not necessary (dual A/D converter circuits used)
  • Input impedance XLR: 3.8 kΩ or higher
  • TRS: 39 kΩ or higher
  • Maximum input level XLR: +4 dBu
  • TRS: +24 dBu
  • +48 V phantom power
  • Total channel current 10 mA or less
  • LINE connectors 8 TS jacks (balanced)
  • Input impedance 10 kΩ
  • Maximum input level +9 dBu

Outputs

  • AUX SEND Connectors 2 TRS jacks (balanced impedance)
  • Maximum output level +9.5 dBu
  • Output impedance 147 Ω
  • MASTER Connectors 2 TRS jacks (balanced)
  • Maximum output level +15 dBu
  • Output impedance 147 Ω
  • MONITOR connector TRS jack
  • Maximum output level 50 mW + 50 mW (63 Ω load)
  • Output impedance 14.7 Ω

Bus

  • MASTER1
  • AUX SEND2
  • SEND EFX1

Channel strip

  • 3 BAND EQHIGH 10 kHz, ±15 dB, shelving
  • MID 100 Hz – 8 kHz, ±15 dB, peaking
  • LOW 100 Hz, ±15 dB, shelving

Level meters

  • 6 segments

Send effects

  • 5 types

Recorder

  • Maximum simultaneous recording tracks 12
  • Maximum simultaneous playback tracks 2
  • Recording formats 48 kHz, 32-bit float, mono/stereo WAV
  • Recording media microSDHC memory cards (class 10 or higher)
  • microSDXC memory cards (class 10 or higher)

Audio interface

  • Input and output channels Input: 12 channels
  • Output: 4 channels
  • Sampling rate 48 kHz
  • Bit depth 32-bit floating point / 24-bit
  • USB 2.0 interface

Card reader

  • High-speed USB 2.0 mass storage class

Sampling rate

  • 48 kHz

Frequency response

  • 20 Hz – 20 kHz / -1.0 dB

Equivalent input noise

  • -120 dBu or less (IHF-A) at 150 Ω input

Power requirements

  • 4 AA alkaline, lithium, or rechargeable NiMH batteries
  • ZOOM AD-17 AC adapter: DC 5 V/1 A
  • Supports USB bus power.

Estimated continuous recording time with batteries

  • Alkaline batteries Approx. 3 hours
  • NiMH batteries (1900 mAh) Approx. 3.5 hours
  • Lithium batteries Approx. 7 hours
  • 12-track recording, phantom power off, headphones used (63 Ω load), no MASTER output connection
  • These values are approximate.
  • Battery continuous operation times were determined using in-house testing methods.
  • They will vary greatly according to use conditions.
  • Power consumption 5 W maximum
  • Dimensions 223 mm (W) × 114 mm (D) × 46.5 mm (H)
  • Weight (main unit only) 526 g
  • Weight (including batteries) 618 g
