Showgear PowerCore 32.9 Distributors

Showgear PowerCore 32.9


€900.00
Tax included

1 + 9x Schuko


Out of Stock

Free shipping


wishlist

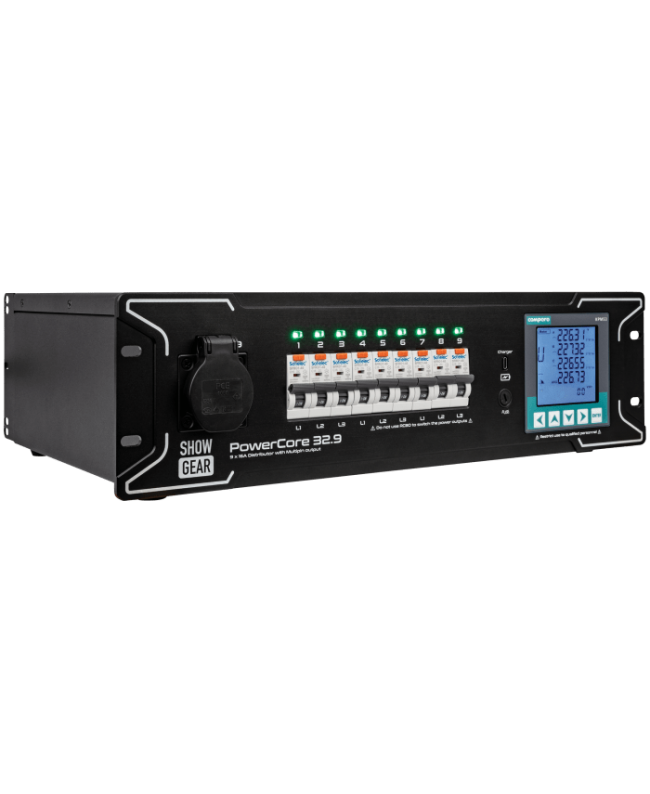

Showgear PowerCore 32.9



The Showgear PowerCore 32.9s provides reliable power and optimal protection for your valuable equipment. Each output is equipped with its own RCBO to detect ground faults and overcurrents. If a problem is detected, it will automatically shut down the affected circuit while keeping the rest of the system active.

With an LED for each output, it is also easy to check statuses, while a 3-inch display allows you to view various settings, including voltage, power, and phase information. A power meter with Mdbus communication protocol allows you to monitor performance even from a distance.

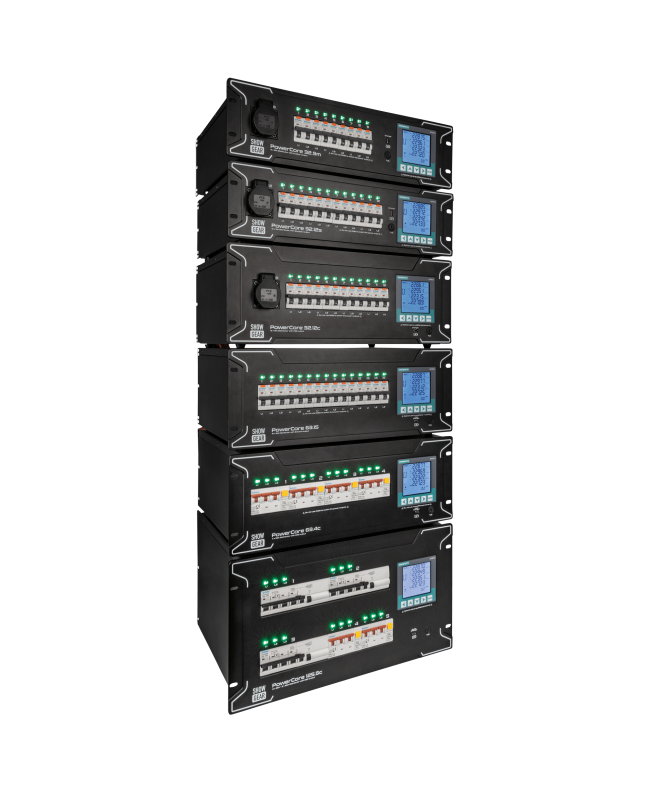

The robust CNC-milled aluminum front panel and sturdy PCE mounting connectors make the PowerCore range suitable for the most demanding applications.

  • RCBO per output
  • LED per output
  • 3-inch display
  • Power meter with MdbuS protocol
  • CNC-milled aluminum front panel and PC connectors

Technical specifications

Control and programming

  • LCD display
  • Screen size 3.14"

Connections and electrical characteristics

  • Rated current (A) 32 A
  • Data input connection RJ45, XLR 3P
  • Data output connection RJ45, XLR 3P
  • Power input connection CEE5P 32 A
  • Power connector Output Schuko socket, type F
  • Cable length 1 m
  • Rated current of automatic circuit breaker 16 A
  • Class of automatic circuit breaker Class C
  • Poles of automatic circuit breaker 2
  • Nominal current of residual current device A
  • Residual current device class 30 mA
  • Poles of residual current device 2

Mechanical characteristics

  • Length (mm) 344 mm (13.543″)
  • Height (mm) 139 mm (5.472″)
  • Width (mm) 483 mm (19.016″)
  • Weight 11.9 kg (26.235 lb)
  • Rack units 3 U
  • IP rating IP20 (for indoor use only)
  • Housing Aluminum, Metal
  • Color Black

Product features

  • LED indicators Power
  • Earth contact position 6H

E623001
