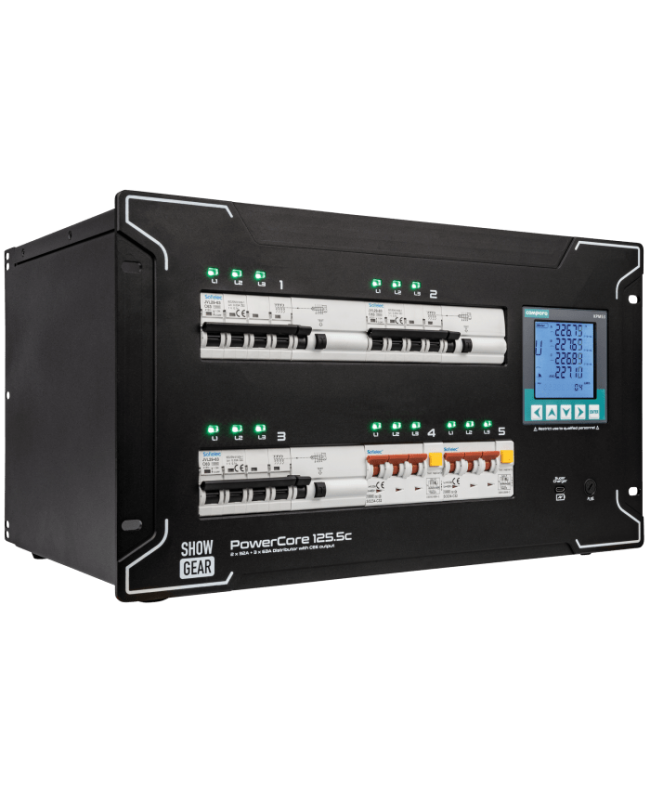

Showgear PowerCore 125.5c Distributors

Showgear PowerCore 125.5c


€1,436.00
Tax included

2x CEE 32A + 3x CEE 63A


Out of Stock

Free shipping


wishlist

Showgear PowerCore 125.5c



The Showgear PowerCore 125.5c provides reliable power and optimal protection for your valuable equipment. Each output is equipped with its own RCBO to detect ground faults and overcurrents. If a problem is detected, it will automatically shut down the affected circuit while keeping the rest of the system active.

With an LED for each output, it is also easy to check statuses, while a 3-inch display allows you to view various settings, including voltage, power, and phase information. A power meter with Mdbus communication protocol allows you to monitor performance even from a distance.

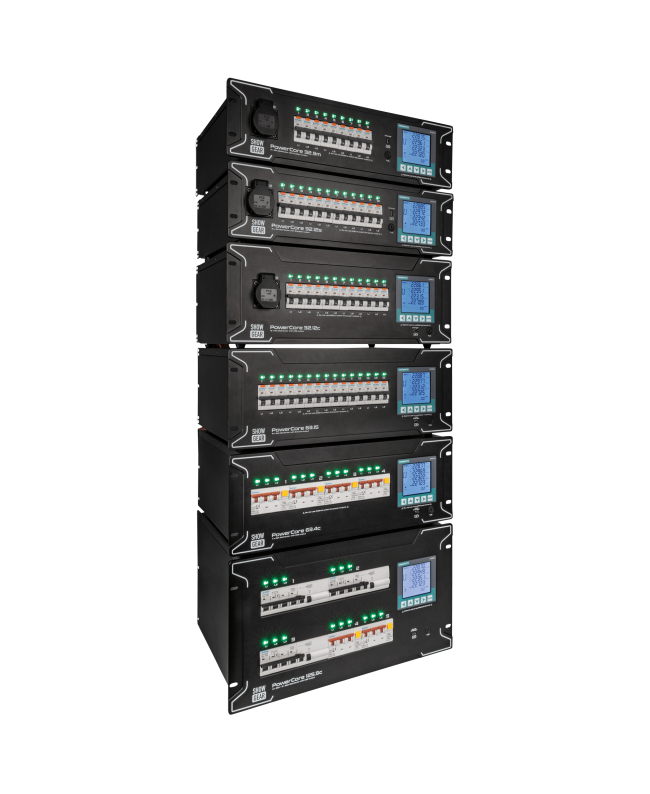

The robust CNC-milled aluminum front panel and sturdy PCE mounting connectors make the PowerCore range suitable for the most demanding applications.

Technical specifications

Control and programming

  • LCD display
  • Screen size 3.14"

Connections and electrical characteristics

  • Rated current (A) 125 A
  • Power supply connection CEE5P 125 A
  • Power supply connector Output CEE5P 32 A, CEE5P 63 A
  • Rated current of automatic circuit breaker 63 A
  • Class of automatic circuit breaker Class C
  • Poles of automatic circuit breaker 4
  • Rated current of differential circuit breaker A
  • Class of differential circuit breaker 30 mA
  • Poles of differential circuit breaker 4

Mechanical characteristics

  • Length (mm) 421 mm (16.575″)
  • Height (mm) 271 mm (10.669″)
  • Width (mm) 483 mm (19.016″)
  • Weight 21.8 kg
  • Rack units 6 U
  • IP rating IP20 (for indoor use only)
  • Housing Aluminum, Metal
  • Color Black

Product features

  • LED indicators Power
  • Earth contact position 6H

E623040
