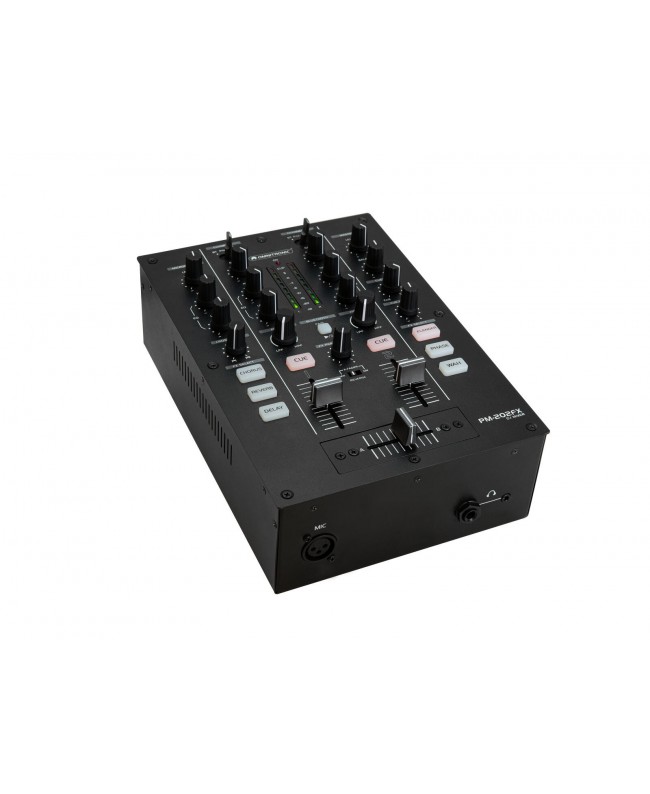

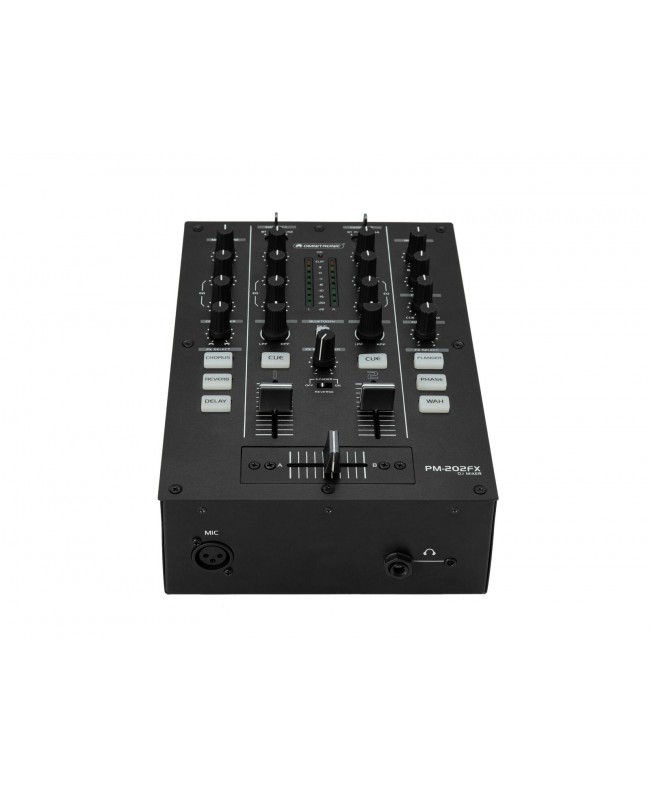

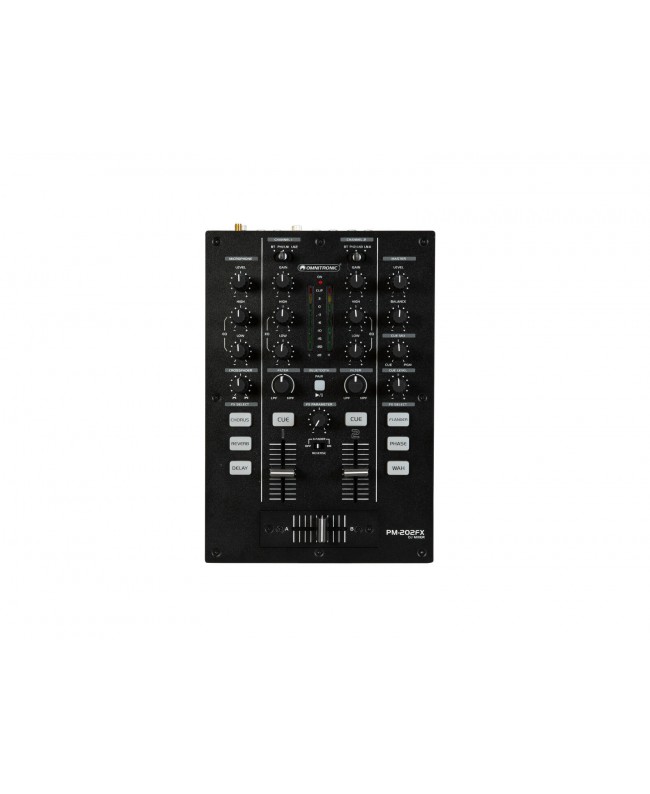

Omnitronic PM-202FX 2-Channel DJ Mixer with Filter, FX and Bluetooth

• Bluetooth signal routable to channel 1 and 2
• DJ microphone channel with level control and 2-band equalizer
• Crossfader with adjustable curve and reverse function
• Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
• Master channel with level control and stereo LED level meter
• 4 line and 2 phono inputs via RCA jacks
• Additional recording output
• DJ filter LPF/HPF bipolar per channal
• Control via Bluetooth
• Bluetooth: operating range up to 15m
• Desktop console housing
• For application areas such as: Party room; mobile use; mobile djs / entertainer

Scope of delivery

• 1 x mixer
• 1 x power cord
• 1 x antenna
• 1 x RCA cable
• 1 x user manual
• 1 x declaration of conformity

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: Max. 8 W
• Protection class: Protection class II
• Power connection: Mains input via C8 (M) figure 8 mounting version power supply cord with Euro plug (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: 80 dB
• THD: 0.1 % at 1 kHz
• DJ filter: Per channal: LPF/HPF bipolar,
• DJ-FX: Master: CHORUS, REVERB, DELAY, FLANGER, Master: WHA, PHASE,
• Control: Bluetooth
• Bluetooth device name: PM-202FX
• Range: Bluetooth: range up to 15m
• Crosstalk: 60 dB
• Control elements: Crossfader, Crossfade curve control, crossfade reverse switch, FX Parameter control, power switch
• Status LED: Power, master level meter

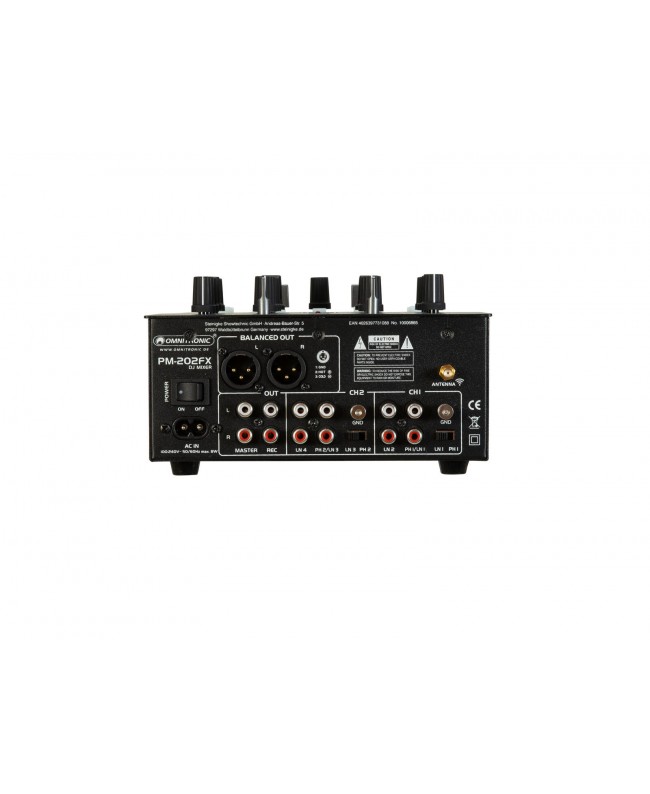

• Connections: Input: line/phono via 2 x stereo RCA, Input: line via 2 x stereo RCA, Input: microphone via 1 x 3-pin XLR (F) mounting version, Input: antenna via 1 x SMA (F) mounting version, Input: Earthing connection via 2 x screw terminal, Output: master via 2 x 3-pin XLR (M) mounting version, Output: master via 1 x stereo RCA, Output: rec. via 1 x stereo RCA, Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version, Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
• Channels: Input chanel: 2 x stereo with Line-Line/Phono-Bluetooth switch via RCA, channel control via 60mm fader, 2-band tone control EQ, gain control, CUE switch, Microphon chanal: 1 x mono via XLR, channel control via rotary dial, 2-band tone control EQ, Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, balancecontrol, Headphones output: stereo via jack, channel control via rotary dial, cue mix function, Rec. output: stereo via RCA
• Material: Metal
• Color: Black
• Housing design: Desktop console housing
• Dimensions: Length: 30.5 cm, Width: 19.0 cm, Height: 11.0 cm
• Weight: 2.18 kg
• Cable length: 2.10 m detachable
