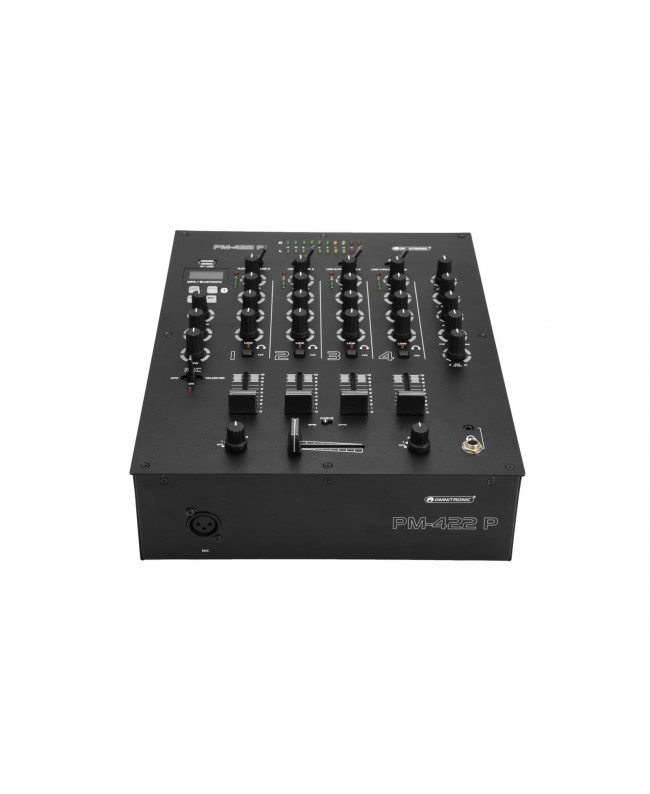

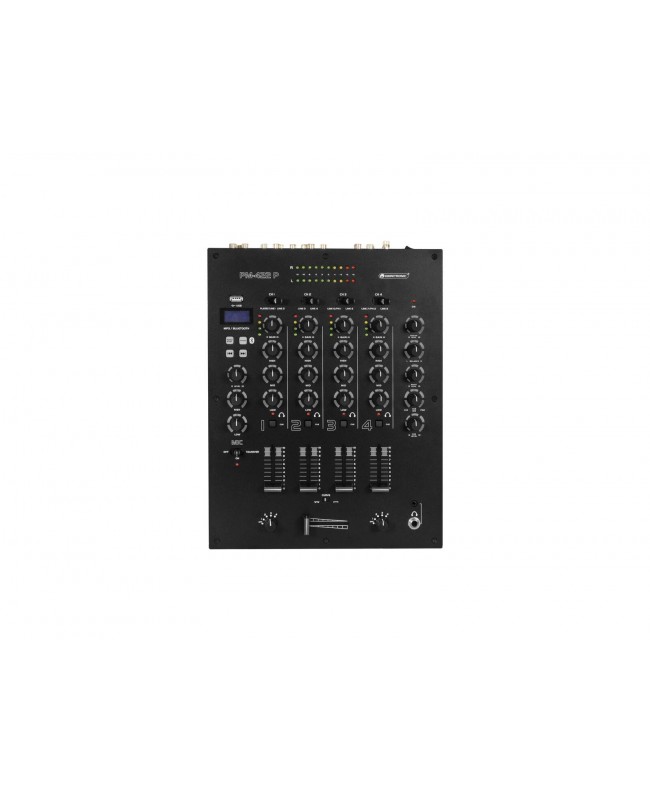

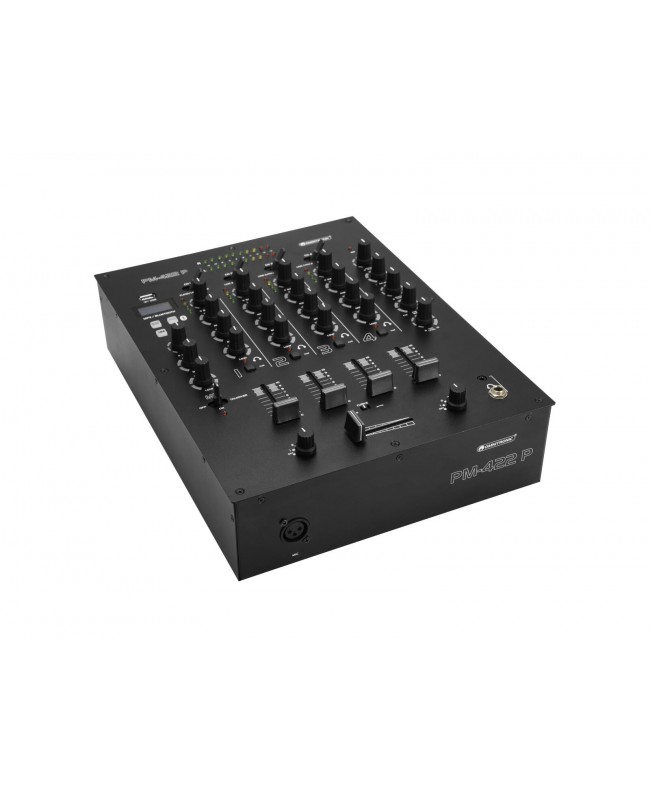

Omnitronic PM-422P 4-channel DJ Mixer with Bluetooth and USB Player

• 4 input channels with gain control, LED level meter, 3-band equalizer, cue button and channel fader
• DJ microphone channel with level control, 2-band equalizer, on/off and talkover switch
• Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
• Crossfader with assignment switches and adjustable curve
• Master channel with level and balance control
• 10-digit stereo LED level meter
• Adjustable monitor output
• 10 line and 2 phono inputs via RCA jacks
• Balanced XLR and RCA outputs
• Record output, independent of the master
• Control via Bluetooth
• Operating range up to 10m
• LCD display
• Desktop console housing
• For application areas such as: Party room; mobile djs / entertainer; mobile use

Scope of delivery

• 1 x mixer
• 1 x user manual
• 1 x power cord
• 1 x RCA cable
• 1 x declaration of conformity

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 25 W
• Protection class: Protection class II
• Power connection: Mains input via C8 (M) figure 8 mounting version power supply cord with Euro plug (provided)
• Control: Bluetooth
• Bluetooth: Version: 4.2 + EDR, Profiles: A2DP, AVRCP
• Bluetooth device name: PM-422P
• Audio player: USB + Bluetooth
• Range: Range up to 10m
• Carrier frequency: 2.4 GHz
• Housing color: Black
• Display type: LCD display
• Control elements: Audio player, talkover, crossfader selector switch, crossfader, crossfade curve switch
• Status LED: Chanal level meter, master level meter, CUE, ON AIR, power

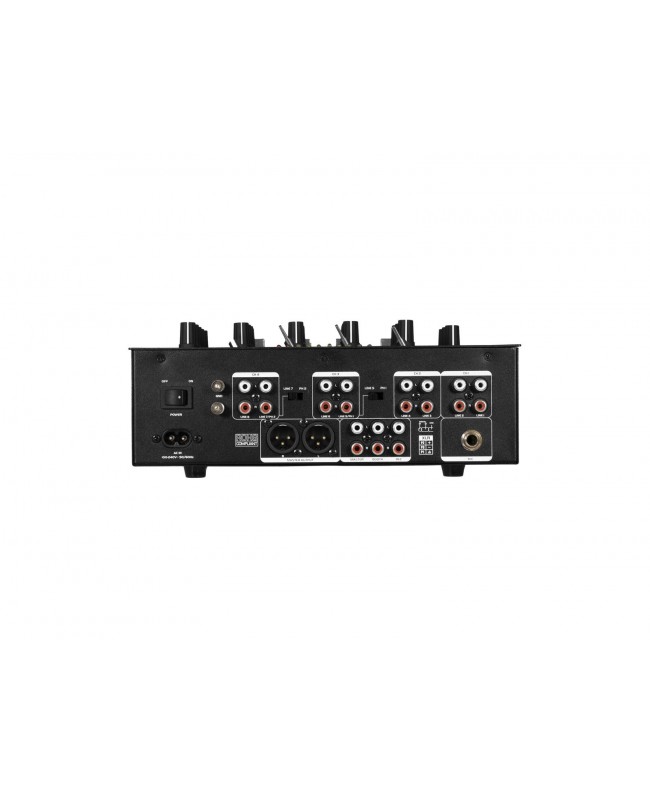

• Connections: Input: line via 6 x stereo RCA, Input: line/phono via 2 x stereo RCA, Input: microphone via 1 x 6.3 mm jack socket (mono) mounting version, Input: audio player via 1 x USB A (F) mounting version, Output: master via 1 x stereo RCA, Output: master via 2 x 3-pin XLR, Output: rec. via 1 x stereo RCA, Output: booth via 1 x stereo RCA, Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
• Channels: Input chanel: 1 x stereo with line-line-player switch via RCA or player, channel control via fader, 3-band tone control EQ, gain control, CUE switch, Input chanel: 1 x stereo with line-line switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch, Input chanel: 2 x stereo with line-line/phono switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch, Microphon chanal: 1 x mono via jack, channel control via rotary dial, 2-band tone control EQ, talkover switch, ON AIR switch, Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, balancecontrol, Booth output: 1 x stereo via RCA, channel control via rotary dial, cue mix function, Headphones output: 1 x stereo via jack, channel control via rotary dial
• Music format: MP3, WAV; WAV
• USB port: Type A
• Housing design: Desktop console housing
• Dimensions: Length: 35 cm, Width: 26.6 cm, Height: 10.5 cm
• Weight: 3.46 kg
• Available storage media: USB devices max. 32GB (FAT 32)
