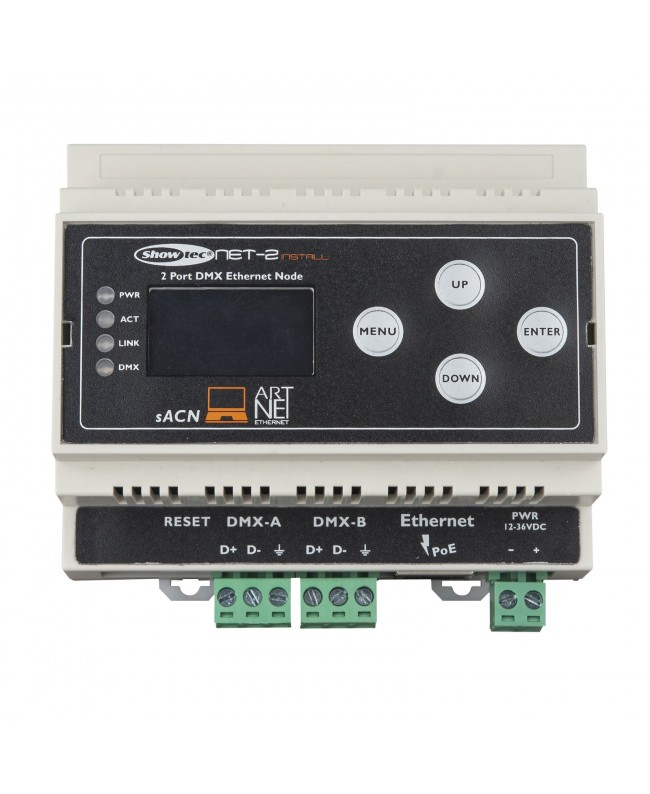

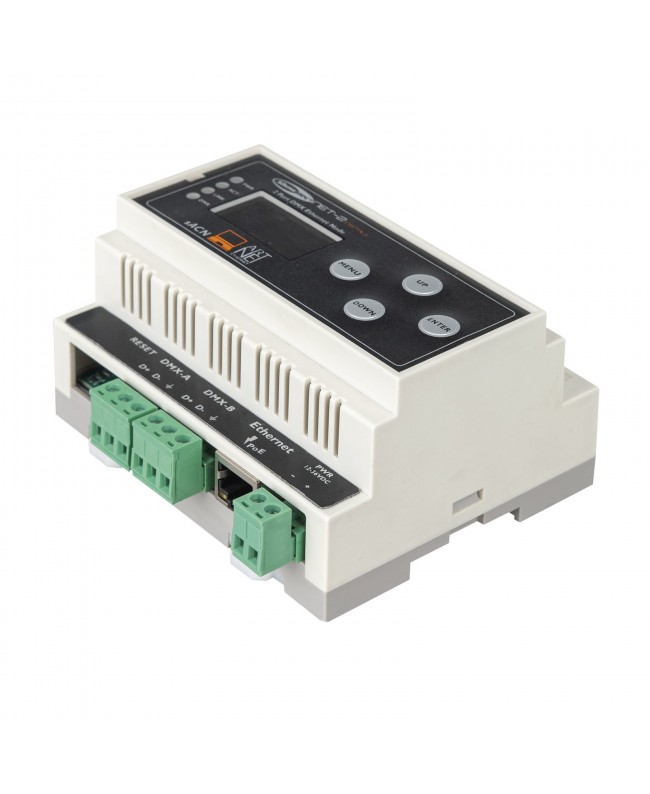

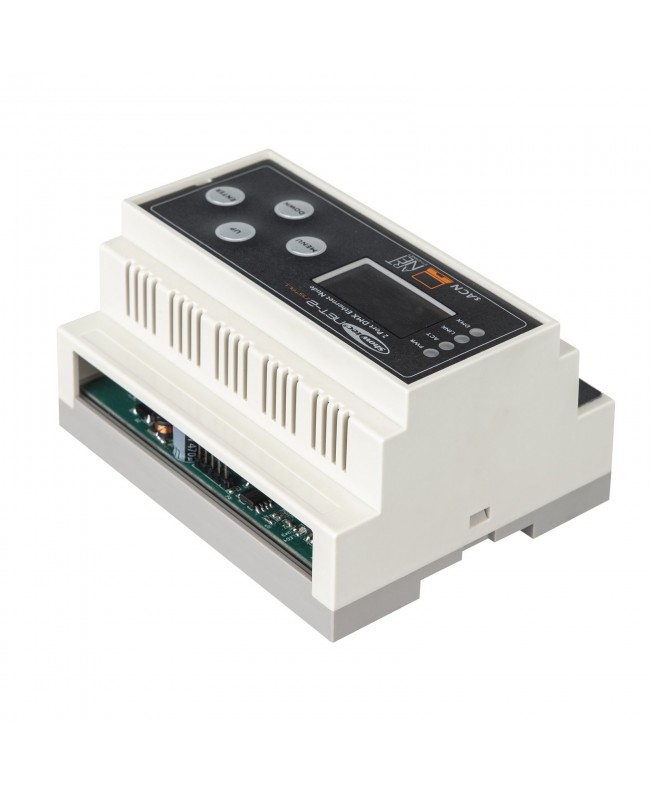

SHOWTEC NET-2 Install DIN Rail

The Showtec NET-2 Install is the ideal compact fixed-installation node for you. All connections are easy connectable with the plug-in Phoenix terminals, and both bi-directional DMX ports are optically isolated to prevent any interference from getting hold of your signal. Power can be supplied via PoE or on the wide range DC power input. A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front or via the remote web interface which can be accessed within the network. Default login account: Admin, password: Admin. The din-rail mounted NET-2 converts Art-Net or sACN to DMX512 and back, and is ideal for network system integration projects.

• Configuration examples:
• Art-Net to 2x DMX output
• 2X DMX input to Art-Net
• Clone 1 DMX inputs to 1x DMX output and Art-Net
• HTP/LTP Merge 2x Art-Net to DMX output
• HTP/LTP Merge DMX input and Art-Net to DMX output
• Wide range input voltage
• 2 Universes DMX input or output
• Supports Art-Net and sACN
• Remote setup interface
• POE (IEEE 802.3 Af)
• DIN EN43880 form factor
• DIN EN60715 rail system
