Seetronic SE8FDNH13B RJ45 Ethernet Chassis Connectors
  • -8%

Seetronic SE8FDNH13B RJ45

€9.20
€8.40 -8%
Tax included
Lowest price within the last 30 days: €8.40

Feedthrough locking receptacle

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 19/05/2026? Order within 2 hours and 57 minutes

Compare

wishlist

Seetronic SE8FDNH13B RJ45

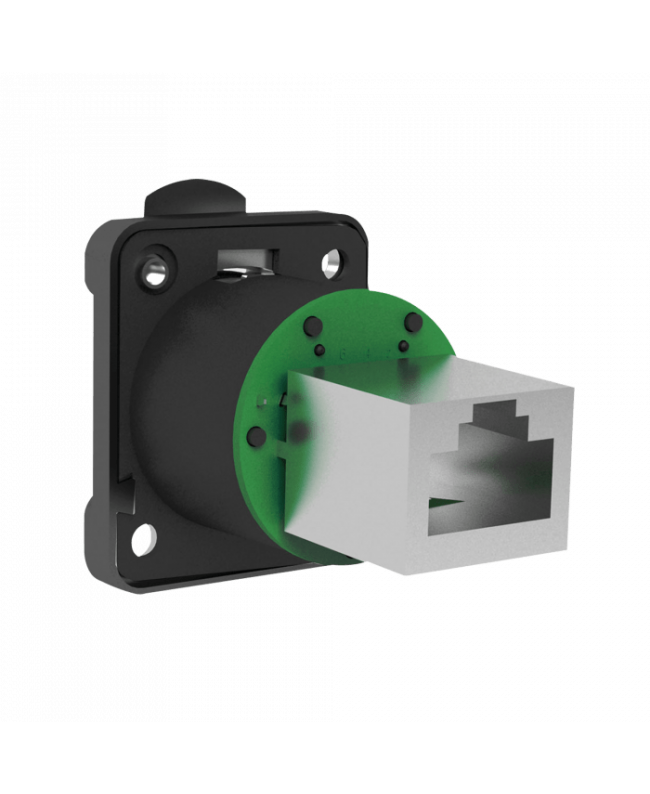

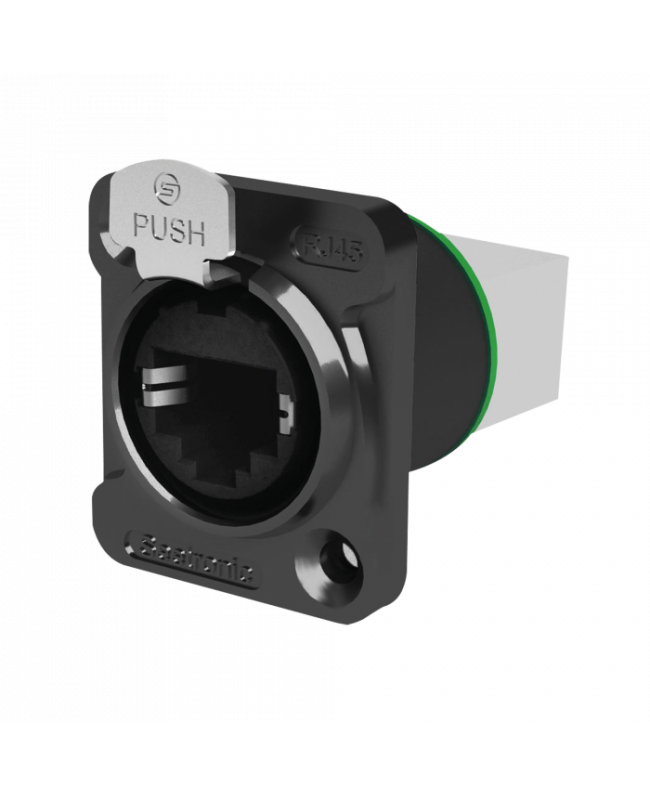

This RJ45 chassis connector fits D-size holes and installs from the front or the rear. On the back, this feedthrough connector has an RJ45 socket that accepts an RJ45 connector. It is suitable for up to CAT5e-supported network speeds (1 Gigabit) and has a latch locking system on the front. It has a zinc diecast shell and uses gold-plated contacts.

  • Feedthrough type (RJ45 on front and back)
  • Up to 1 Gigabit network speed (Cat5e)
  • Gold-plated contacts
  • Mounts from the front or rear
  • Length (mm): 39.1 mm (1.539")
  • Height (mm): 33.1 mm (1.303")
  • Width (mm): 27.7 mm (1.091")
  • Weight: 0.01 kg (0.022 lb)
  • IP Rating: IP20 (indoor use only)
  • Housing: Zinc
  • Colour: Black
  • Contact Resistance: 10 < mΩ
  • Product Properties: Locking Device
  • Latch: Contact Type
  • Shield Resistance: 0.5 Ω/km (0.8 Ω/mile)
  • Maximum Ambient Temperature: 80 °C (176 °F)
  • Minimum Ambient Temperature: 30 °C (-22 °F)

SE8FDNH13B

Data sheet

Color
Schwarz
Giorni di elaborazione
3
