Explo X2 Wave Flame

The X2 Wave Flamer combines a liquid-fuel flame effect system with moving head technology in a compact unit designed for unique stage effects: high technology inside a compact and robust device.

Equipped with a motorized adjustable nozzle, the X2 Wave Flamer allows very rapid and precise flames, up to 10 m high, through an arc of 210° (+-105°). The flame pictures that it is able to produce open up new possibilities for the creation of indoor or outdoor shows.

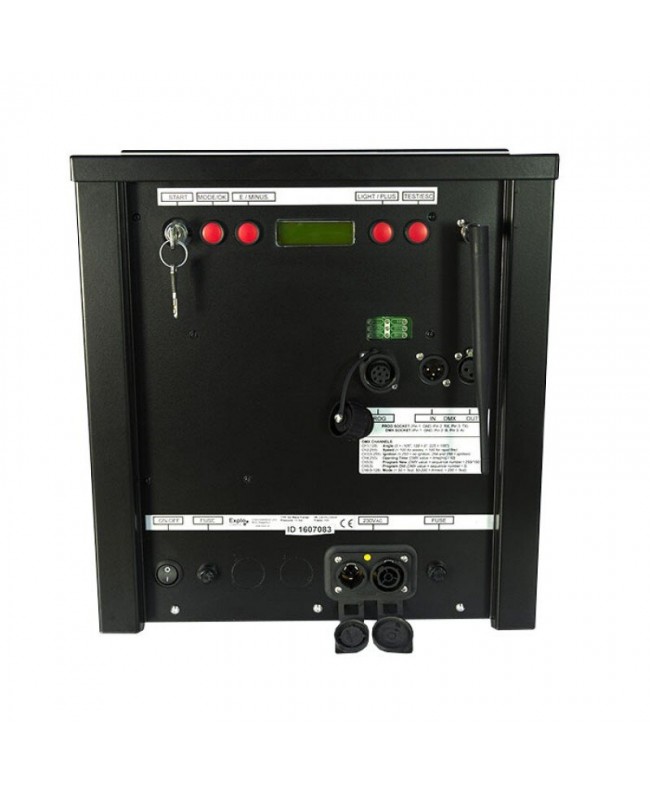

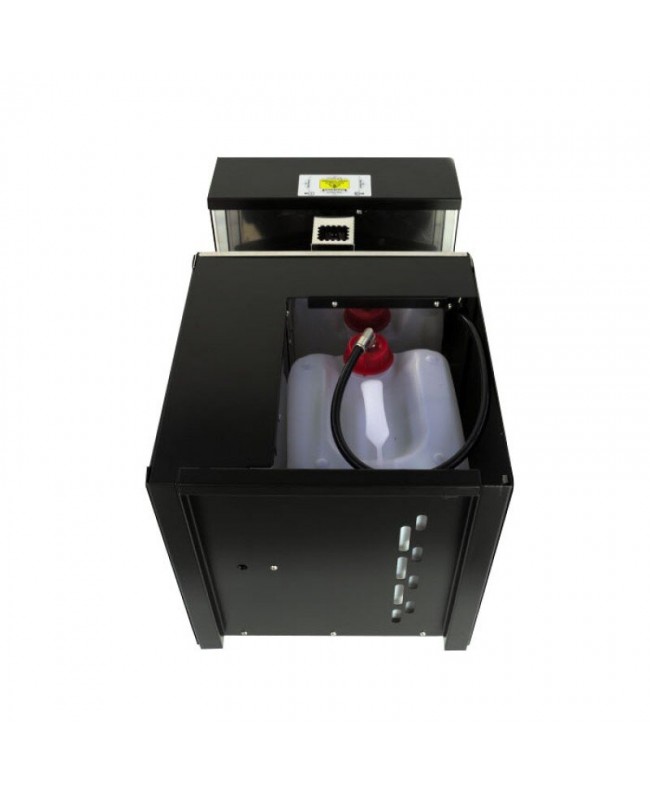

For easy management, there is a removable 10 L fuel container and an integrated display with menus and control buttons. As an option, in addition to the TX2-70K bidirectional radio control with a range of up to 800 m, the X2 Wave Flamer can also be controlled via DMX.

As an option, in addition to the radio control, the X2 Wave Flamer can also be controlled via DMX.

The X2 Wave Flamer is powered by 110 - 230 VAC, but with an optional connector it is possible to power it from an external battery, to avoid connections to the mains. It incorporates multiple safety devices, including, among others, a pressure control and movement lock.

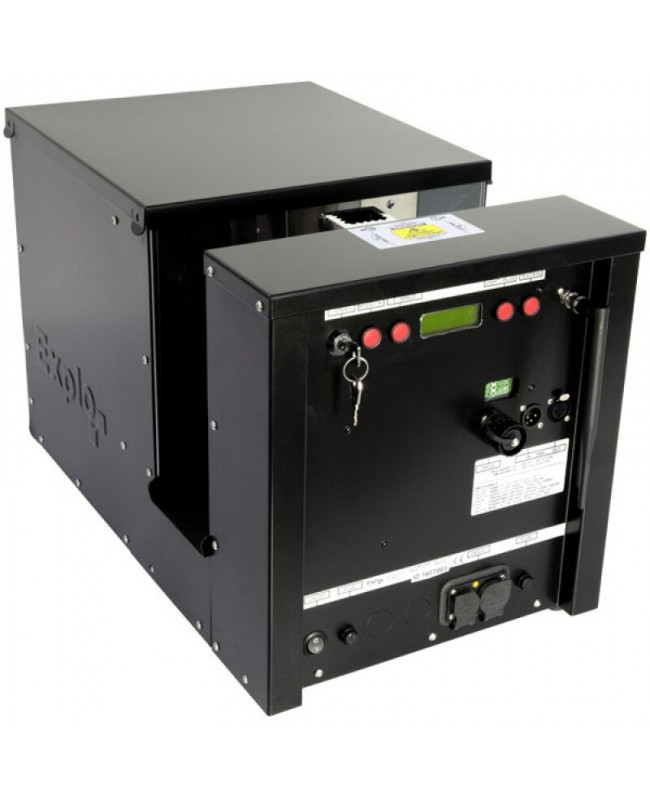

The product is housed in a stainless steel chassis that integrates a tripod support, all weighing 27 kg (with empty tank). A version without internal pump is also available, but equipped with a quick-fit connector for connecting an external pump.

Combining a single moveable head with a pressurized fuel source, it is capable of producing a wide range of unique flame effects, the resulting motion opens up completely new possibilities in the design of indoor or outdoor shows

The programming can be done directly on individual firing commands or software at the same time. Each of the 15 angles has its own channel addressing variable valve opening times. An additional 40 sequences / macro (movement patterns) are pre-programmed and can be started directly

• Main features
• Fluid based flame machine unlike anything seen before
• The swiveling head allows to produce very fast and accurate flame surges from 3 m to 10 m in height within a radius of 210°
• Detailed menu via built in display and removable 10 L canister
• Can be controlled via DMX-512
• Security features: automatic leak detection, double valve, electronic dry run protection and empty tank to prevent damages to the pump systems
• Bioethanol, isopropyl alcohol (IPA) or Isopar can be used as liquid
• For bright yellow flame color, mix bioethanol 1:1 with IPA
• User benefits
• Wide range of unique flame effects thanks to the 210° orientable motorized nozzle
• Can be used both indoors and outdoors
• Multiple safety devices
• Compact and robust
• Areas of use
• Festivals and live music concerts
• Clubs and discos
• Television and theater shows
• Fashion and sports events
• Service and rental companies
