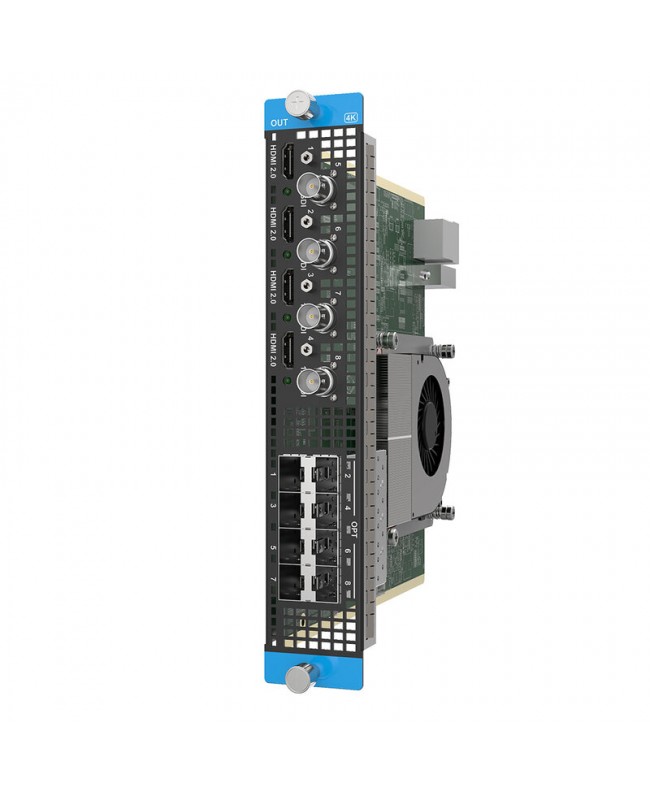

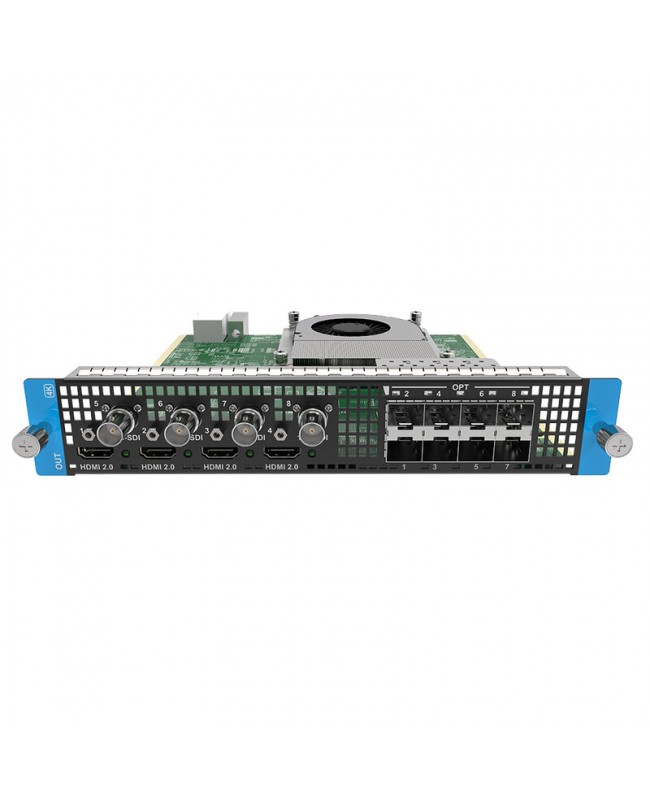

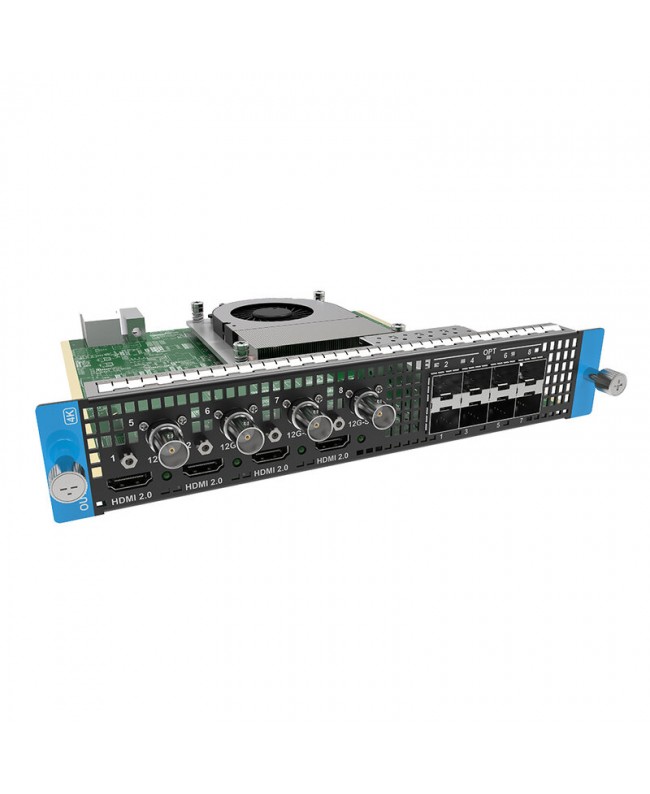

PIXELHUE Q8_HDMI2.0+12G-SDI+Fiber Output Card Functional Modules
  • -26%
  • New

PIXELHUE Q8_HDMI2.0+12G-SDI+Fiber Output Card


€5,520.00
€4,106.00 -26%
Tax included
Lowest price within the last 30 days: €4,106.00

HDMI 2.0 + 12G-SDI + fiber output card for Q8 mainframe


Out of Stock

Free shipping


wishlist

PIXELHUE Q8_HDMI2.0+12G-SDI+Fiber Output Card



This output card provides 4 x HDMI 2.0, 4 x 12G-SDI, 8 x 10G optical. 4 HDMI 2.0 connectors and 4 12G-SDI connectors are divided into 4 groups. Each group includes 1 HDMI 2.0 connector and 1 12G-SDI connector. In each group, only 1 connector can be used for output at a time.

  • Technical characteristics
  • Connector 1 (HDMI 2.0) and connector 5 (12G-SDI) are in a group
  • Connector 2 (HDMI 2.0) and connector 6 (12G-SDI) are in a group
  • Connector 3 (HDMI 2.0) and connector 7 (12G-SDI) are in a group
  • Connector 4 (HDMI 2.0) and connector 8 (12G-SDI) are in a group
  • 4 X HDMI 2.0
  • Up to 4K x 2K at 60 Hz 8 bit 4:4:4 output
  • Support for 8-bit and 10-bit output settings
  • Support for 4: 2:2 and 4:4:4 output settings
  • Support for YCbCr and RGB color space settings
  • No support for interlaced signal outputs
  • Custom resolutions
  • Max. width: 8192 pixels
  • Max. width: 8192 pixels
  • 4 X 12G-SDI
  • Compatible with SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
  • Support for interlaced signal outputs
  • 8 X 10G OPT
  • Support for single-mode and multi-mode optical outputs
  • Transmission distance up to 10 km in single mode
  • OPT ports copy outputs on video connectors
  • OPT 1 and OPT 2 copy the output on connector 1 or 5
  • OPT 3 and OPT 4 copy the output on connector 2 or 6
  • OPT 5 and OPT 6 copy the output on connector 3 or 7
  • OPT 7 and OPT 8 copy the output on connector 4 or 8

PIX-M04030124
