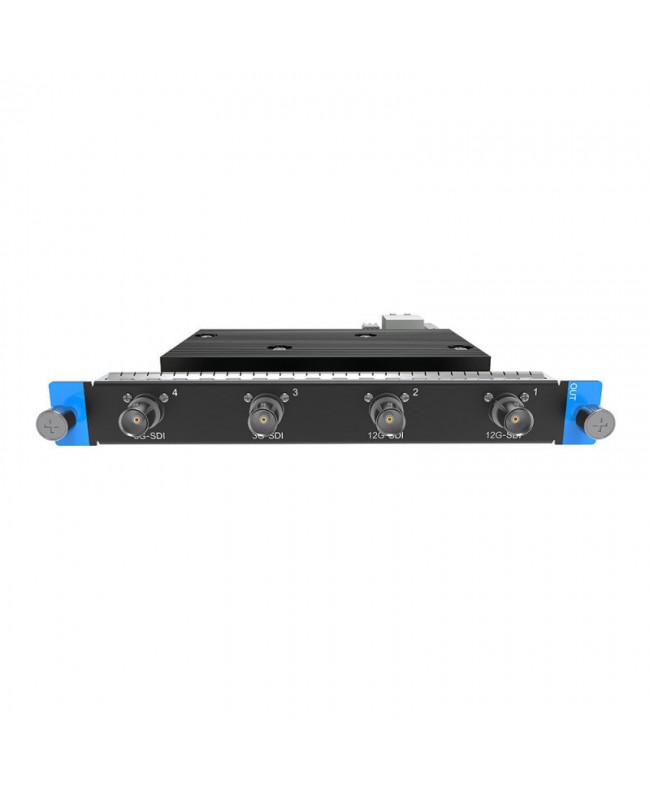

PIXELHUE F_12G-SDI Output Card

• Technical characteristics

12G-SDI

• Downward compatible with 6G-SDI, 3G-SDI, HD-SDI and SD-SDI
• Connectors 1 is available, while connector 2 copies the output on connector 1
• Connectors 3 and 4 are unavailable
• Max. resolution: 4096 x 2160 at 60 Hz
• 1920 X 1080i at 50 / 59.94 / 60 Hz

3G-SDI

• Downward compatible with HD-SDI and SD-SDI
• Four connectors are available
• Max. resolution: 1920 x 1080 at 60 Hz
• Support for ST-2082(12G), ST-2081 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD)
• Level A and Level B adjustment NOT supported
• Support for interlaced signal output
• Support for output timing settings
• Common resolutions
• 12G-SDI
• 720 X 480i (NTSC) at 59.94 Hz
• 720 X 576i (PAL) at 50 Hz
• 1280 X 720p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz
• 1920 X 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz
• 1920 X 1080i at 50 / 59.94 / 60 Hz
• 2048 X 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz
• 3840 X 2160p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz
• 4096 X 2160p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz
• 3G-SDI
• 720 X 576i (PAL) at 50 Hz
• 720 X 480i (NTSC) at 59.94 Hz
• 1280 X 720p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz
• 1920 X 1080i at 50 / 59.94 / 60 Hz
• 1920 X 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz
