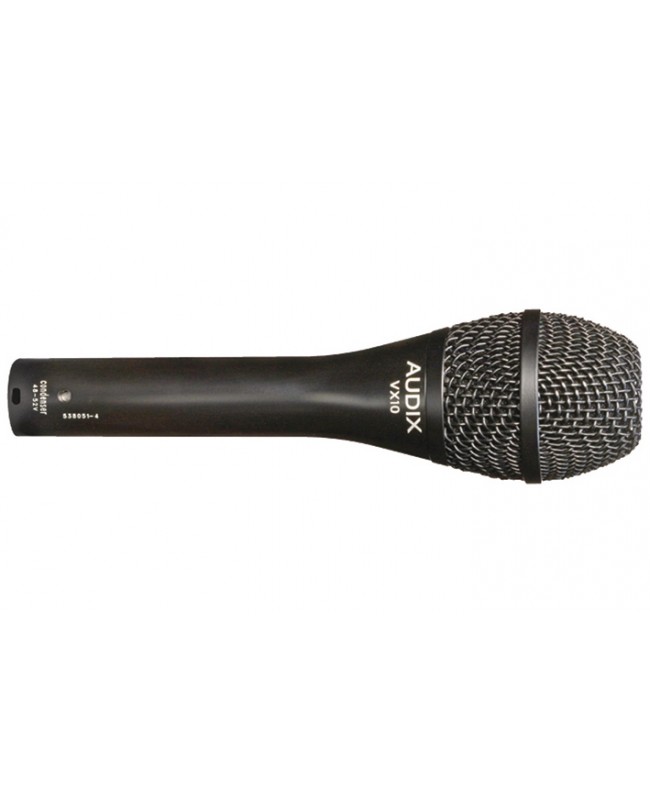

AUDIX VX10

The VX10 cardioid condenser vocal microphone is designed to set new standards of performance for broadcast and live sound applications. With a smoothly controlled frequency response from 40 Hz to 20 kHz, the VX10 is highly sensitive to transient response and will reproduce vocals and speech with exceptional detail and realism. The VX10 has a cardioid polar pattern that helps isolate voices. This microphone includes a 21 mm doro vapor capsule and an internal multistage antipop filter. also available in a VX10LO low-output model for more control with high stage volumes or extremely powerful vocalists. In addition to vocals, the VX10 cardioid condenser microphone captures acoustic instruments such as guitars, woodwinds, brass, percussion, drums, hi-hat and pianos. Designed, assembled and tested by Audix in the United States.

• Transducer Type: Condenser

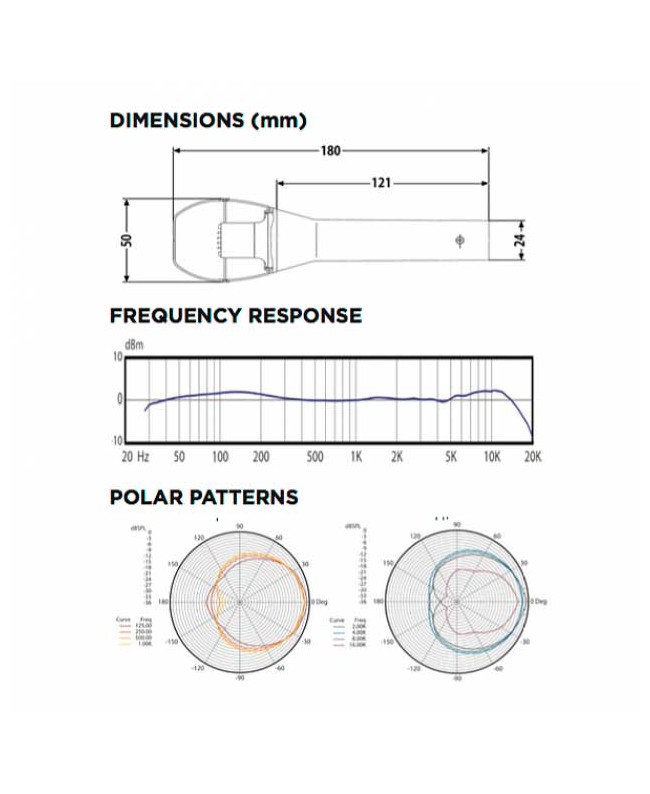

• Frequency Response. 40 Hz 20 kHz
• Polar Pattern: Cardioid
• Output Impedance: 250 ohms
• Sensitivity: VX10 24 mV / Pa 1k VX10LO 4 mV / Pa 1k
• Equivalent Noise Level: 19 dB Aweighted
• Signal to Noise Ratio: 75 dB
• Off Axis Rejection: 20 dB
• Maximum SPL: =138 dB w/ 10 pad
• Power Requirements: 4852 V
• Connector: 3pin XLRm
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Materials / Finish: Zinc Alloy and Machined Brass / Black Finish
• Weight: 310 g / 10.9 oz
• Length:180 mm / 7.1 in
