Omnitronic UHF E-FLEX 2, Wireless Mic System 559-575 MHz

Scope of delivery

• 1 x receiver
• 1 x external mains adapter
• 2 x antenna
• 1 x microphone
• 1 x jack cable
• 2 x mounting bracket
• 6 x screw
• 4 x foot
• 1 x user manual
• 1 x declaration of conformity

• Type: Wireless set
• Protection class: Protection class III
• Number of channels: 2
• Frequency range: 50 - 15000 Hz
• Range: Range up to 30m with line-of-sight
• Frequency band: UHF 559 - 575 MHz
• Modulation: FM
• Frequency selection: 16 switchable frequencies, In 2 groups
• Weight: 1.87 kg
• Power supply: 100-240 V AC, 50/60 Hz, 12V DC 500 mA
• Power consumption: Max. 3.1 W
• Power connection: Mains input via coaxial power connector (M) power supply cord with AC unit (provided)
• S/N ratio: 90 dB
• THD: 0.05 % at 1 kHz
• Housing color: Black
• Display type: Multicolor 4 digit 7-segment LED display
• Display: Mute; channel , frequency , AF audio level , RF signal level
• Control elements: Power switch, level control per channel

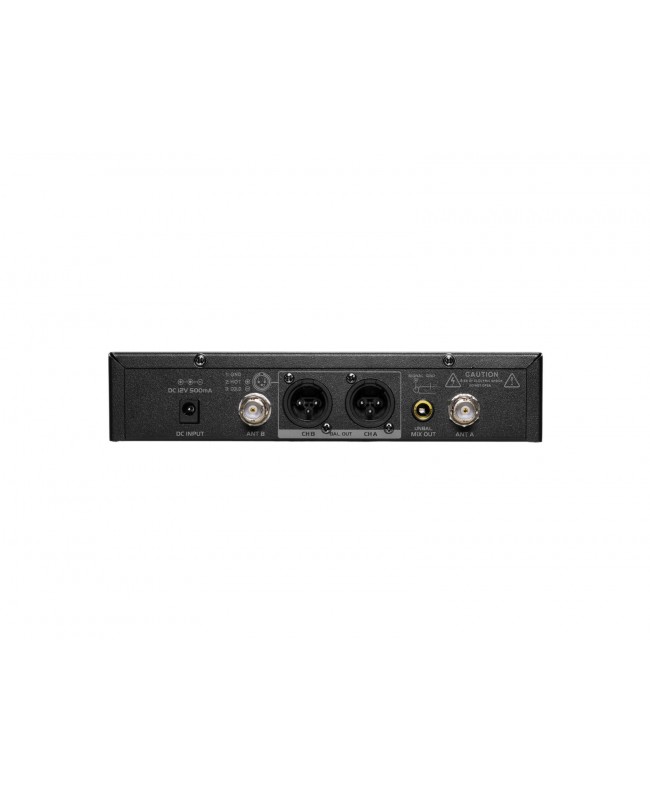

• Connections: Input: antenna via 2 x BNC (F), Output: microphone via 1 x 6.3 mm plug (unbal.), Output: microphone via 2 x 3-pin XLR (M) mounting version
• Material: Metal
• Housing design: Desktop console housing, (19) 48.3 cm rack installation possible
• Mounting depth: 18.5 cm
• Dimensions: Width: 21.1 cm, Depth: 14.4 cm, Height: 4.2 cm
• Weight: 0.970 kg
• Type: Hand-held transmitter
• Power supply: 3V DC
• Capsule type: Dynamic
• Polar pattern: Cardioid
• Battery: Mignon (AA) (not included)
• Sensitivity: -54 dB
• RF power output: 10 mW
• Housing color: Black
• Display type: Multicolor 4 digit 7-segment LED display
• Display: Frequency , channel , charge status indicator , Mute
• Switch: On/off/mute switch
• Material: Metal
• Dimensions: Length: 24.3 cm, Diameter: Ø 5.5 cm
• Weight: 0.270 kg
