Definitive Audio TD 400 MH

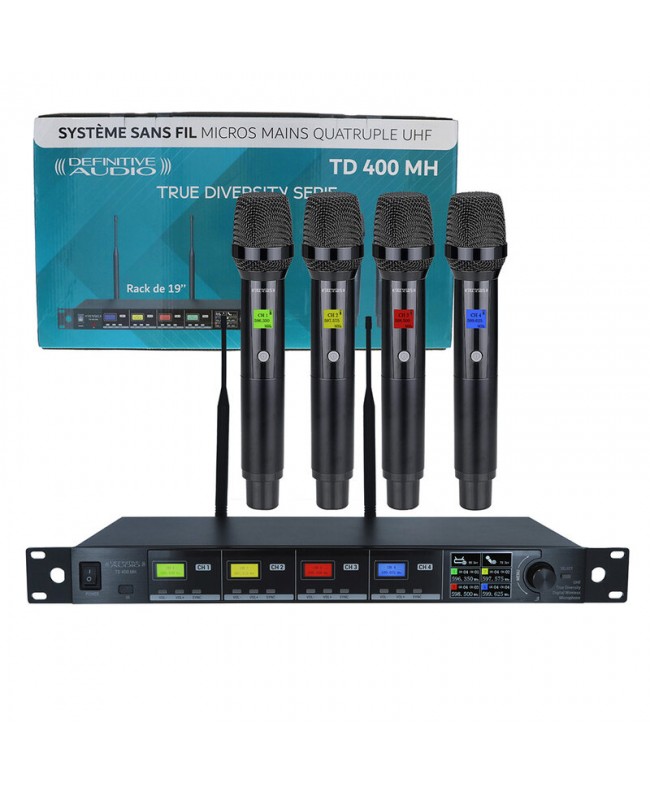

TD 400 MH is a UHF wireless microphone system consisting of four handheld transmitters and a 19 and #34; four channels 1U True Diversity rack receiver that significantly improves the reception quality during use. The PLL receiver has four color LCD displays and control buttons for management and necessary settings. It operates in a frequency range of 580 to 608 MHz.

TD 200 MH is capable of delivering remarkable sound performance, with clear, crisp and precise sound.

• Main features

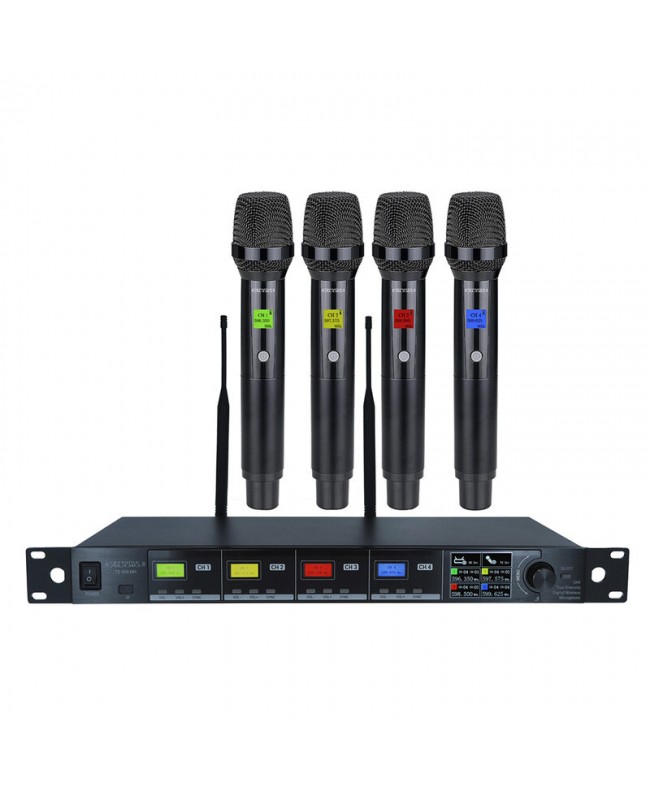

• Four handheld radio microphones and UHF True Diversity receiver
• PLL phase-locked circuit for stable characteristics and low harmonic radiation
• Maximum transmission power: 13 d. Bm (depending on regions)
• Built-in antenna distribution system, effectively reduces mutual interference of antenna radiation
• Frequency grouping: multiple preset groups are compatible with the operating frequency
• Switching band up to 50 MHz for up to 2000 frequencies (depending on regions)

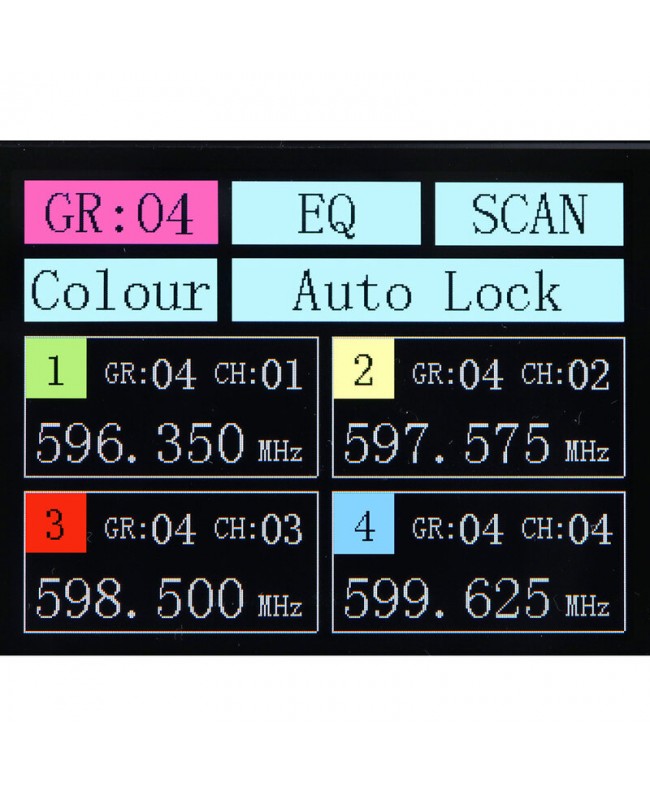

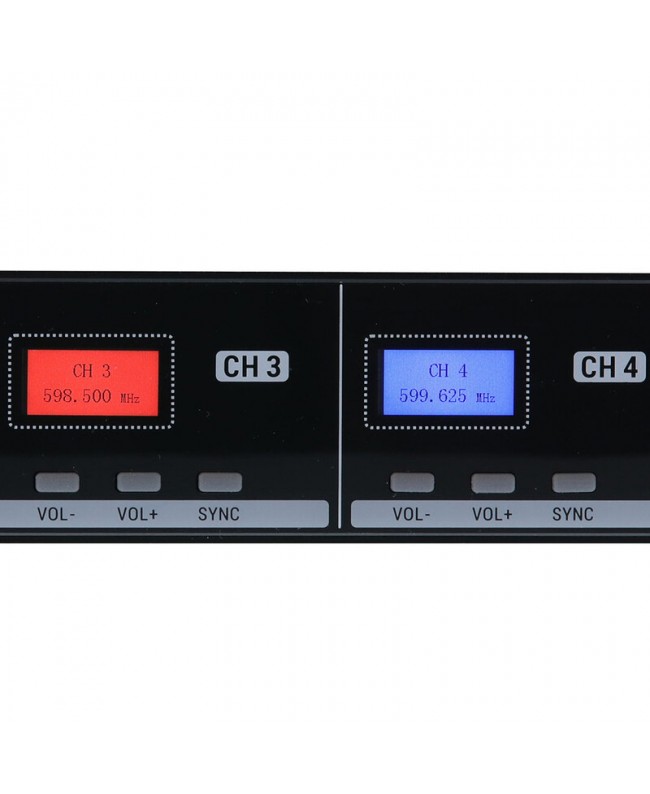

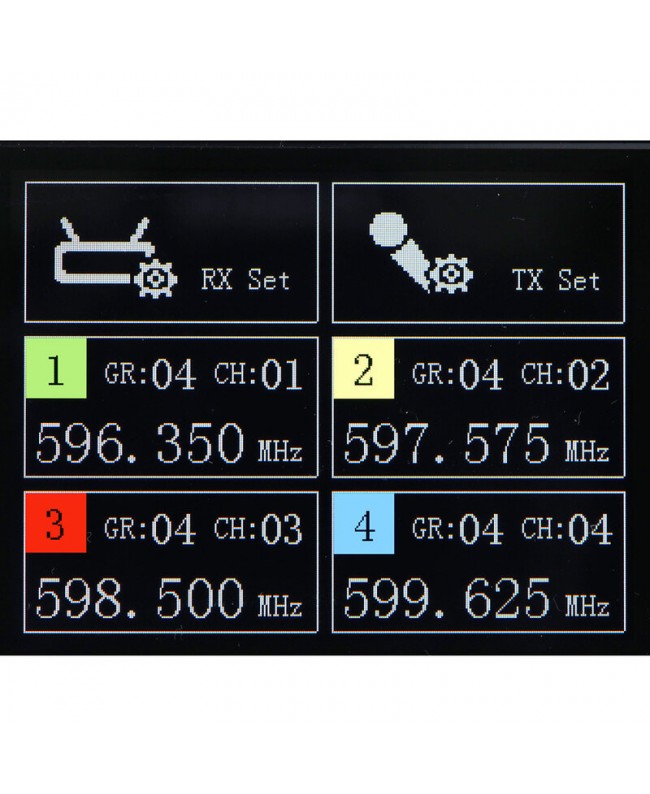

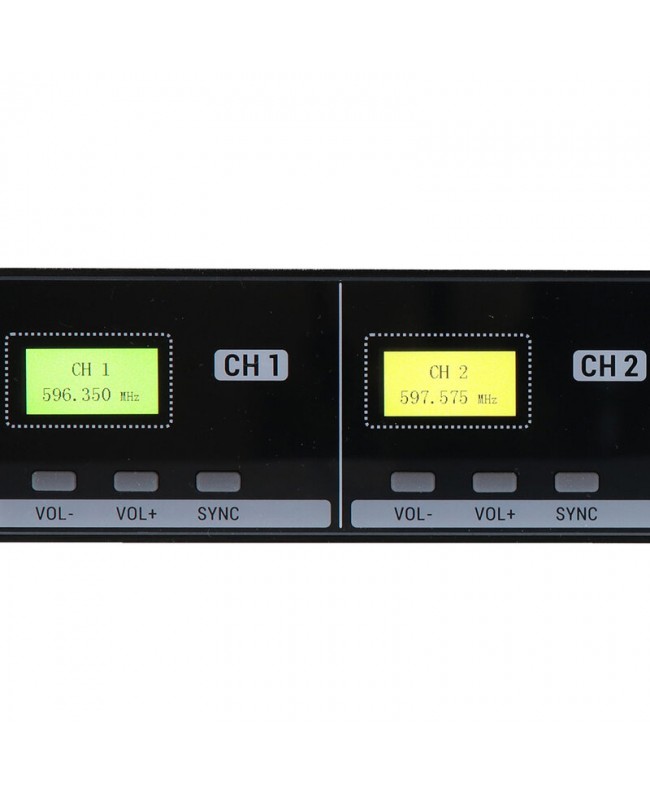

• Four LCD color display on the receiver
• Adjustable background color for secondary display: the transmitter display color can be changed accordingly with the receiver display

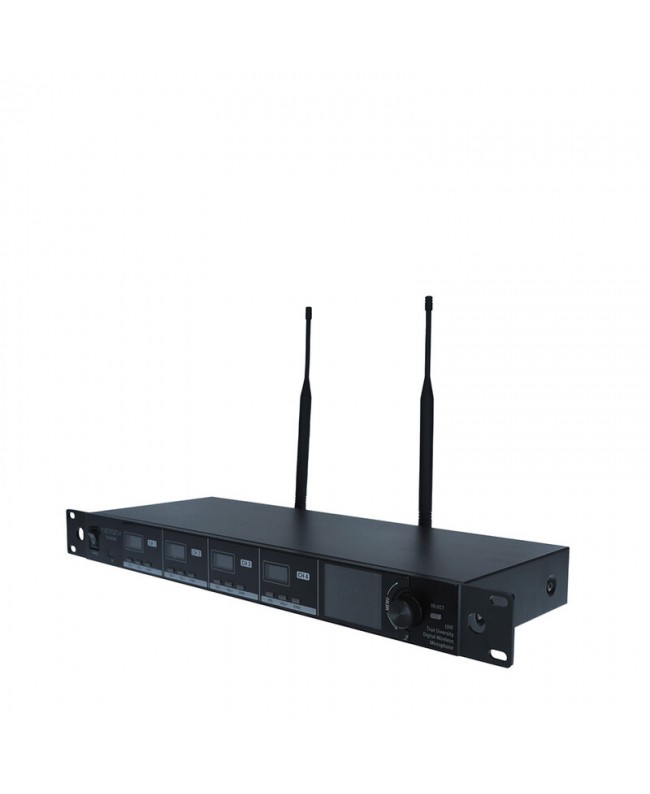

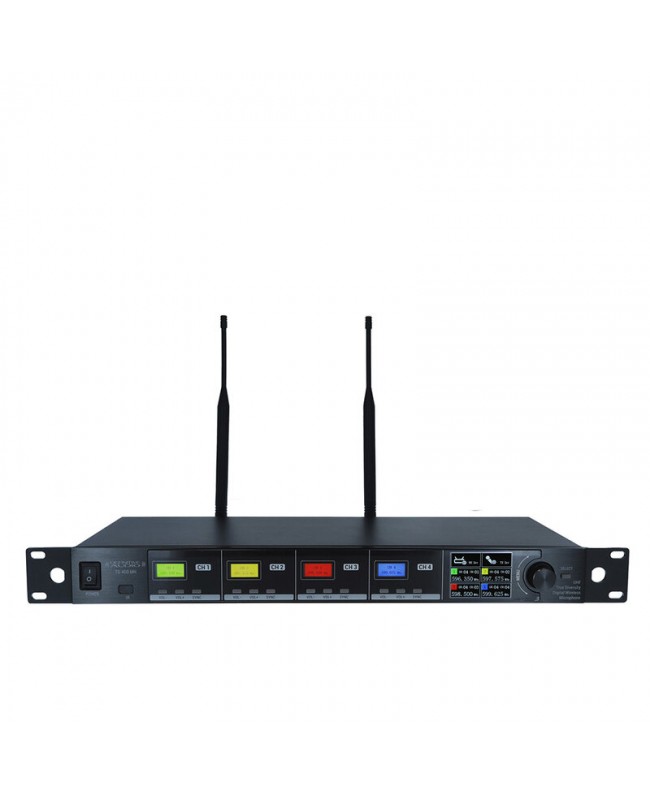

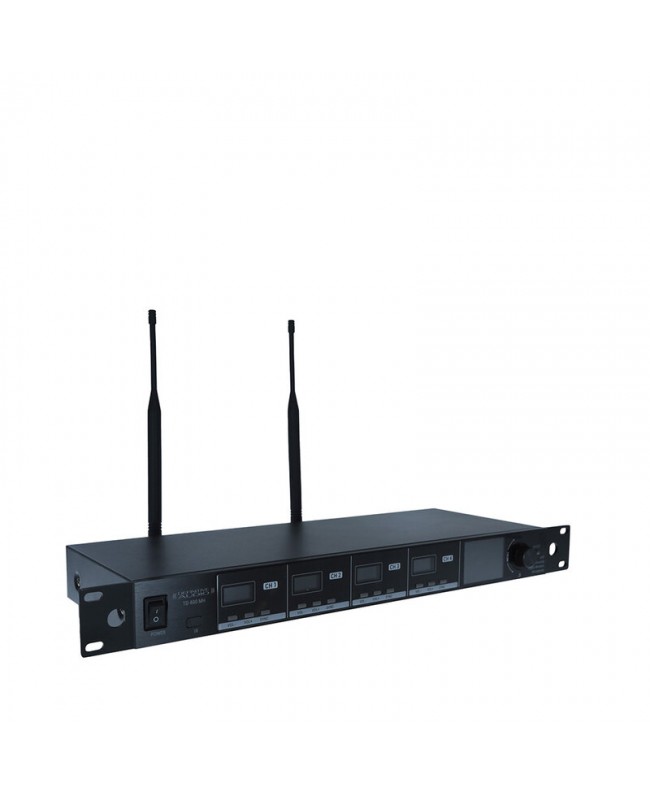

• 1U rack chassis for the receiver
• Rack mounting lugs included
• 2 Separate antennas for better reception

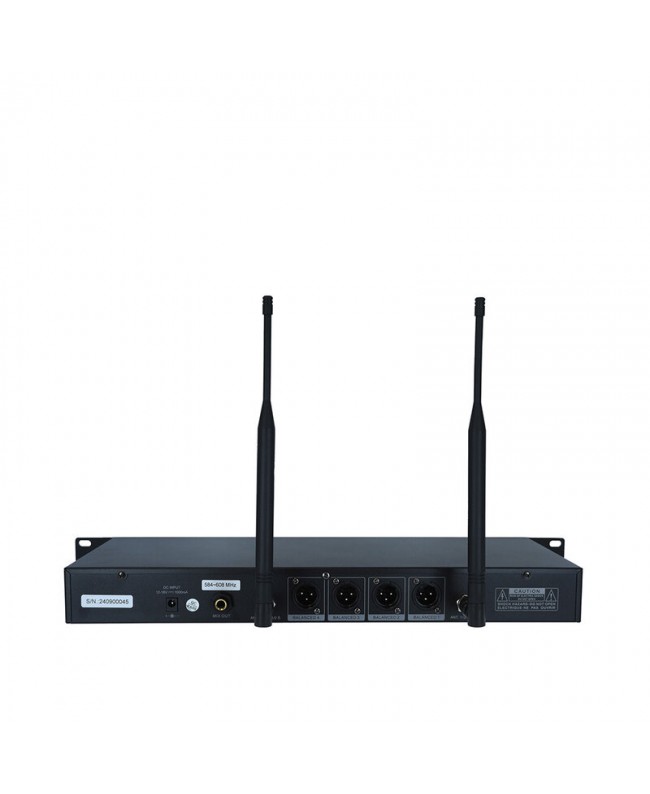

• 4 Balanced XLR outputs
• Balanced mix OUT jack output
• ACT function: wireless synchronization of the transmitter is done via the infrared interface
• Flat frequency response from 50 Hz to 16 k. Hz
• User benefits
• True Diversity receiver
• Stable reception thanks to the PLL phase-locked loop
• Bandwidth of up to 50 MHz for up to 2000 switchable frequencies
• Adjustable 7-band equalization processor
• Transmitter power up to 30 m. W
• Extremely favorable price-performance ratio
• Areas of use
• Live events and shows
• Conferences and presentations
• Broadcast
• Institutional environments
• Teaching and training
• DJ
