Rondson BE-5038/H-83/PT-10
  • New

Rondson BE-5038/H-83/PT-10


€657.00
Tax included

UHF dual diversity package, 1 handheld HF microphone + lavalier microphone + 1 bodypack + dual UHF True Diversity receiver


Out of Stock

Free shipping


wishlist

Rondson BE-5038/H-83/PT-10

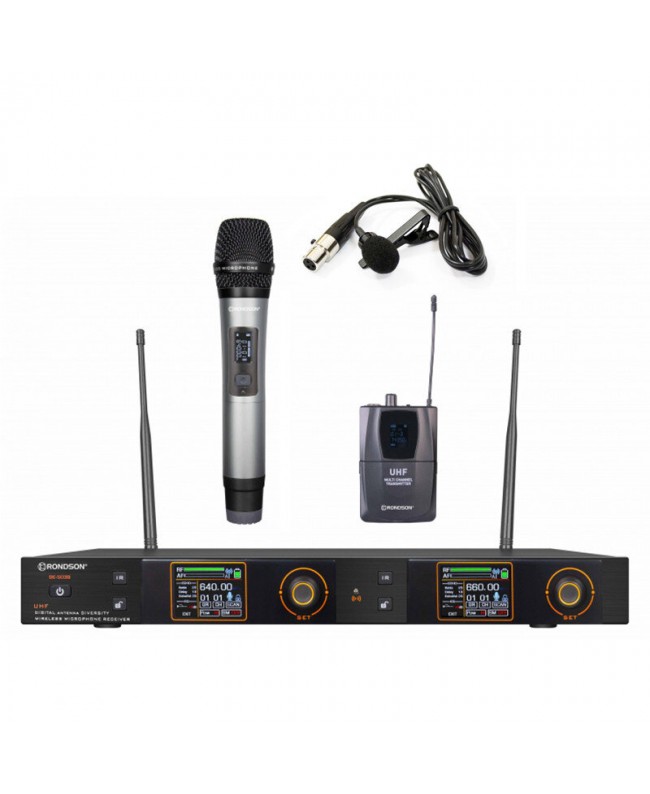

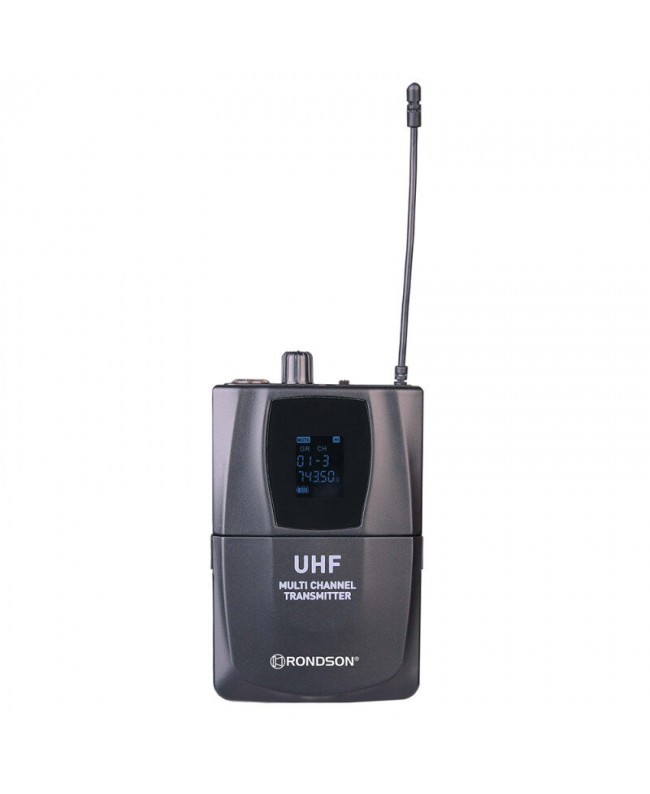

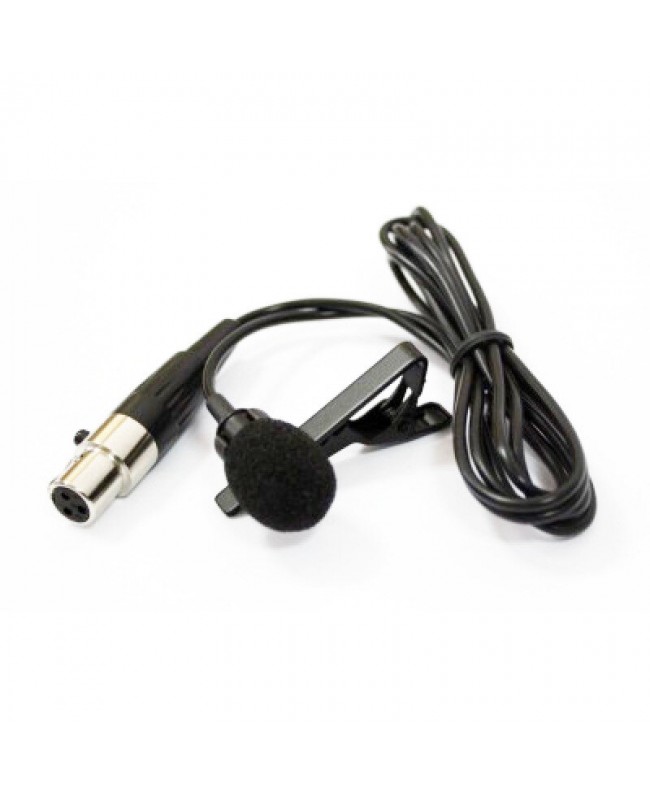

Kit consisting of a PT-10 10 m. W bodypack transmitter with LCD display for function indication and its CM-506 lavalier microphone, an H-83 handheld transmitter and a BE-5038 PLL dual UHF True Diversity receiver.

The standard 19 and #34; rack-mount tabletop receiver (rack ears are supplied) has a pair of antennas and has 20 PLL frequencies in the UHF range from 660 to 690 MHz. It is equipped with an anti-interference system for simultaneous operation of several units. With a reception distance of 10 to 150 m, it has infrared and #34;sync and #34; to transmit the frequency to the transmitters. Jack audio output (mix) and 2 balanced XLRs.

Ideal kit for professional voice or audio applications.

Receiver

  • Reception method: True Diversity 2 channels
  • System: synthesized PLL
  • Frequency stability: +-0.005%
  • Image interferes rate: 80 dB
  • S/N ratio: 105 dB at 1 kHz
  • Sensitivity: -107 dBm
  • Harmonic distortion: 0.5%
  • Frequency response: 15 Hz - 20 kHz
  • Output impedance: 600 ohm
  • Audio output level: -12 dB
  • Display: LCD
  • Audio output jack: XLR symmetrical
  • Antenna sockets: 4 x BNC
  • Power supply: 12 - 18 VDC 500 mA
  • Dimensions (W x D x H): 48.2 x 19 x 4.4 cm (19 1U)
  • Weight: 3 kg

RON-02155
