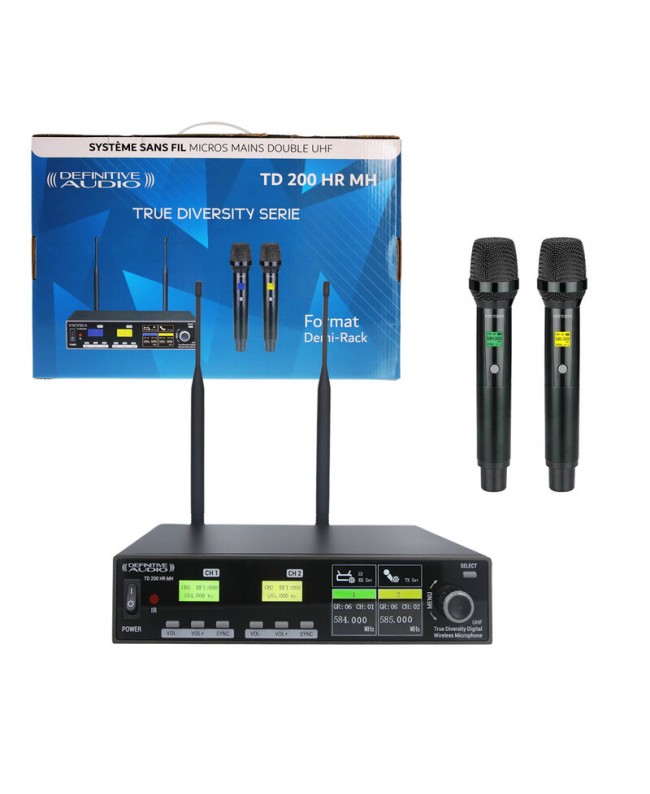

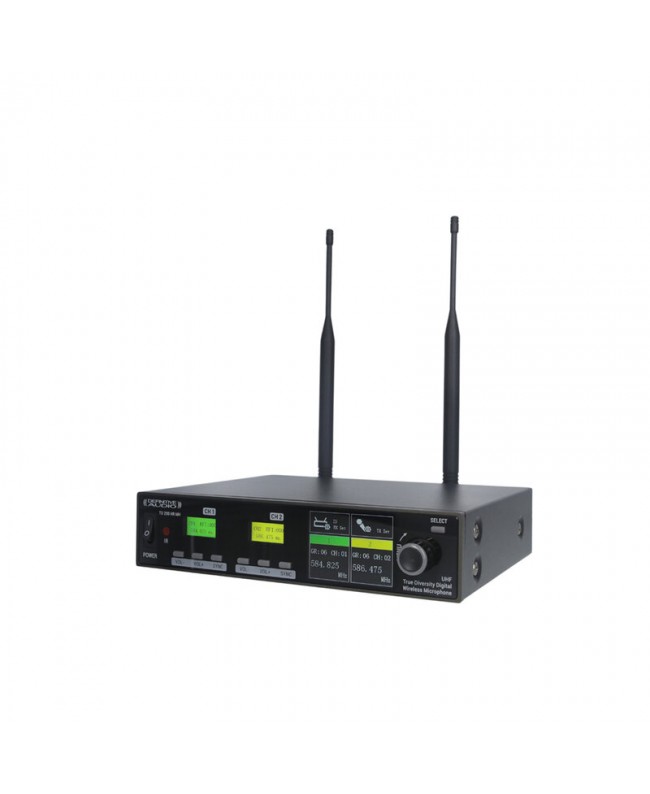

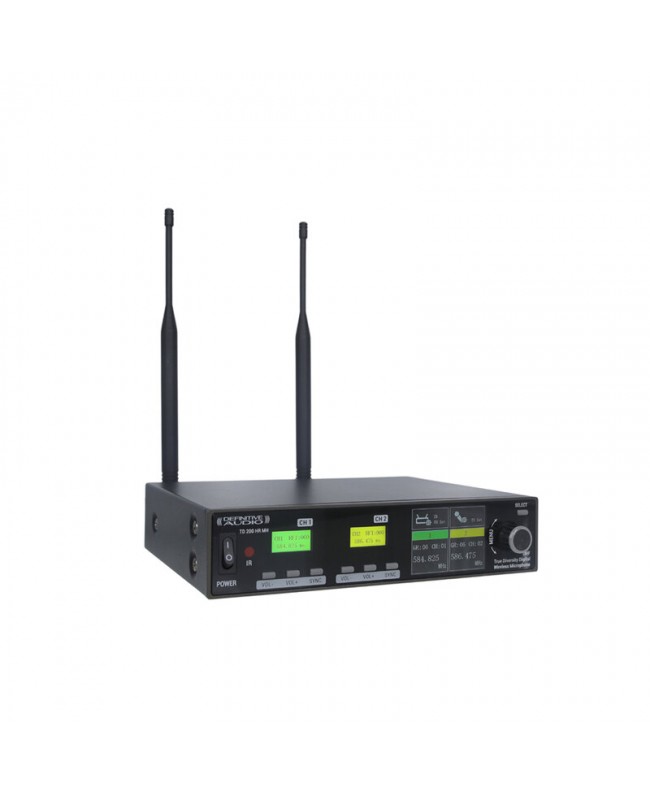

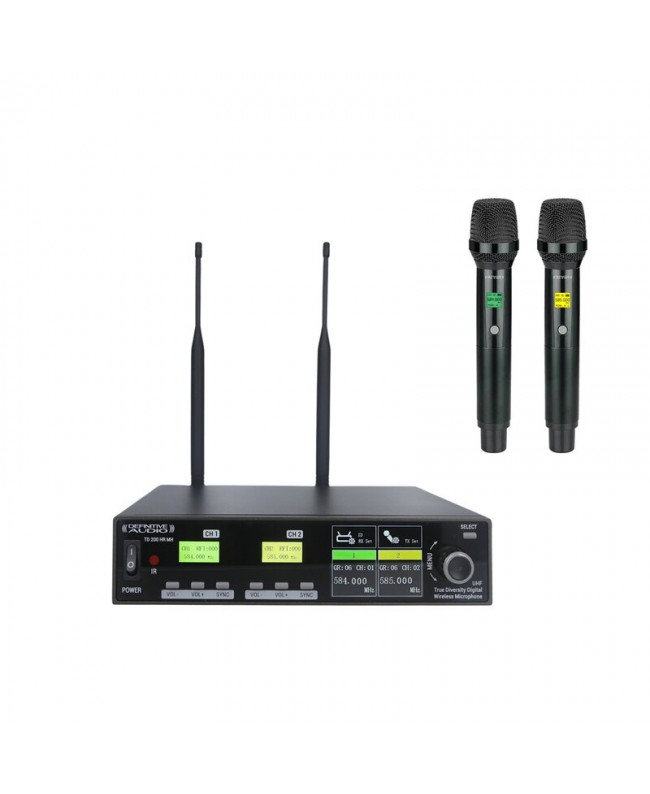

The TD 200 HR MH is a professional UHF wireless microphone system featuring a dual handheld microphone and receiver, designed for all applications requiring high stability and audio quality. Part of the True Diversity series, the receiver uses two separate antennas and a phase-locked PLL circuit to ensure stable reception, reduce interference, and maintain a clear signal even in complex RF environments.

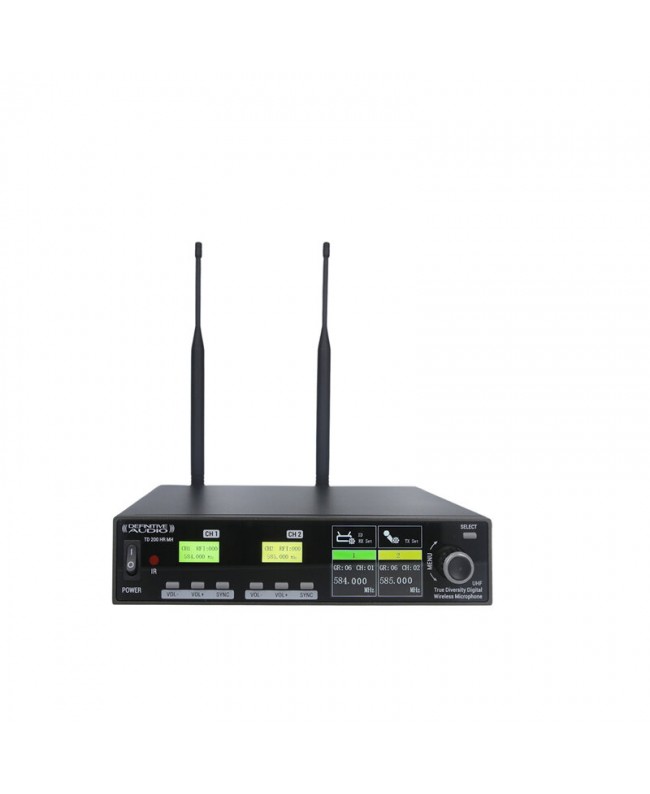

The compact half-rack format facilitates rack or mobile integration, while maintaining complete control thanks to the color LCD displays and advanced parameter adjustments available on the front panel. The system operates on the 580 - 608 MHz UHF band, features 7-band equalization, up to 2000 switchable frequencies (depending on region), and transmit power up to 30 m. W, ensuring adaptability to a variety of usage scenarios.
The balanced XLR outputs, a mix out jack, and the ACT function for infrared synchronization complete a versatile system suitable for intensive use.
User benefits
Stable reception thanks to True Diversity technology
Audio quality even in congested radio environments
7-Band equalization to optimize voice performance
Color LCD display for instant parameter adjustment
Quick synchronization via infrared ACT function
Areas of use
Live events
Conferences and corporate meetings
Places of worship
Theaters, auditoriums, and multipurpose rooms
Services
Rental companies
Technical characteristics
Handheld radiomicrophones
Oscillation mode: PLL Phase Locked Loop frequency synthesis
Pickup gain: fixed
Transmission power: up to 30 mW (depending on region)
Current consumption: 130 mA
Display: color LCD
Microphone capsule: cardioid
Receiver
Reception channel: dual channel
Oscillation mode: Phase Locked Loop frequency synthesis
Modulation mode: FM modulation
RF sensitivity: input 6 dBμV, S/N 80 dB
Working range: 60 m linear distance (actual range depends on RF absorption, reflection and interference)
Silent control mode: audio code and noise lock
Frequency response: 50 Hz - 18 kHz (+-3 dB)
THD: 0.5% at 1 kHz
Panel display: LCD + LED
System features
UHF frequency range: 580 - 608 MHz
Equalization: 7-band adjustable EQ
Max. transmission power: 13 dBm (depending on region)
Antenna distribution system: integrated, reduces mutual radiation interference
Frequency group design: multiple predefined groups compatible with usage frequencies
Tuning bandwidth: up to 50 MHz for up to 2000 switchable frequencies (depending on region)

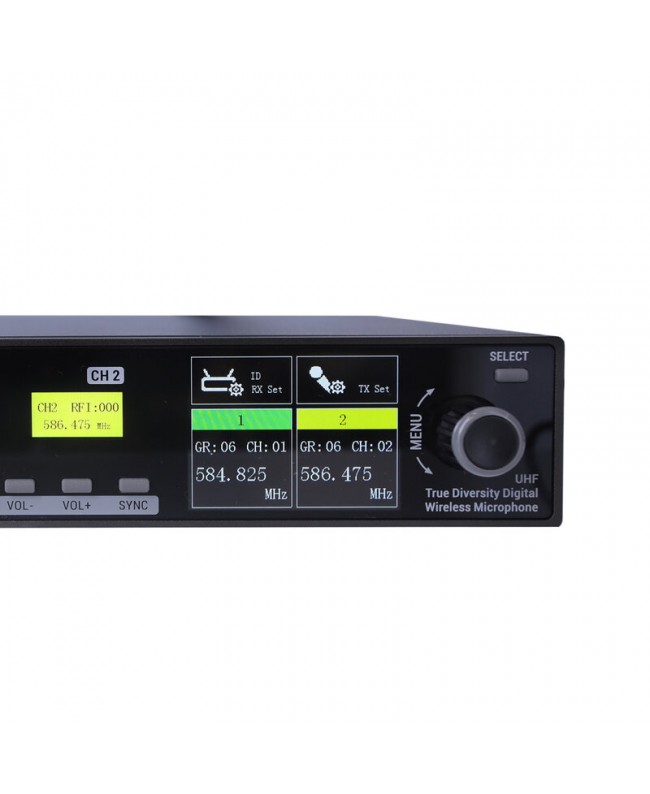

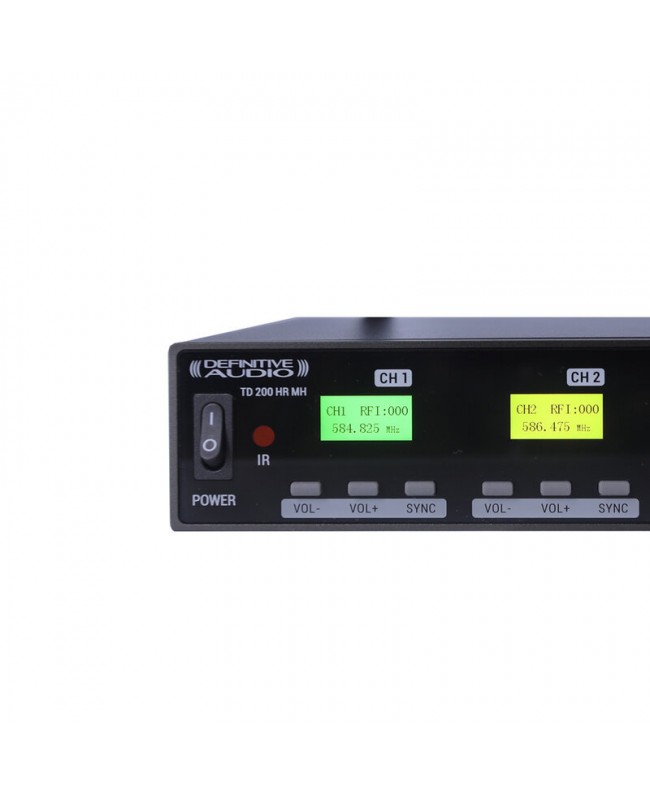

Displays: 2 color LCD screens
Sub-display background color: adjustable, transmitter display color can match receiver
Main and sub-channels: 1 main control + 2 sub-channels with color LCD
Rack format: 1U
Rack ears: included
Antenna bases: 2
Antenna type: 2 separate antennas for improved reception

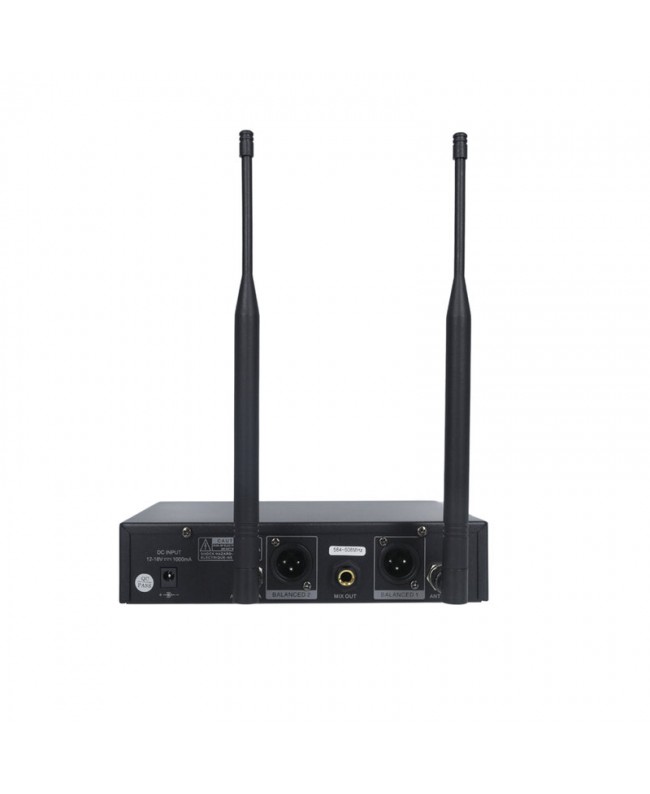

Outputs: 2 balanced XLR outputs
Mix output: balanced jack mix out
ACT function: wireless transmitter synchronization via infrared interface
Frequency response: 50 Hz - 16 kHz (flat response)
