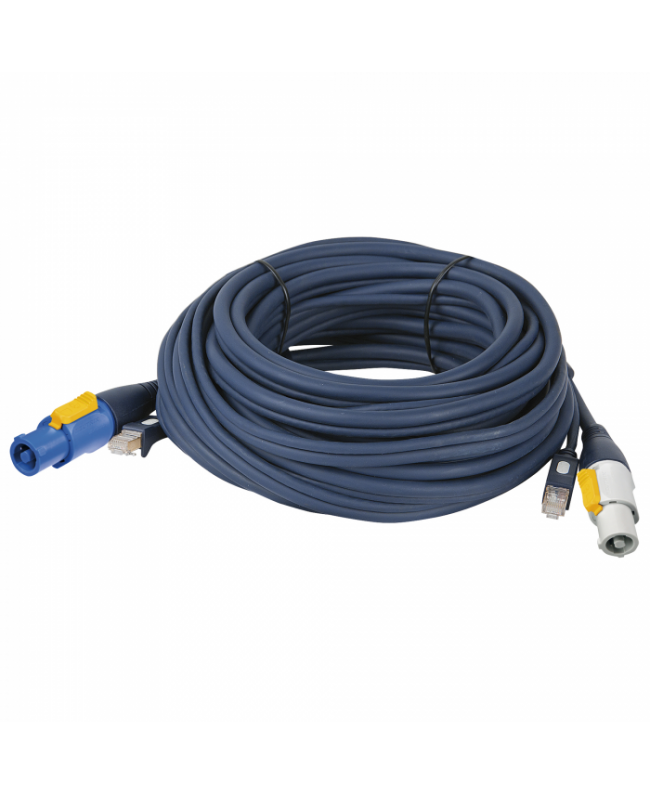

DAP powerCON/RJ45 1,5m Hybrid Cables Power & Data Signal

DAP powerCON/RJ45 1,5m

€42.00
Tax included

powerCON/RJ45 - Data / Power 1,5m

Qty

In Stock

Delivery

Do You want Your order by Thursday, 28/08/2025? Order within 14 hours and 13 minutes

Compare

wishlist

DAP powerCON/RJ45 1,5m



powerCON data extension cables are the ideal solution for quick and easy connection of multiple Showtec LED light effects and strips or DMT LED screens. No more separate power and data cables, no more cable mess. The powerCON data extension cables are available in different lengths so you will always find the length you need to connect your devices without having too much cable length left. There are three different variations of the powerCON extension cable: XLR, RJ45 or etherCON data connectors. Check also the DAP prefab power signal cables. (FP0410, FP0510, FP0610, FP0810, FP0910, FP1010)

Electrical Specifications and Connections

  • Rated Current (A) 16 A
  • Flashover Voltage 250 V
  • Impedance 100 Ω
  • Connector 1 powerCON Grey
  • Connector 2 powerCON Blue
  • Data Connector In RJ45
  • Data Connector Out RJ45
  • Brand Connector 1 Neutrik
  • Cable Length 1.50 m
  • Pins ( power ) 3
  • Pins ( data ) 8
  • Conductor Resistance 78 Ω/km (125.53 Ω/mile)
  • Outer Cable Diameter 8 mm (0.315″)

Mechanical Specifications

  • Weight 0.194 kg (0.428 lb)
  • IP Rating IP20 (indoor use only)
  • Material PVC
  • Colour Blue

Product Properties

  • Contact Type Gold plated

Thermal Specifications

  • Maximum Ambient Temperature 60 °C (140 °F)
  • Minimum Ambient Temperature -30 °C (-22 °F)

90486

Data sheet

Length
1.50 m
Giorni di elaborazione
3

Specific References
