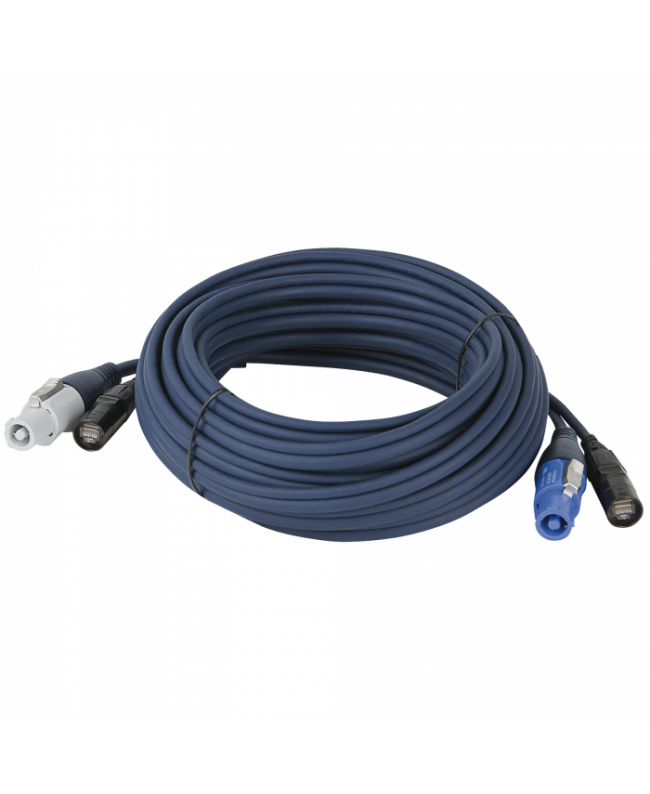

DAP Neutrik powerCON/etherCON Extension cable 6m

Specs

Electrical Specifications and Connections

• Rated Current (A) 16 A
• Flashover Voltage 250 V
• Impedance 100 Ω
• Connector 1 powerCON Grey
• Connector 2 powerCON Blue
• Data Connector In etherCON
• Data Connector Out etherCON
• Brand Connector 1 Neutrik
• Cable Length 6 m
• Pins ( power ) 3
• Pins ( data ) 8
• Conductor Resistance 78 Ω/km (125.53 Ω/mile)
• Outer Cable Diameter 8 mm (0.315″)

Mechanical Specifications

• Weight 0.31 kg (0.683 lb)
• IP Rating IP20 (indoor use only)
• Material PVC
• Colour Blue

Product Properties

• Contact Type
• Gold plated

Thermal Specifications

• Maximum Ambient Temperature 60 °C (140 °F)
• Minimum Ambient Temperature -30 °C (-22 °F)
