PROLIGHTS Mosaico XL+ Image Projectors

PROLIGHTS Mosaico XL+

€7,504.00
Tax included

Extremely powerful outdoor LED image projector for long-range projection

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 15/07/2026? Order within 2 hours and 3 minutes

Free shipping

Compare

wishlist

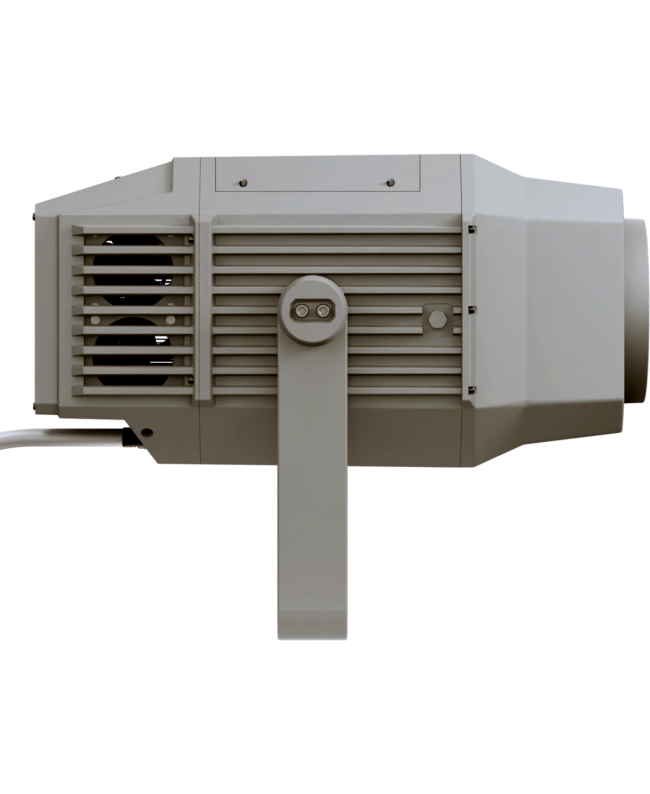

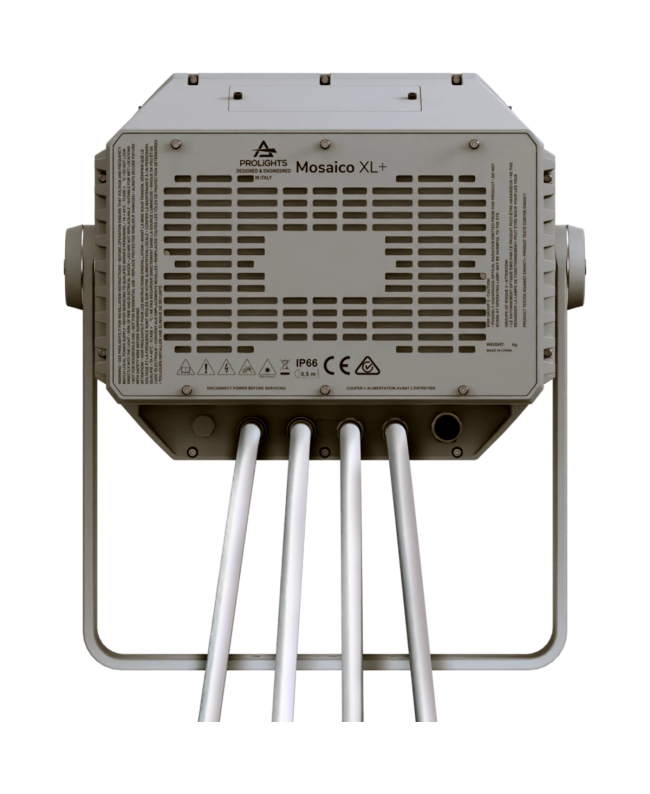

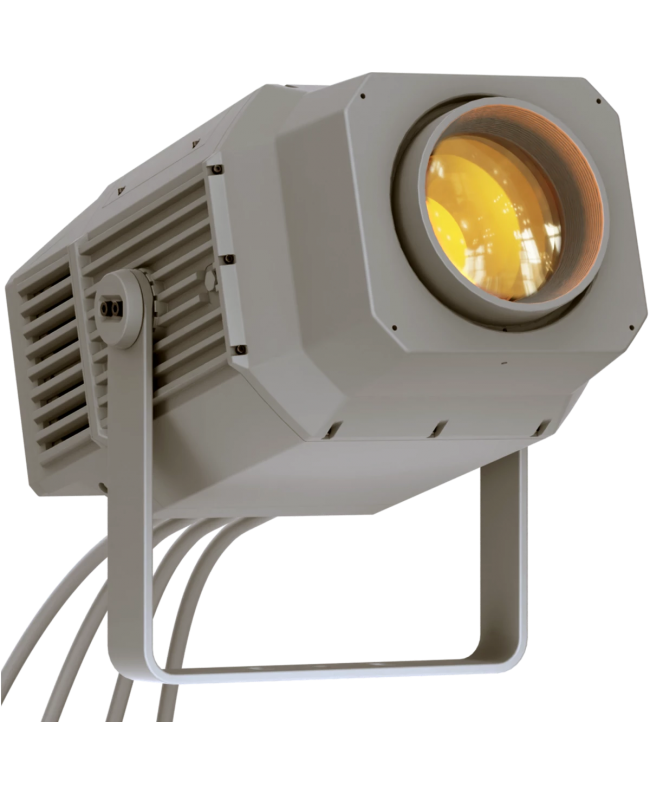

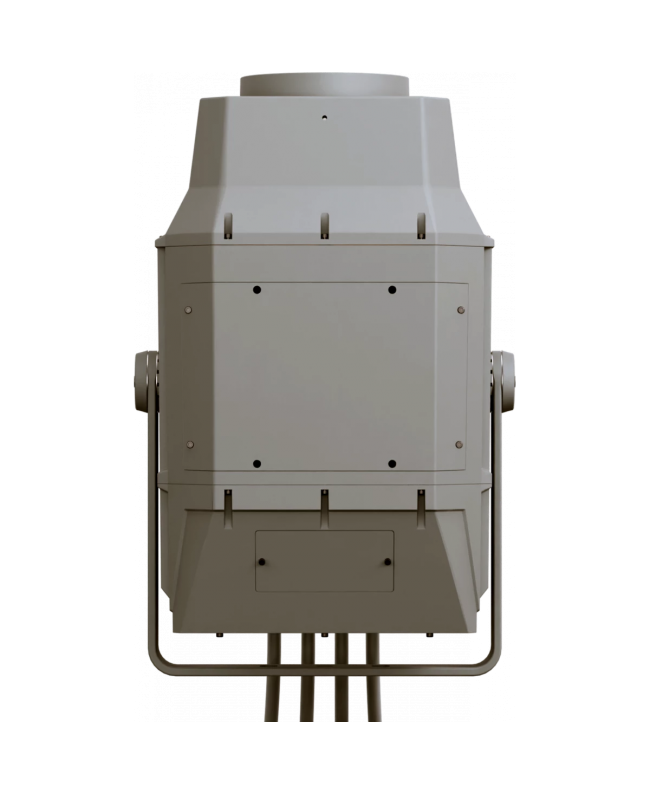

PROLIGHTS Mosaico XL+



Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23'600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.

  • Key Features
  • IP66 allowing long-lasting installation with minimal maintenance
  • Equipped with 6°- 50° linear zoom system to for both near and long throw installation
  • 600W White LED engine with 6.300 K CT delivering 23'600 lumens output
  • Extensive feature set including CMY and linear CTO, shutter frame and animation wheel
  • Source: 600W high-power white LED
  • Source CCT: 6.300K
  • Source life expectancy: > 20.000 H
  • Zoom range: 6,8° - 52,1° Motorised linear zoom
  • Lens diameter: 135 mm / 5.31''
  • Lens type: High-quality glass lens optics
  • Focus: Motorised 8/16-bit
  • Colour mixing: Linear CMY
  • CCT: Linear CTO correction 3.000 K ~ 6.000 K
  • Colour wheel: Open + 6 interchangeable colour filters
  • Shutter system: 4 Shutter blades with position and 30° angle adjustment, 45° rotation of the complete framing system
  • Animation wheel: Animation wheel with CW and CCW rotation
  • Circular prism: 4-F with bi-directional rotation, indexing
  • Frost: Dual soft-edge and heavy
  • Iris: 5 ~ 100% Motorised iris
  • Rotating gobos: 7 Rotating gobos + open, interchangeable, indexing
  • Gobo size (BW): Outer: 26,9 mm - image: 20,5 mm
  • Gobo size (Color): Outer: 26,9 mm - image: 20,5 mm
  • Supported Protocols: DMX512, RDM, CRMX + WDMX
  • DMX channels: 28 / 30 / 35 / 44Ch
  • RDM: For remote addressing and parameter configuration

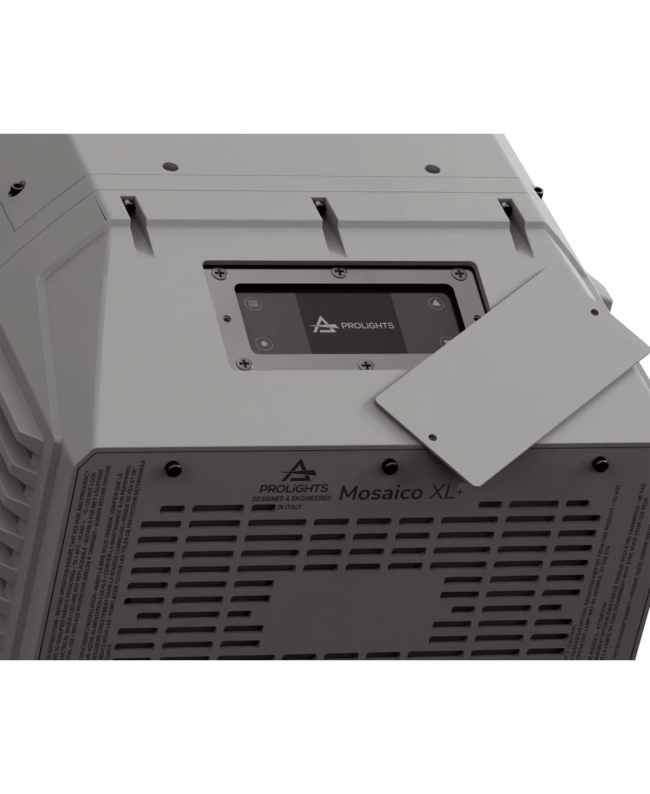

  • Display: Black OLED touch display
  • Stand Alone: Stand Alone programmer and playback
  • Master/Slave: For synchronised operation of more units linked in a chain
  • Dimmer: Linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 Selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: Included, self-charging battery backup
  • Selectable PWM: 600 To 40000 Hz (selectable steps)
  • Firmware upgrade: Via DMX with UPBOXPRO/UPBOX1 (not included)
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Wireless Connection: Integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Adaptors: XLR and BARE END 16A adaptors included
  • Mains power supply: 100-240 V - 50/60Hz
  • Max power consumption (230 V): 680W
  • Output (at 230 V): 4 Units on a single power line
  • Standby power: 58,7 W
  • Power factor: >0,96
  • IP rating: IP66 for outdoor installations
  • IK rating: IK09 impact rating
  • Cooling: Heat pipe with low-noise fan
  • Housing: Sturdy die-cast aluminium body, scratch-resistant C5 M Marine Grade paint (as standard)
  • Finish: Grey (RAL 9006)
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 403 X 462 x 565 mm / 15.87''x18.19''x22.24''
  • Weight: 35,5 kg / 78.26lbs
  • Suspension and fixing: Bracket for hanging and positioning
  • Hardware on-board: Ancor points on the front for accessory mounting
  • Other: Inspectable cover window for gobos replacement and maintenance and record scenes and create chases and shows throughout these scenes
  • Compliance: CE, RCM, FCC, cTUVus

MOSAICOXLPLUS
