Rondson MX-404

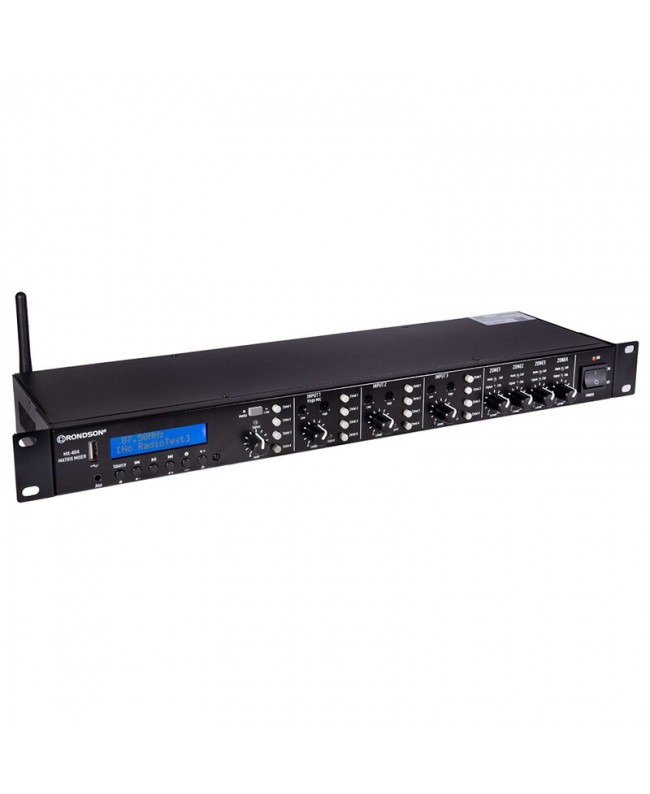

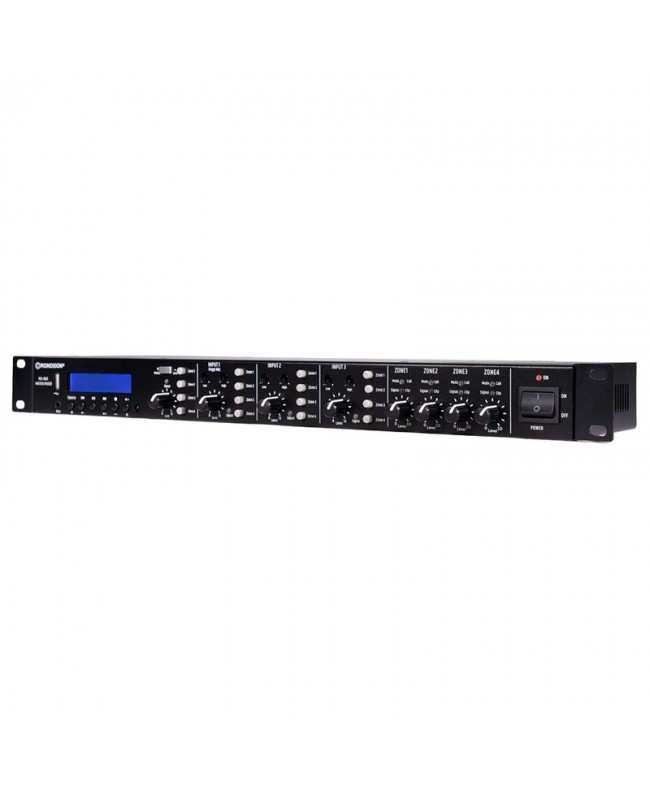

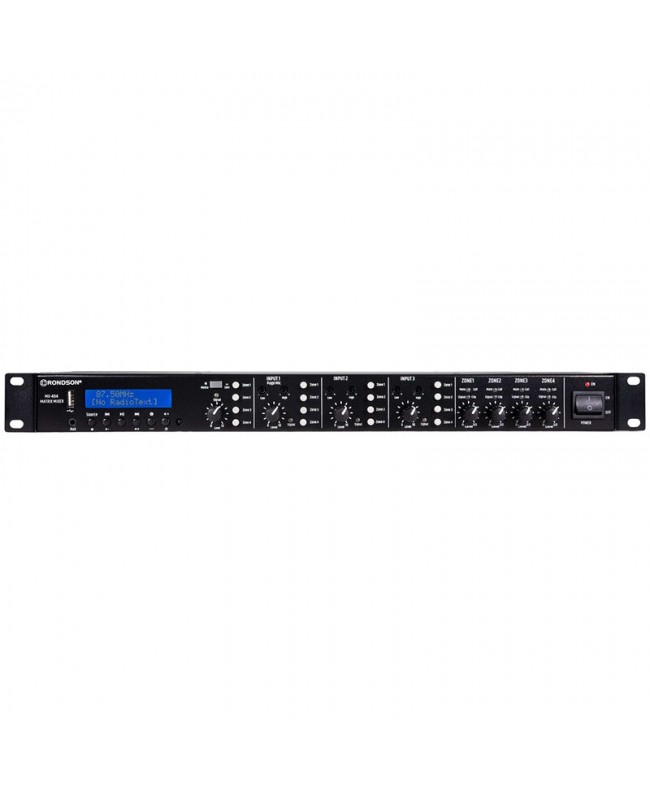

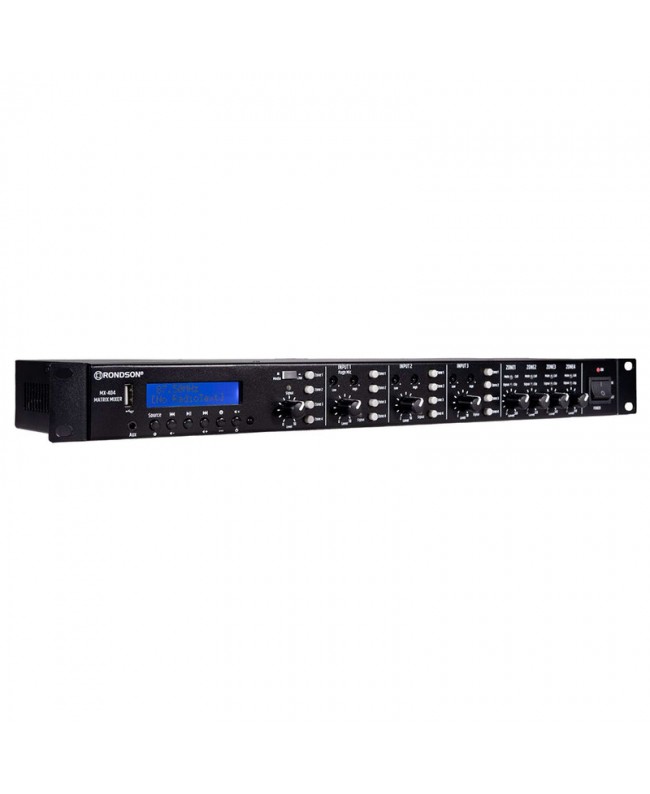

The MX-404 is a 4-channel matrix preamplifier (4 inputs and 4 outputs) designed to manage up to four audio zones independently.

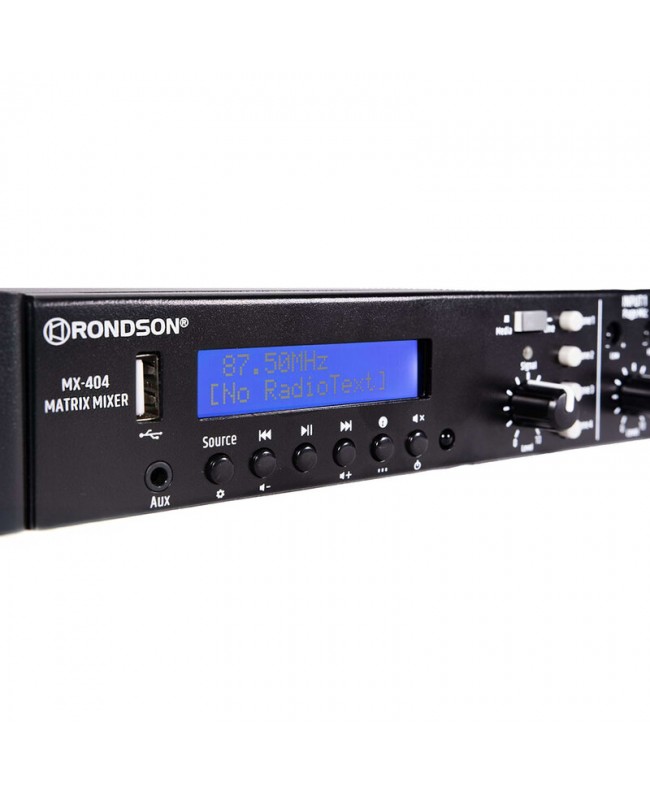

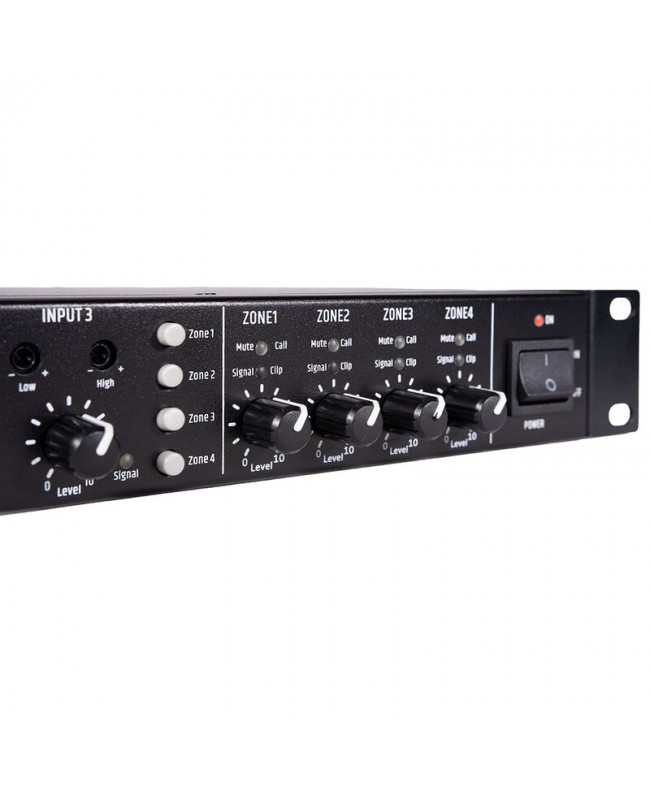

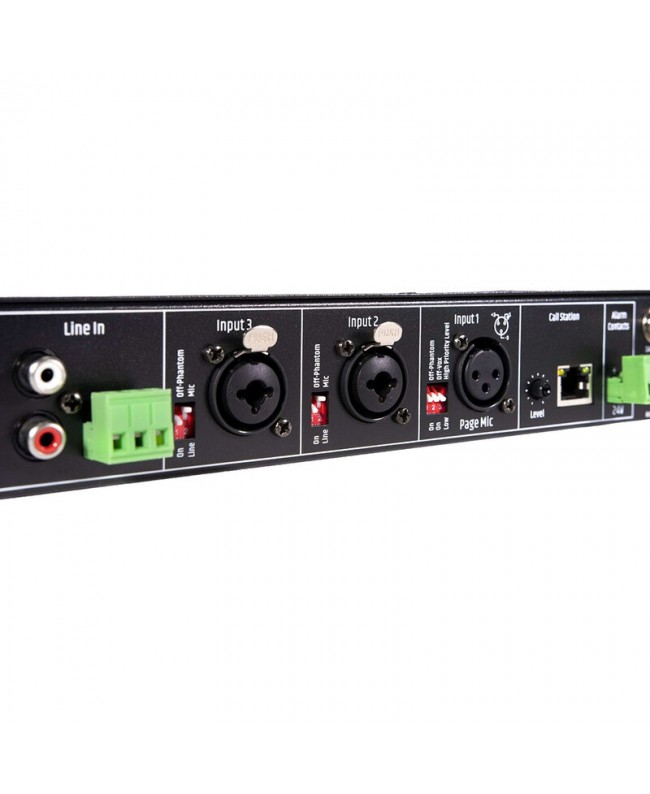

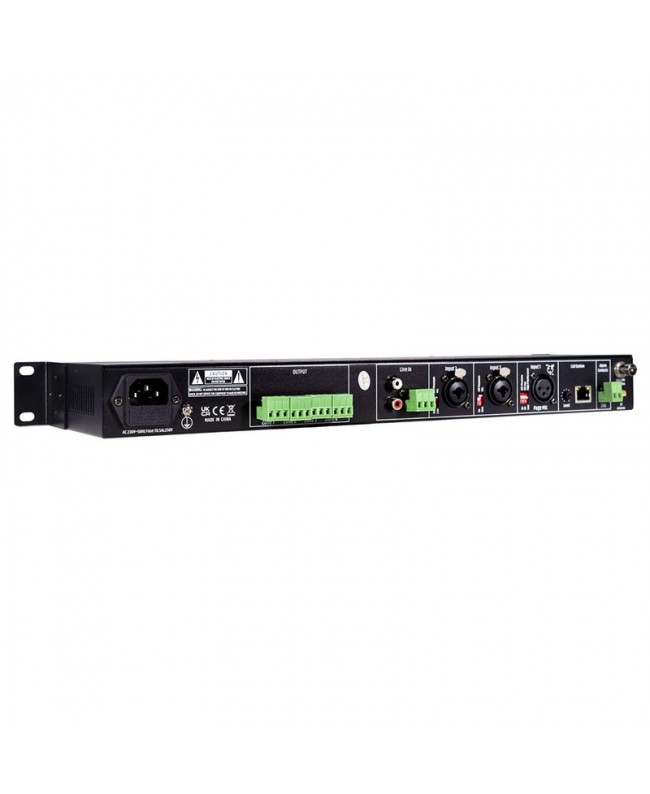

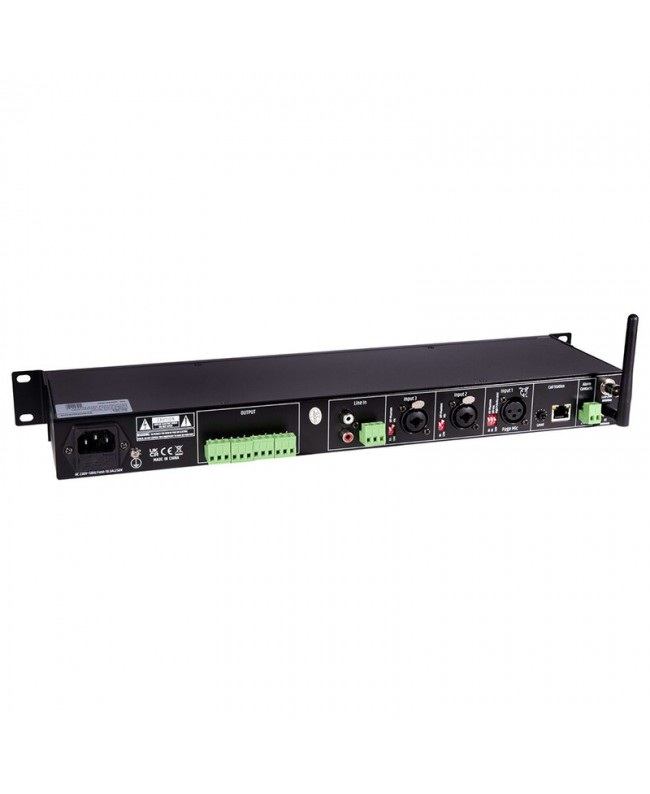

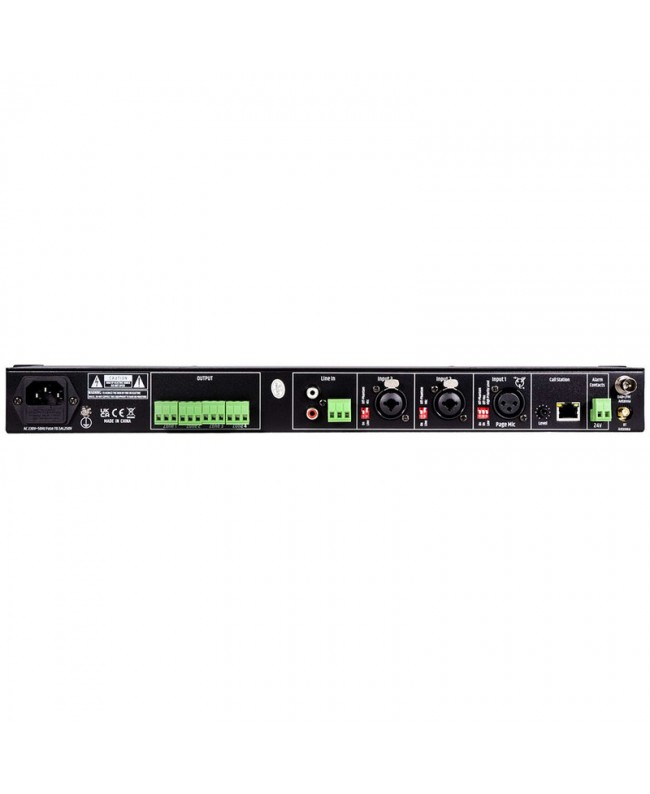

It has four inputs routable to four outputs, each with individual volume control and level indicator. The inputs include two XLR / 6.35 mm jack Combo configurable as microphone or line with Phantom power, an XLR microphone input (Input1), a stereo RCA / Euroblock line input and a front AUX input with 3.5 mm mini-jack connector. The 4 line outputs are on Euroblock connector. It features a built-in media player with FM / DAB radio, USB port and Bluetooth connectivity. There is also an RJ45 connector for connection to a Call Station and a 24 V alarm contact.

The power supply is flexible, supporting both 115 - 230 VAC alternating current and 24 VDC direct current. Its compact size (1U rack) and low weight make it practical to install. Audio quality is guaranteed by a total harmonic distortion of less than 0.03% and a S/N ratio of more than 75 d. B for microphones and 85 d. B for line and AUX.

• Users benefits
• Possibility of being used in multi-area environments thanks to the independent management of 4 audio zones
• Wide connectivity
• Integrated multimedia player with FM / DAB radio, USB and Bluetooth
• Power supply both in alternating current at 230 V and in direct current at 24 V
• High audio performance
• Areas of use
• Hotels
• Conference rooms
• Schools
• Sports centers
